63A06R-S45SE09F-C
63A06R-S45SE09F-C
63A06R-S45SE09F-C

63A06R-S45SE09F-C

UGC DOR6761702
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$923.00 CAD - $923.00 CAD
$923.00 CAD
$923.00 CAD - $923.00 CAD
$923.00 CAD

Vendu en lots de : 1

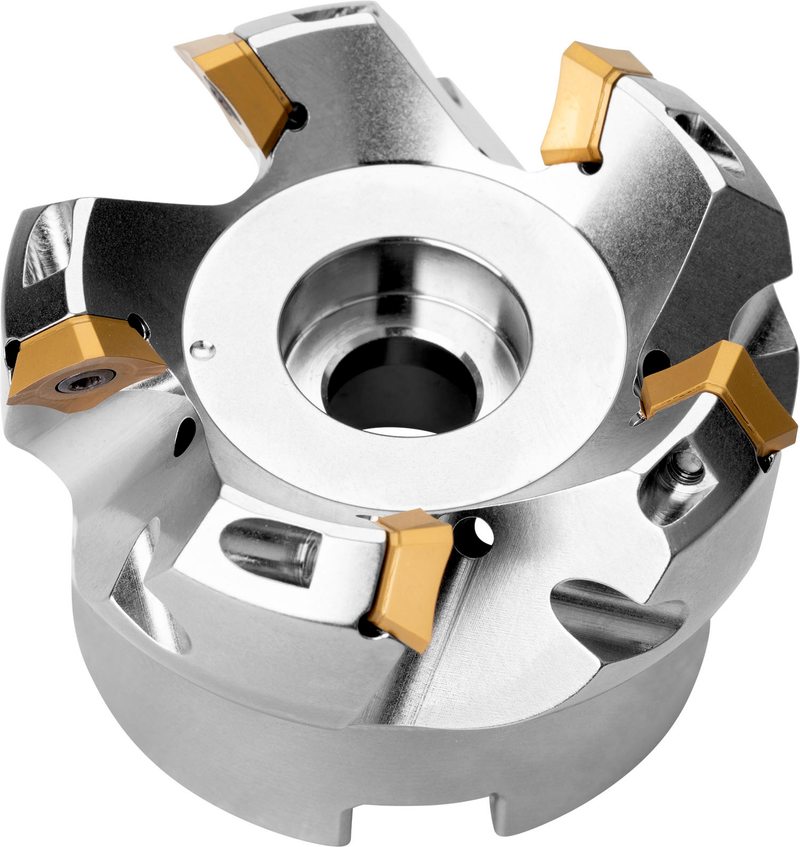

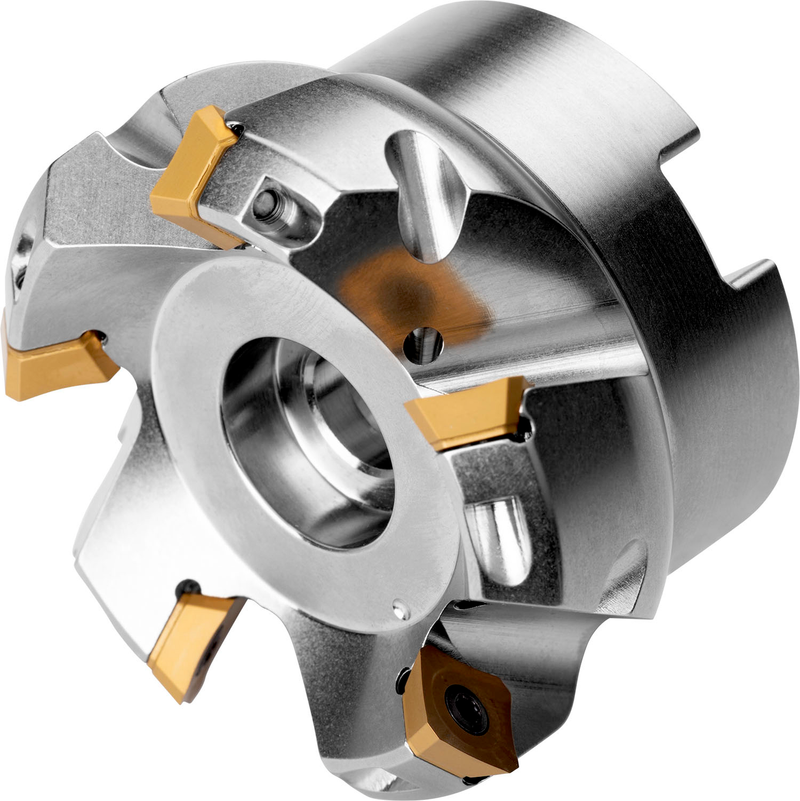

Fraise à surfacer avec géométrie positive/négative qui utilise 6 plaquettes simple face SEET 09T3AF... ou SEMT 09T3AF..., diamètre de coupe de 63 à 75,8 mm maximum avec un angle d'attaque de 45° et un alésage de connexion de 22 mm selon DIN 8030-A, longueur en porte-à-faux de 40 mm, arrosage central et pas différentiel pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 4,5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A06R-S45SE09F-C
Product Number6761702
Product FamilySSE09
Insert Geometry
Depth of Cut Max — mm (APMX)4.5 mm

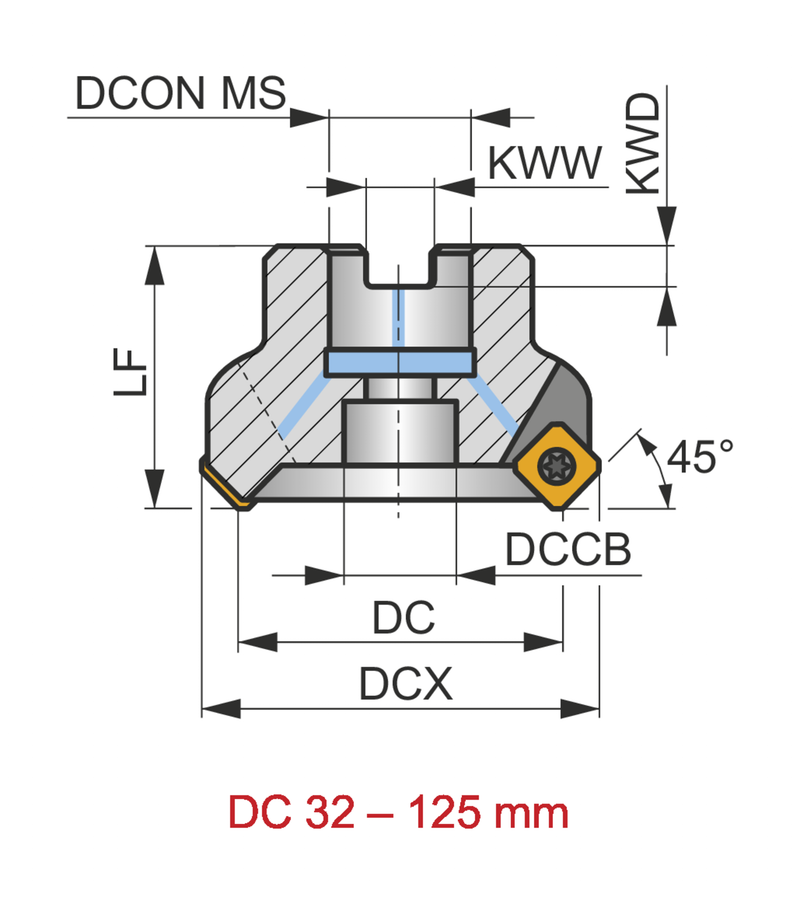

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSSE09
ShankFraise en bout DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761702
EAN3603602970480
File Type Download
63A06R-S45SE09F-C — 3D Model STP Download
63A06R-S45SE09F-C — 2D Model DXF Download
63A06R-S45SE09F-C — Line Drawing PDF Download
