16K3R060B20-CXP16
16K3R060B20-CXP16
16K3R060B20-CXP16

16K3R060B20-CXP16

UGC DOR6761727
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$639.00 CAD - $639.00 CAD
$639.00 CAD
$639.00 CAD - $639.00 CAD
$639.00 CAD

Vendu en lots de : 1

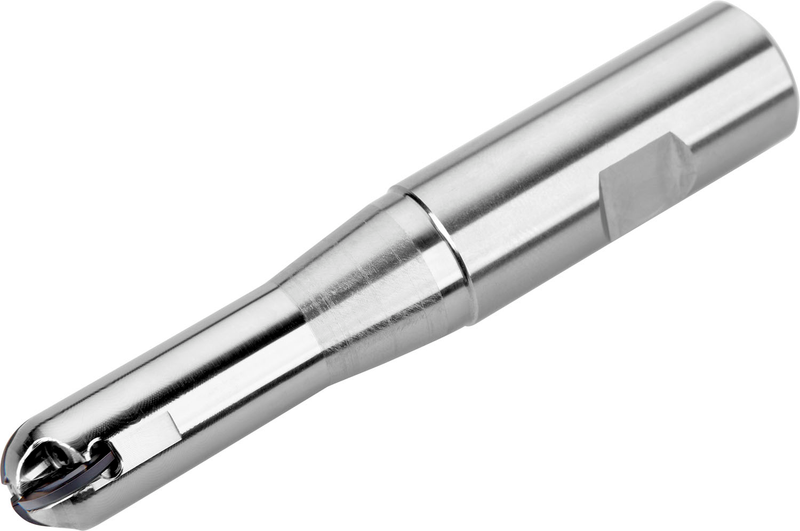

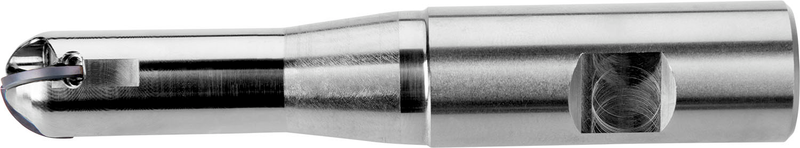

Fraise à copier à double géométrie négative utilisant 3 inserts simple face XP 16.., diamètre de coupe 16 mm avec queue Weldon de 20 mm selon DIN 1835B, longueur fonctionnelle 60 mm et longueur totale 111 mm pour le fraisage par copiage avec une profondeur de coupe maximale de 8 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)16K3R060B20-CXP16
Product Number6761727
Product FamilyK3-CXP

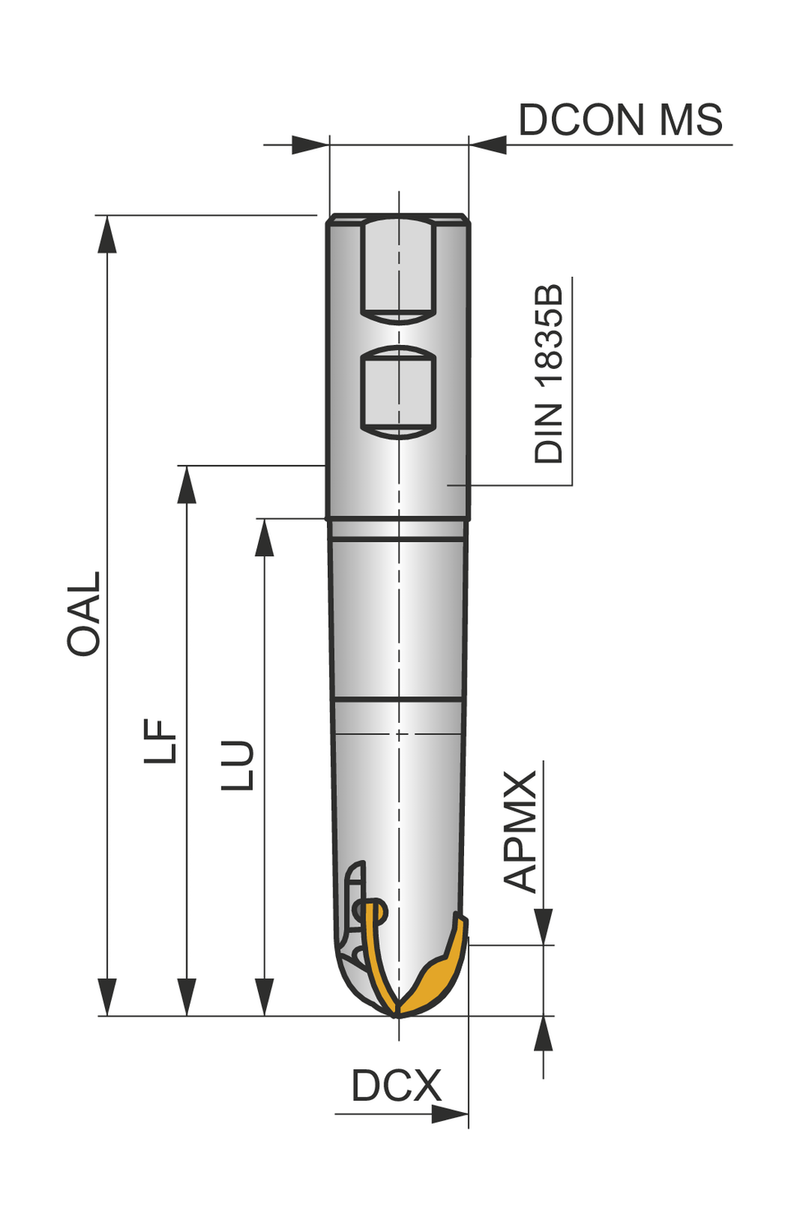

Insert Geometry
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Overall Length — in (OAL)4.37"
Overall Length — mm (OAL)111.0 mm
Usable Length — mm (LU)60.0 mm
Functional Length — mm (LF)86.5 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignK3-CXP
ShankQueue Weldon DIN 1835B
Reference Numbers
EDP Number6761727
EAN3603602970732
File Type Download
16K3R060B20-CXP16 — 3D Model STP Download
16K3R060B20-CXP16 — 2D Model DXF Download
16K3R060B20-CXP16 — Line Drawing PDF Download
