20K3R060A25-CXP20
20K3R060A25-CXP20
20K3R060A25-CXP20

20K3R060A25-CXP20

UGC DOR6761729
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$677.00 CAD - $677.00 CAD
$677.00 CAD
$677.00 CAD - $677.00 CAD
$677.00 CAD

Vendu en lots de : 1

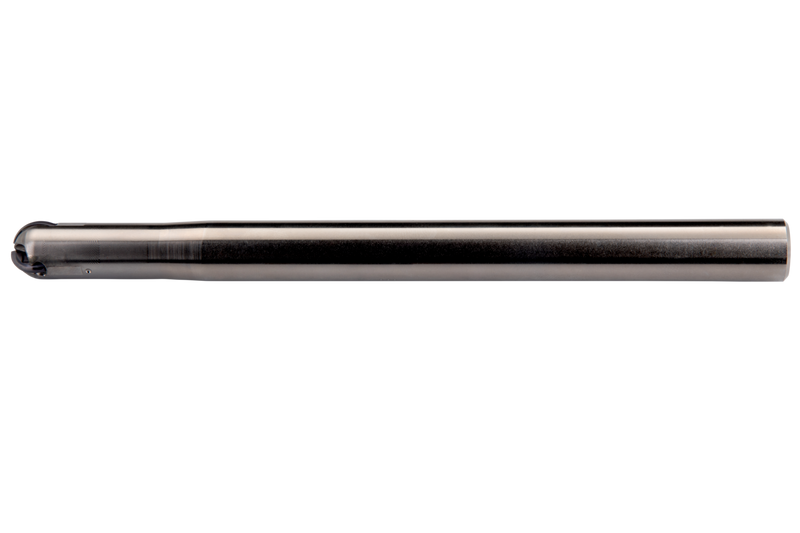

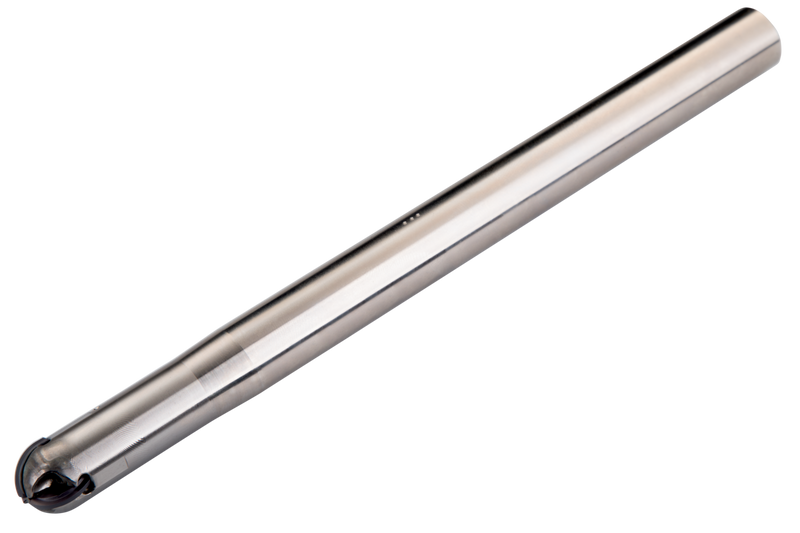

Fraise à copier avec géométrie double négative utilisant 3 plaquettes simple face XP 20.., diamètre de coupe 20mm avec queue cylindrique 25mm selon DIN 1835A, longueur fonctionnelle 60mm et longueur totale 250mm pour fraisage en copiage avec une profondeur de coupe maximale de 10mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20K3R060A25-CXP20
Product Number6761729
Product FamilyK3-CXP
Insert Geometry
Depth of Cut Max — mm (APMX)10.0 mm

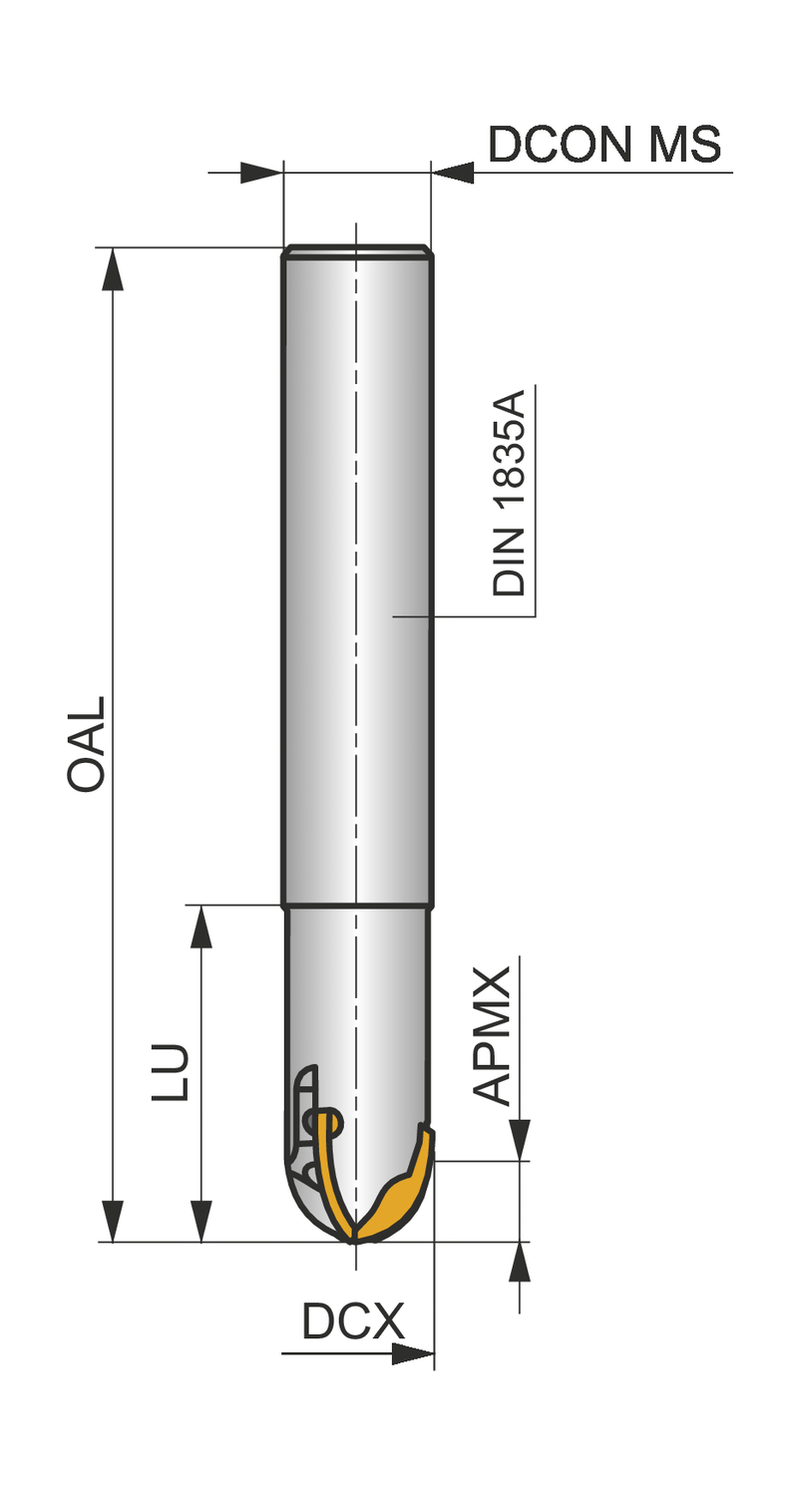

Dimensions
Overall Length — in (OAL)9.843"
Overall Length — mm (OAL)250.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignK3-CXP
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number6761729
EAN3603602970756
File Type Download
20K3R060A25-CXP20 — 3D Model STP Download
20K3R060A25-CXP20 — 2D Model DXF Download
20K3R060A25-CXP20 — Line Drawing PDF Download
