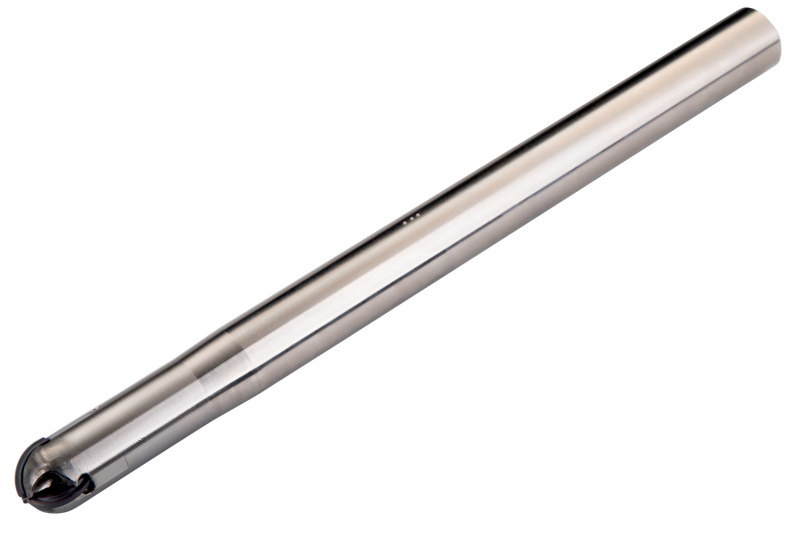

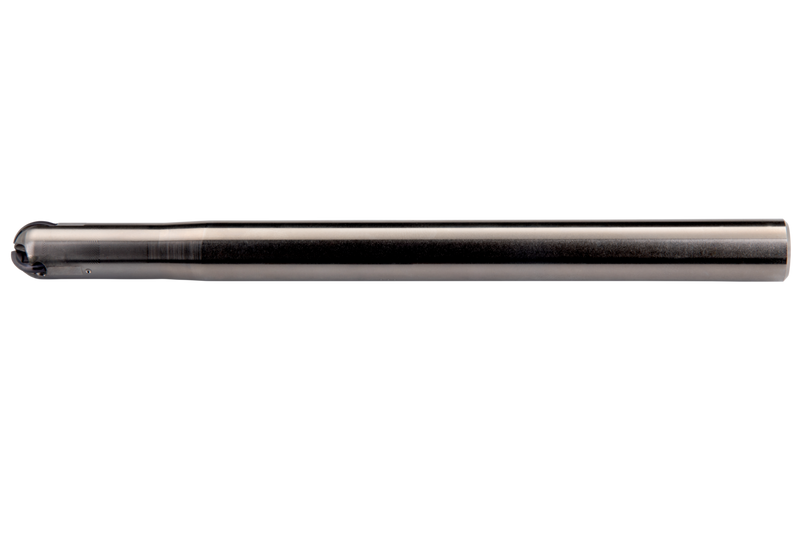

32K3R080A32-CXP32
32K3R080A32-CXP32
32K3R080A32-CXP32

32K3R080A32-CXP32

UGC DOR6761735
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$865.00 CAD - $865.00 CAD
$865.00 CAD
$865.00 CAD - $865.00 CAD
$865.00 CAD

Vendu en lots de : 1

Fraise à copier avec géométrie double négative qui utilise 3 plaquettes simple face XP 32.., diamètre de coupe 32mm avec queue cylindrique de 32mm selon DIN 1835A, longueur fonctionnelle 80mm et longueur totale 250mm pour fraisage à copier avec une profondeur de coupe maximale de 16mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32K3R080A32-CXP32
Product Number6761735
Product FamilyK3-CXP
Insert Geometry
Depth of Cut Max — mm (APMX)16.0 mm

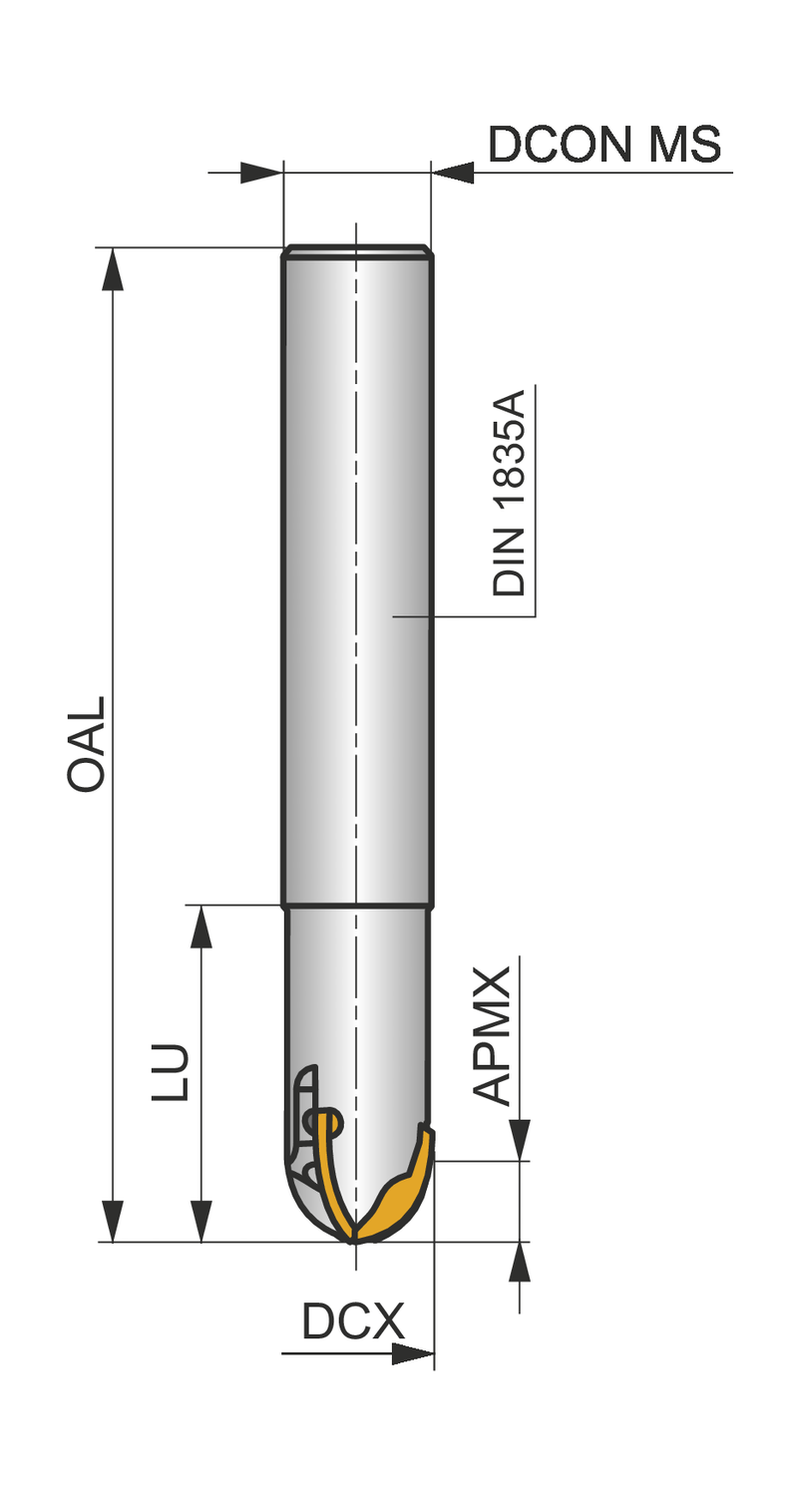

Dimensions
Overall Length — in (OAL)9.843"
Overall Length — mm (OAL)250.0 mm
Usable Length — mm (LU)80.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignK3-CXP
ShankQueue cylindrique DIN 1835A
Reference Numbers
EDP Number6761735
EAN3603602970817
File Type Download
32K3R080A32-CXP32 — Line Drawing PDF Download
