40J4R090H40-CSD12X44
40J4R090H40-CSD12X44
40J4R090H40-CSD12X44

40J4R090H40-CSD12X44

UGC DOR6761737
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,377.00 CAD - $2,377.00 CAD
$2,377.00 CAD
$2,377.00 CAD - $2,377.00 CAD
$2,377.00 CAD

Vendu en lots de : 1

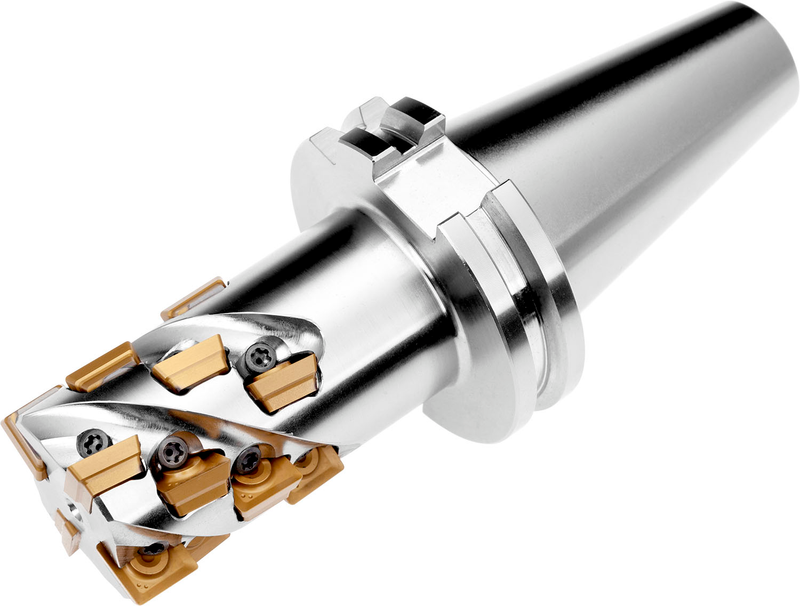

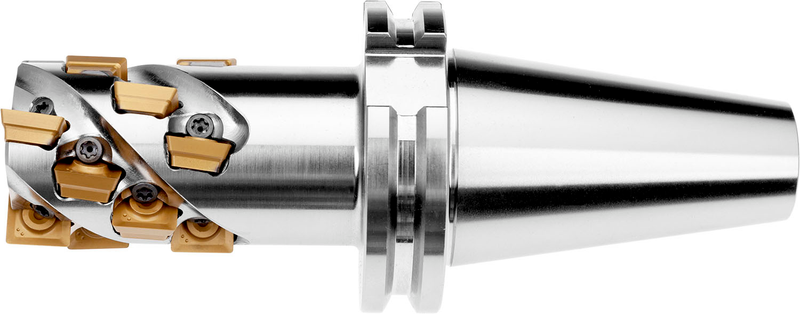

Fraise à épaule à queue avec géométrie positive/négative qui utilise 16 plaquettes unilatérales SDGX 1205.. ou SDMX 1205.., diamètre de coupe 40 mm avec angle d'attaque de 90° et cône SK 40 selon ISO/DIS 7388-1, longueur fonctionnelle de 70 mm et longueur totale de 158,4 mm pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 44,1 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40J4R090H40-CSD12X44
Product Number6761737
Product FamilyJ(T)-CSD12X
Insert Geometry
Depth of Cut Max — mm (APMX)44.1 mm

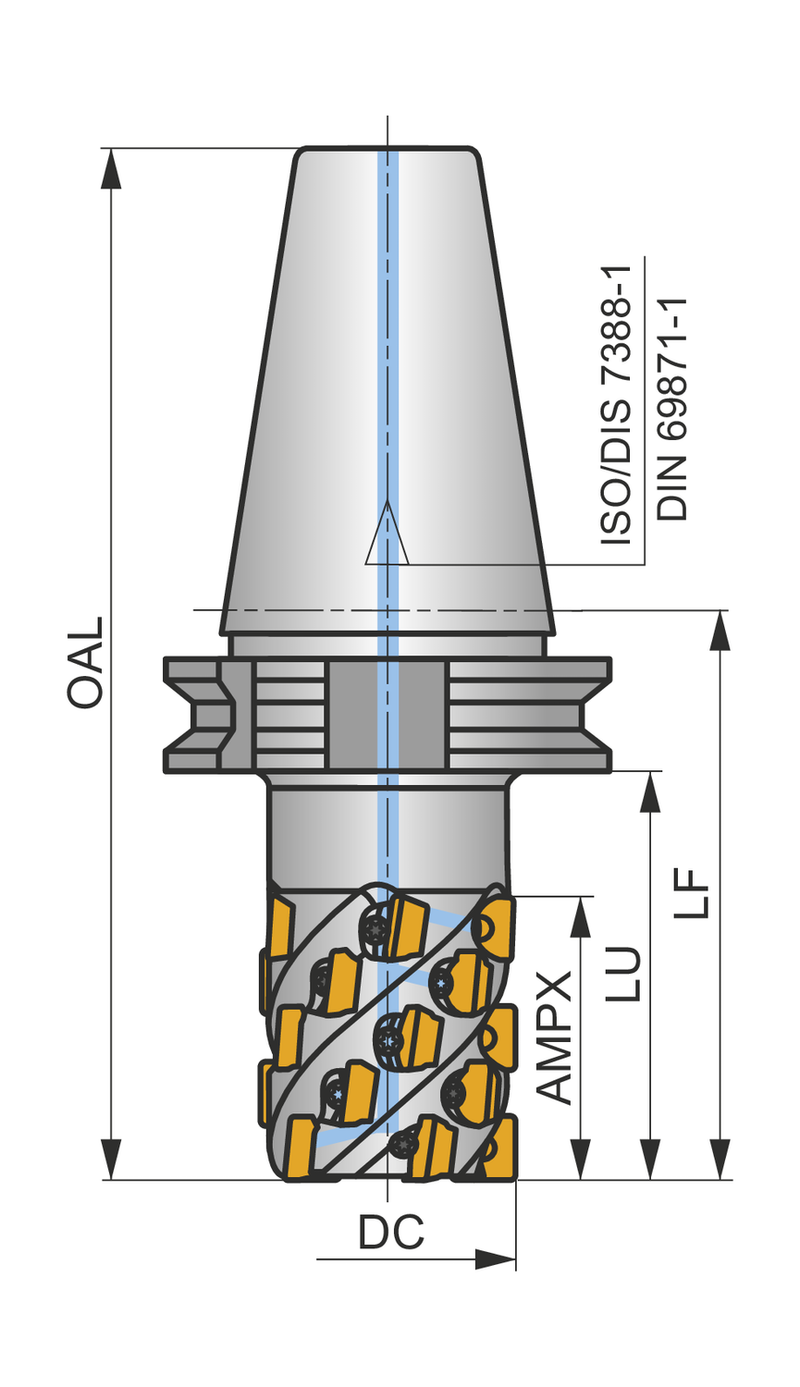

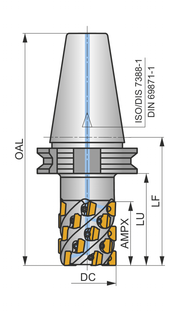

Dimensions
Cutting Diameter — in (DC)1.575"
Cutting Diameter — mm (DC)40.0 mm
Overall Length — in (OAL)6.236"
Overall Length — mm (OAL)158.4 mm
Usable Length — mm (LU)70.0 mm
Functional Length — mm (LF)90.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-CSD12X
ShankBroche DIN 69871-1
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761737
EAN3603602970831
File Type Download
40J4R090H40-CSD12X44 — 3D Model STP Download
40J4R090H40-CSD12X44 — 2D Model DXF Download
40J4R090H40-CSD12X44 — Line Drawing PDF Download
