50T05R-C90SD12X55
50T05R-C90SD12X55
50T05R-C90SD12X55

50T05R-C90SD12X55

UGC DOR6761739
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,212.00 CAD - $2,212.00 CAD
$2,212.00 CAD
$2,212.00 CAD - $2,212.00 CAD
$2,212.00 CAD

Vendu en lots de : 1

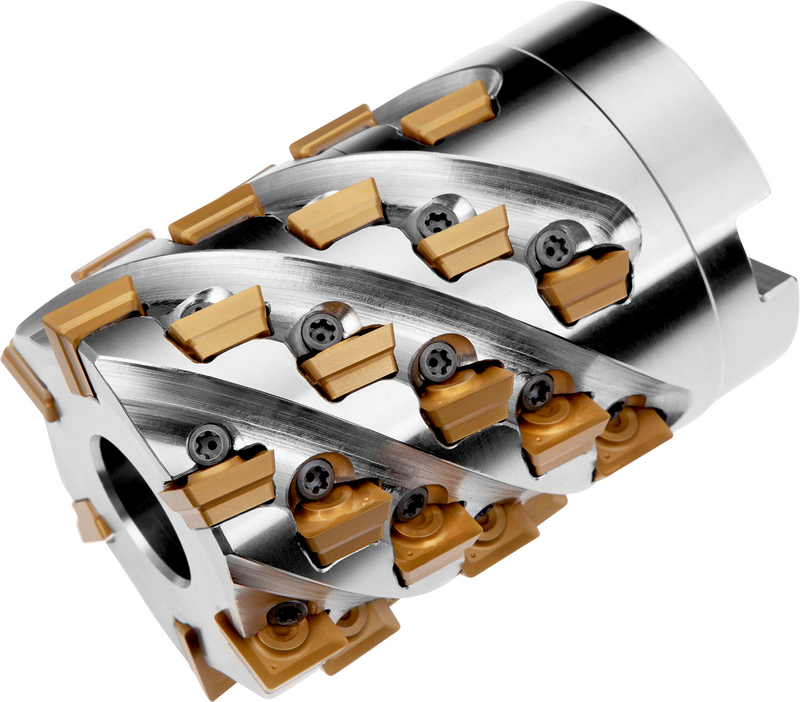

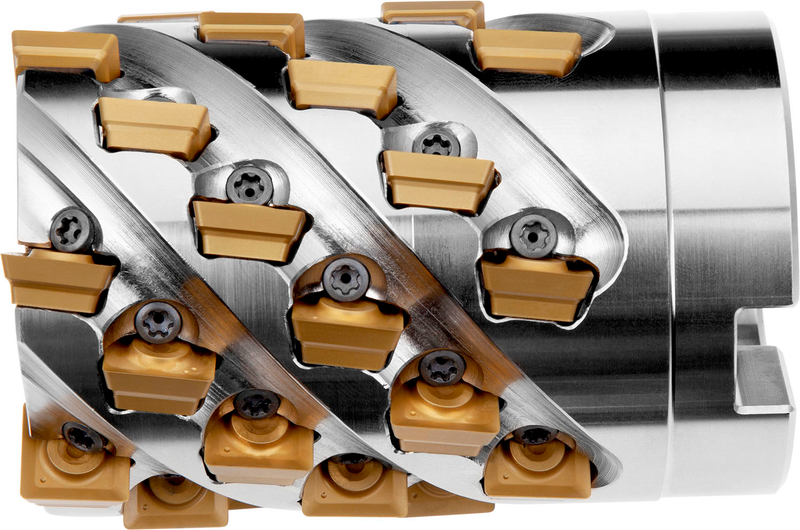

Fraise à épaulement à queue avec géométrie positive/négative qui utilise 25 plaquettes unilatérales SDGX 12 ou SDMX 12, diamètre de coupe 50 mm avec angle d'attaque de 90° et alésage de connexion de 22 mm selon DIN 8030, longueur de saillie de 78 mm pour le fraisage d'épaulements profonds et le fraisage de gorges profondes avec une profondeur de coupe maximale de 54,9 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50T05R-C90SD12X55
Product Number6761739
Product FamilyJ(T)-CSD12X
Insert Geometry
Depth of Cut Max — mm (APMX)54.9 mm

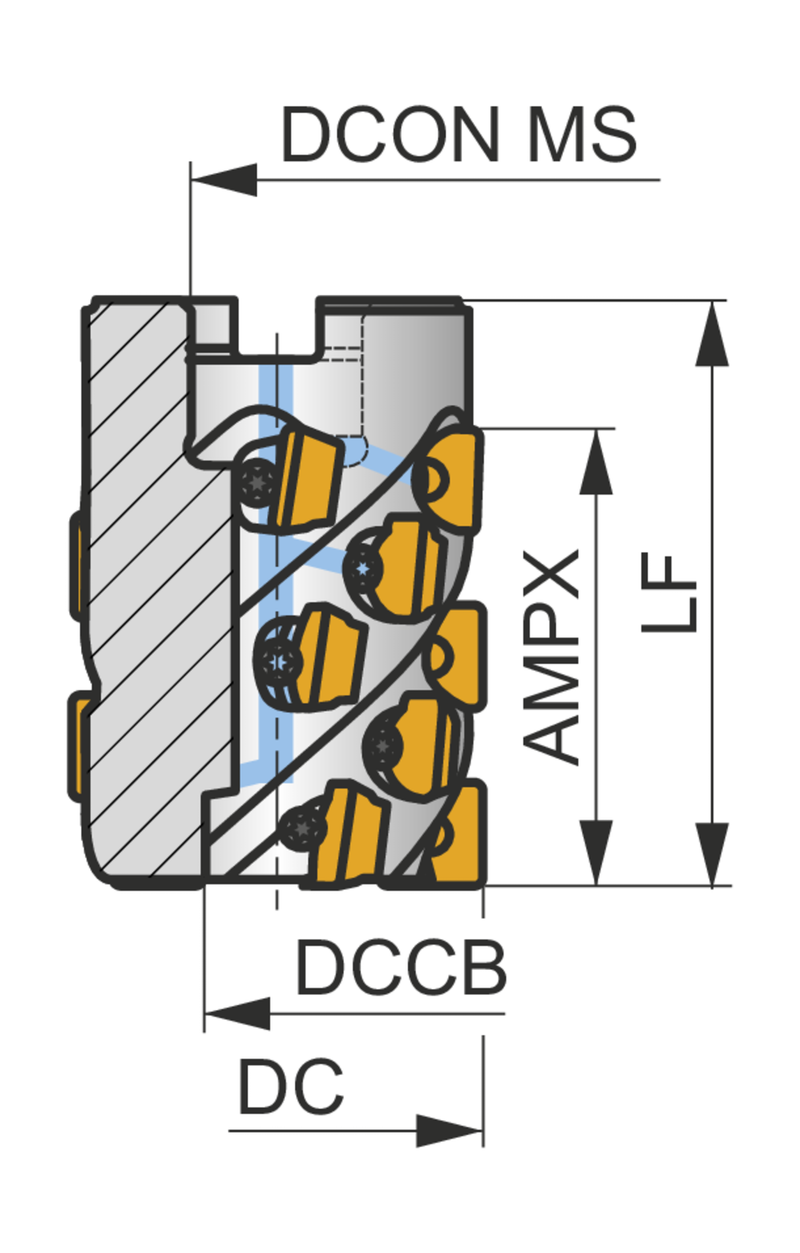

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Functional Length — mm (LF)78.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignJ(T)-CSD12X
ShankFraise cloche DIN 8030 – fraise hélicoïdale
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761739
EAN3603602970855
File Type Download
50T05R-C90SD12X55 — 3D Model STP Download
50T05R-C90SD12X55 — 2D Model DXF Download
50T05R-C90SD12X55 — Line Drawing PDF Download
