50J5R065E04-CSD12X55
50J5R065E04-CSD12X55
50J5R065E04-CSD12X55

50J5R065E04-CSD12X55

UGC DOR6761741
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,384.00 CAD - $2,384.00 CAD
$2,384.00 CAD
$2,384.00 CAD - $2,384.00 CAD
$2,384.00 CAD

Vendu en lots de : 1

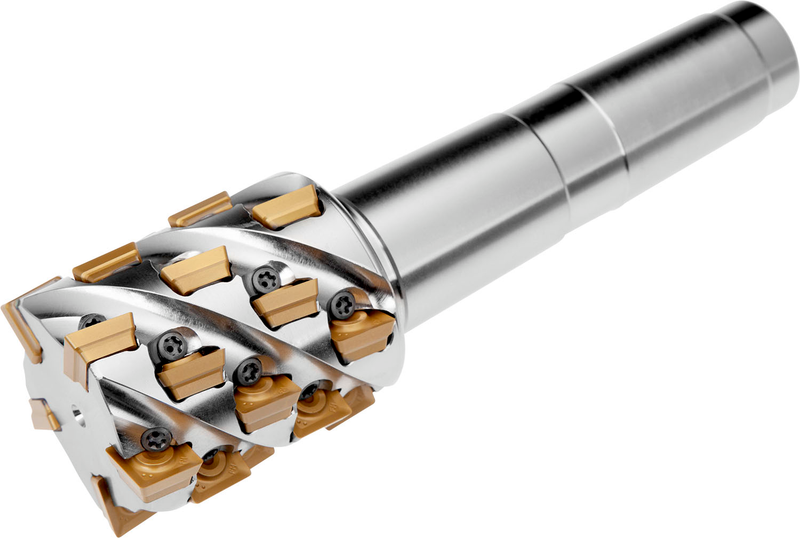

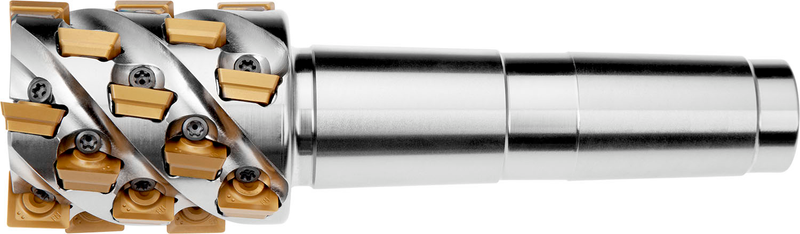

Fraise à épaulement à queue avec géométrie positive/négative utilisant 25 plaquettes unilatérales SDGX 1205.. ou SDMX 1205.., diamètre de coupe 50 mm avec un angle d'attaque de 90° et un cône morse MT 4 selon DIN 228-1A, longueur totale 167,5 mm pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 54,9 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50J5R065E04-CSD12X55
Product Number6761741
Product FamilyJ(T)-CSD12X
Insert Geometry
Depth of Cut Max — mm (APMX)54.9 mm

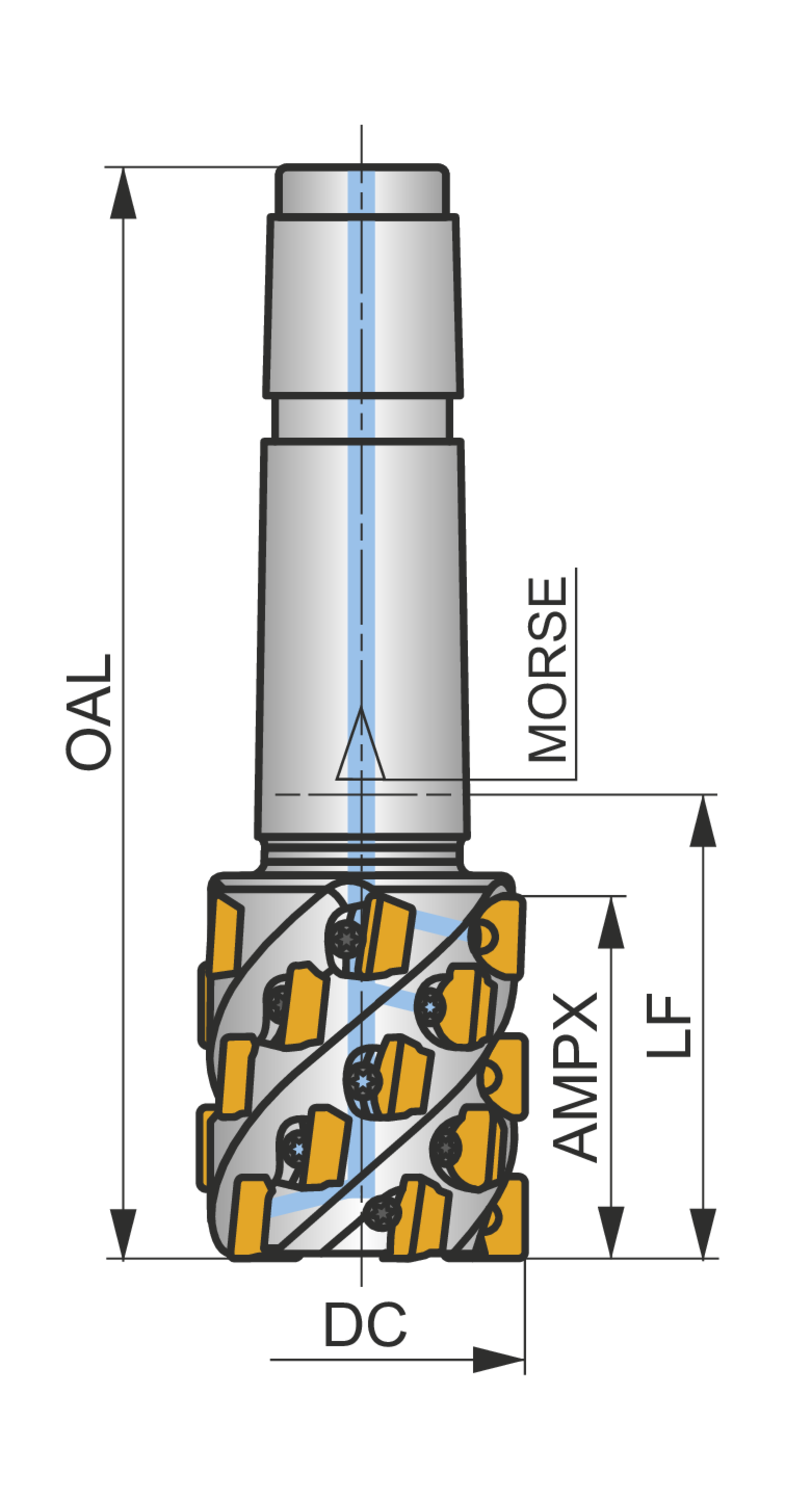

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Overall Length — in (OAL)6.594"
Overall Length — mm (OAL)167.5 mm
Functional Length — mm (LF)65.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignJ(T)-CSD12X
ShankQueue Morse DIN 228-1
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761741
EAN3603602970879
File Type Download
50J5R065E04-CSD12X55 — 3D Model STP Download
50J5R065E04-CSD12X55 — 2D Model DXF Download
50J5R065E04-CSD12X55 — Line Drawing PDF Download
