80T08R-C90SD12X88
80T08R-C90SD12X88
80T08R-C90SD12X88

80T08R-C90SD12X88

UGC DOR6761746
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4,537.00 CAD - $4,537.00 CAD
$4,537.00 CAD
$4,537.00 CAD - $4,537.00 CAD
$4,537.00 CAD

Vendu en lots de : 1

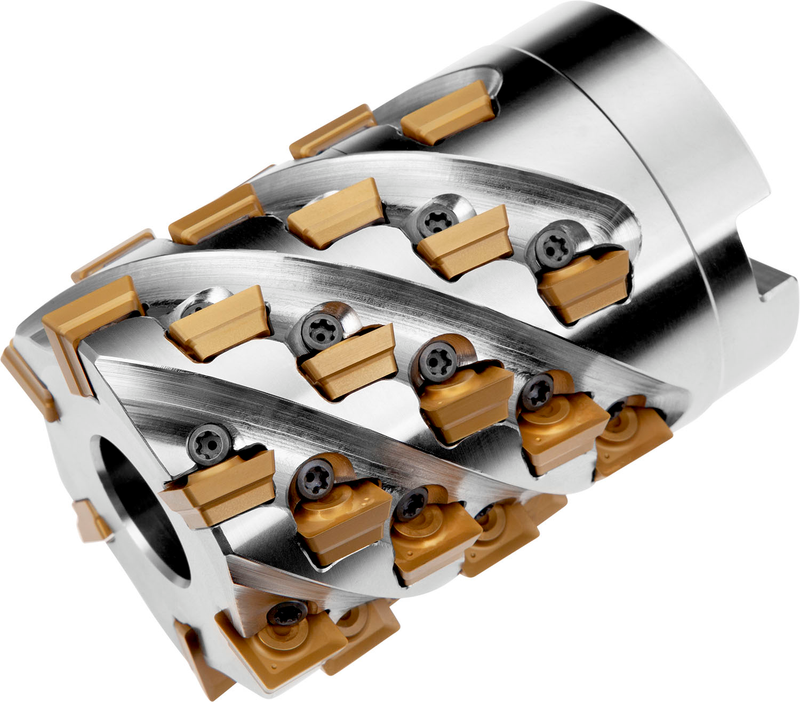

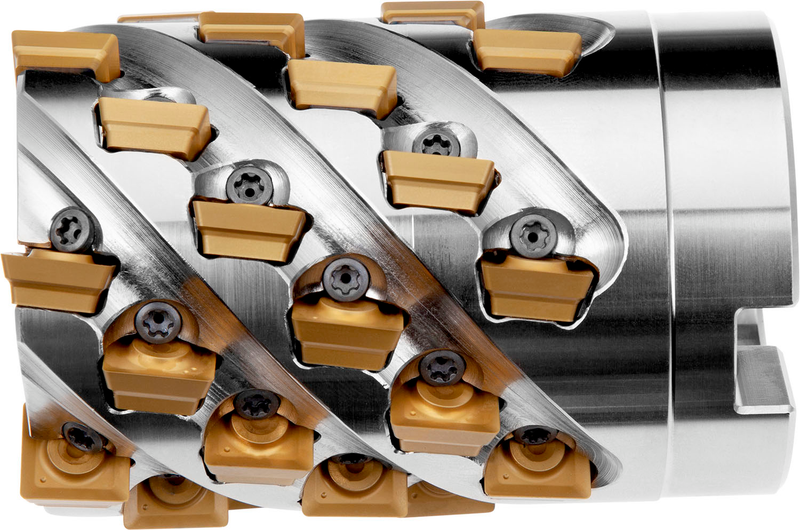

Fraise à épaule à queue longue avec géométrie positive/négative utilisant 64 plaquettes simple face SDGX 12 ou SDMX 12, diamètre de coupe de 80 mm avec angle d'attaque de 90° et alésage de raccordement de 40 mm selon la norme DIN 8030, longueur de dépassement de 115 mm pour le fraisage d'épaulements profonds et le fraisage de rainures profondes avec une profondeur de coupe maximale de 87,3 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80T08R-C90SD12X88
Product Number6761746
Product FamilyJ(T)-CSD12X
Insert Geometry
Depth of Cut Max — mm (APMX)87.3 mm

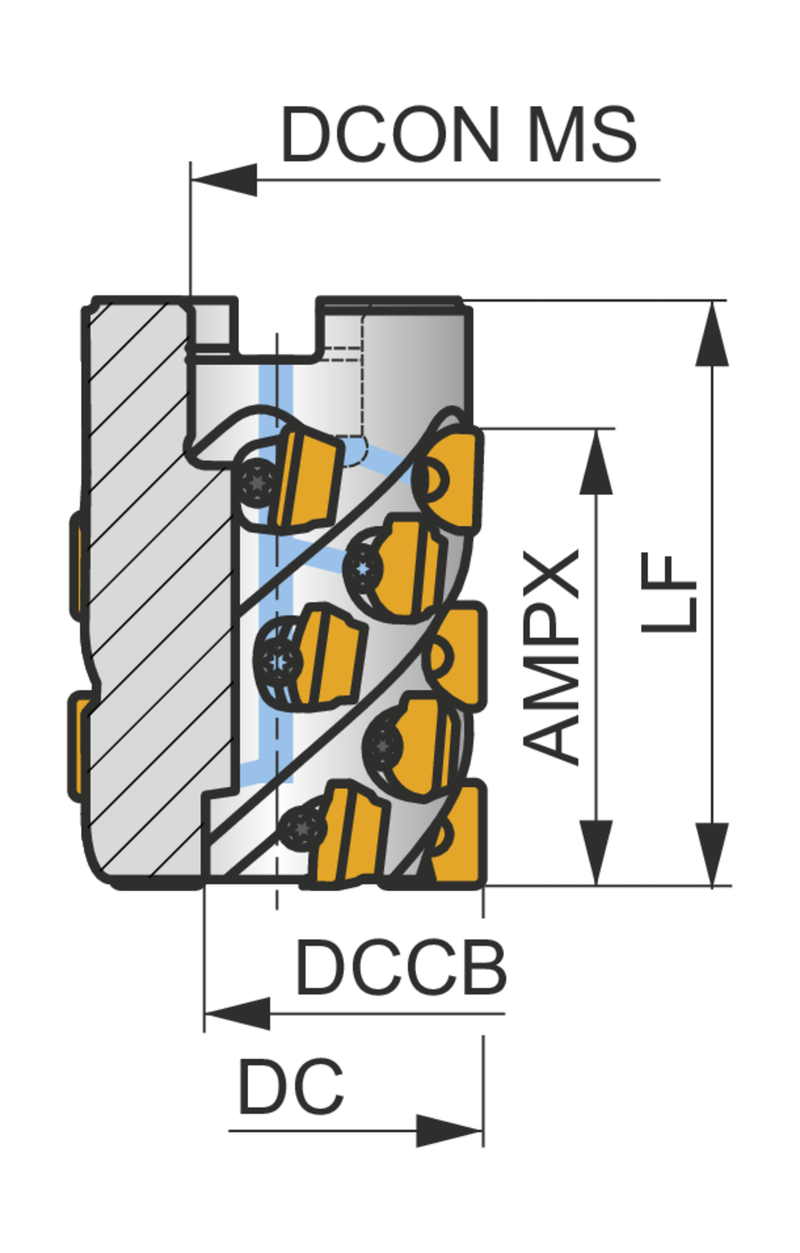

Dimensions
Cutting Diameter — in (DC)3.15"
Cutting Diameter — mm (DC)80.0 mm
Functional Length — mm (LF)115.0 mm
Connection Dia. — in (DCON)1.575"
Connection Dia. — mm (DCON)40.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignJ(T)-CSD12X
ShankFraise à surfacer-planer DIN 8030 – fraise hélicoïdale
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number6761746
EAN3603602970923
File Type Download
80T08R-C90SD12X88 — 3D Model STP Download
80T08R-C90SD12X88 — 2D Model DXF Download
80T08R-C90SD12X88 — Line Drawing PDF Download
