UGC DOR6766502
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$115.23 CAD - $115.23 CAD
$115.23 CAD
$115.23 CAD - $115.23 CAD
$115.23 CAD

Vendu en lots de : 1

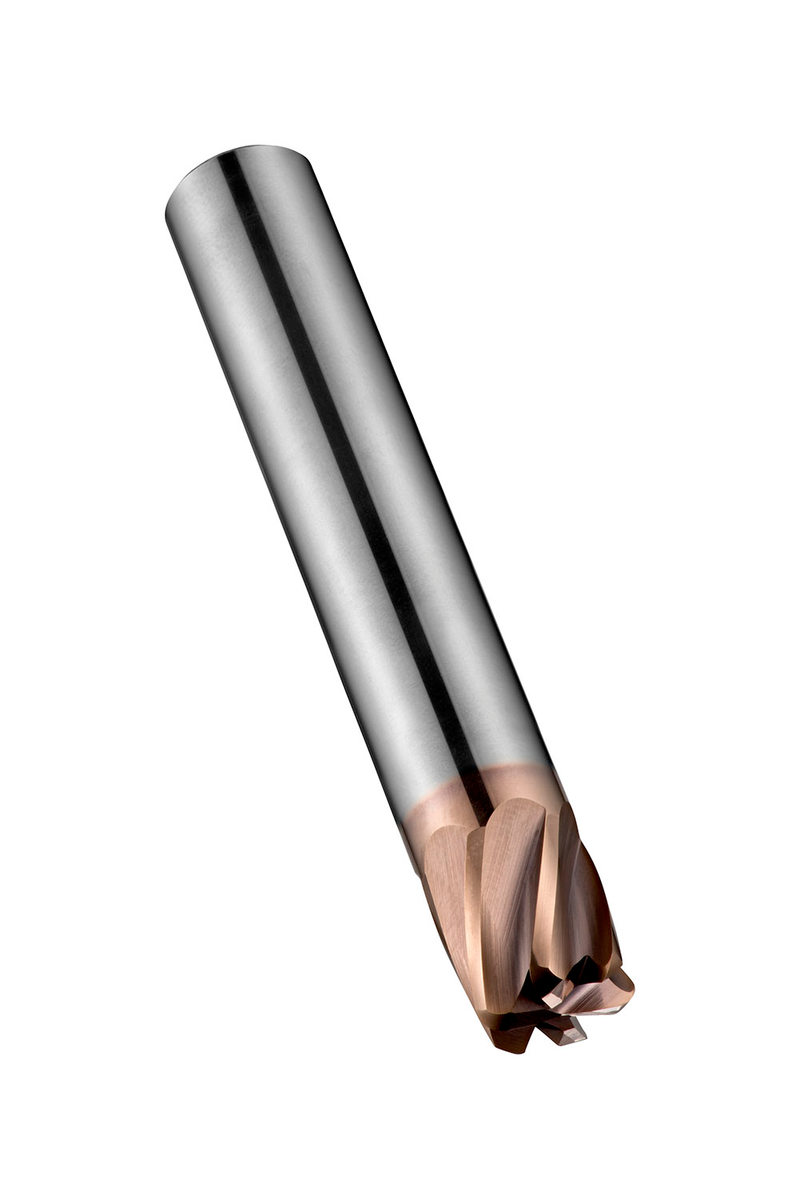

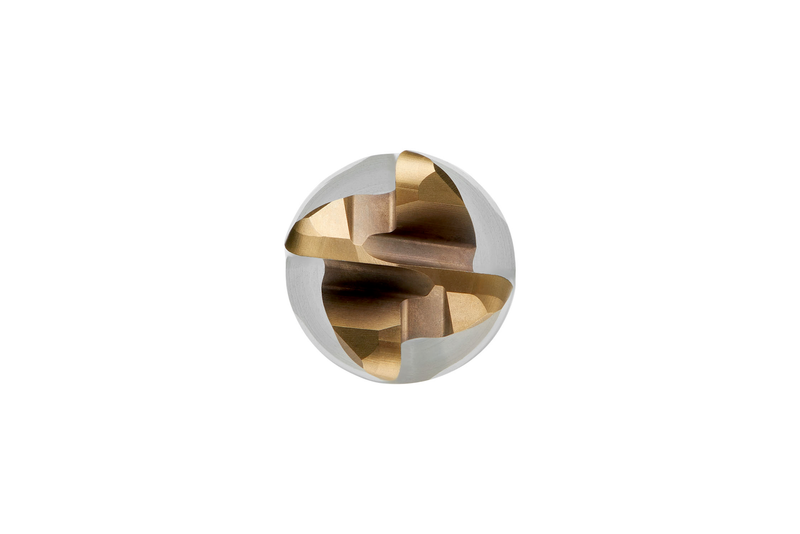

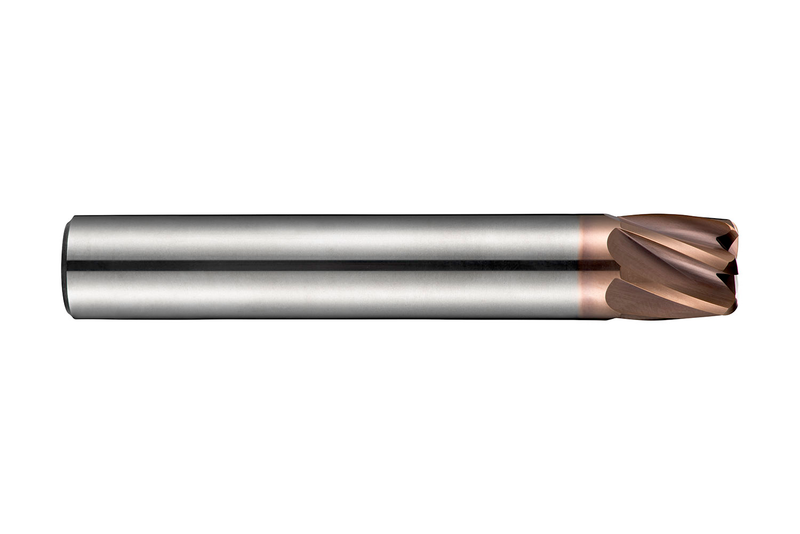

Fraise en bout à quatre dents pour l'ébauche à grand avance, série extra-courte, diamètre 6mm, longueur de coupe 6mm, longueur totale 60mm et rayon de coin 1mm, conforme à la norme DORMER avec un corps cylindrique 6mm, carbure monobloc avec revêtement TiSiN, hélice 25° et angle de dépouille 0° pour le surfaçage, le fraisage de reproduction, le fraisage en rampe et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5366.0XR1.0
GradeTiSiN
Product Number6766502
Product FamilyS536

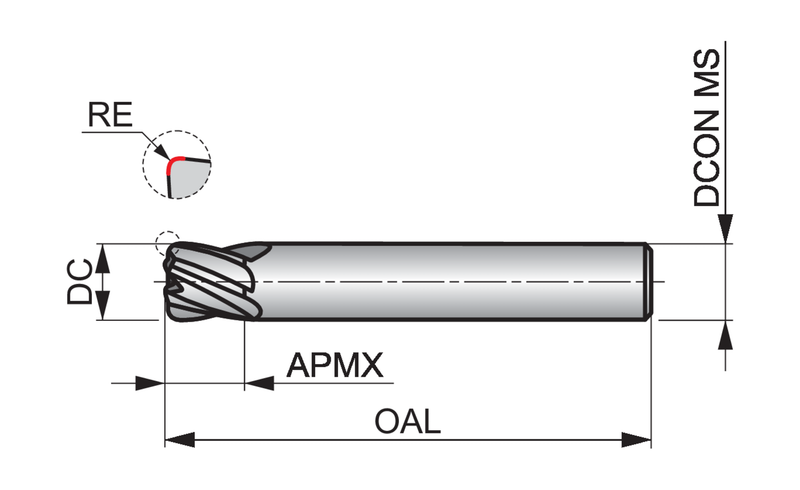

Insert Geometry
Corner Radius — in (RE)0.0394"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.2362"
Depth of Cut Max — mm (APMX)6.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)25.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46766502
EAN7320760687253
File Type Download
S5366.0XR1.0 — Line Drawing PDF Download
