A08M-SDQCL 2
A08M-SDQCL 2
A08M-SDQCL 2

A08M-SDQCL 2

UGC DOR6788449
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

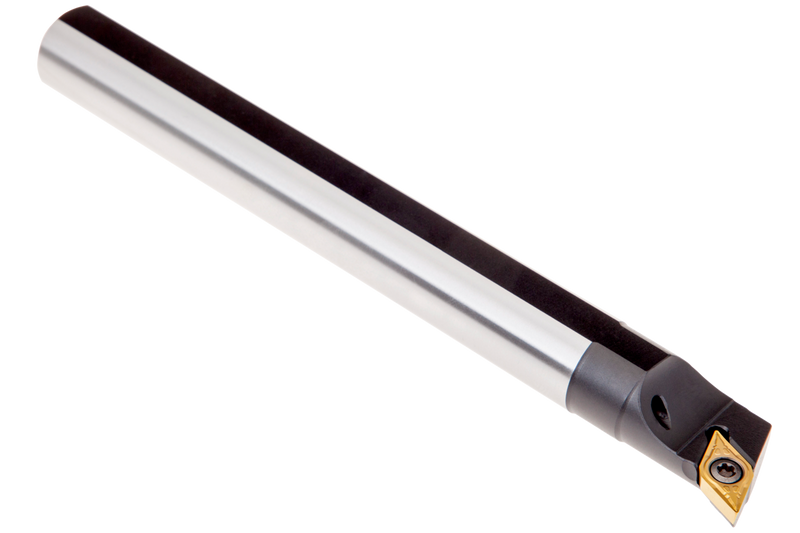

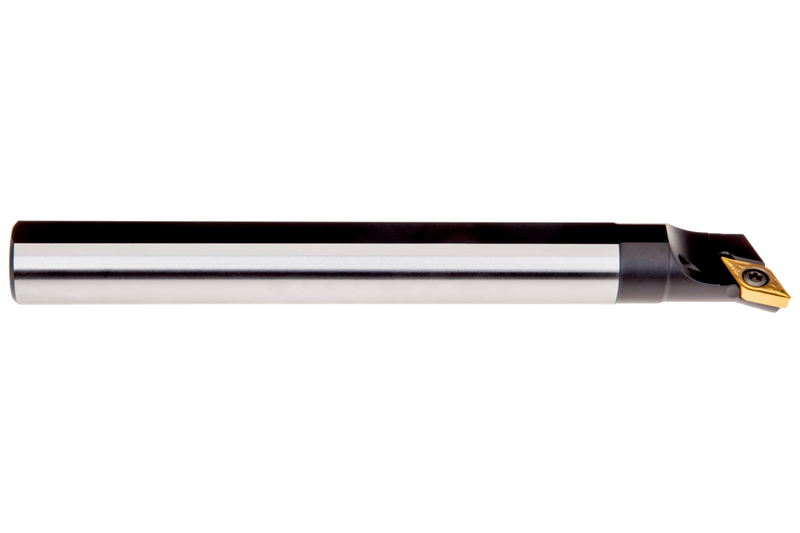

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 55° avec cercle inscrit de 1/4'', épaisseur 3/32'' (désignation ANSI DC.. 21.5. ), coupe à gauche 107°30' avec queue déportée, en acier avec trou de lubrification, diamètre 1/2'' x 6'' de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A08M-SDQCL 2
Product Number6788449
Product FamilySDQC(RL) INT
Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)13.0 mm
Shank Height — mm (H)0.46 mm
Min. Bore Dia. — in (DMIN)0.728"
Tool Information
Reference Numbers
EDP Number6788449
EAN3603602982117
File Type Download

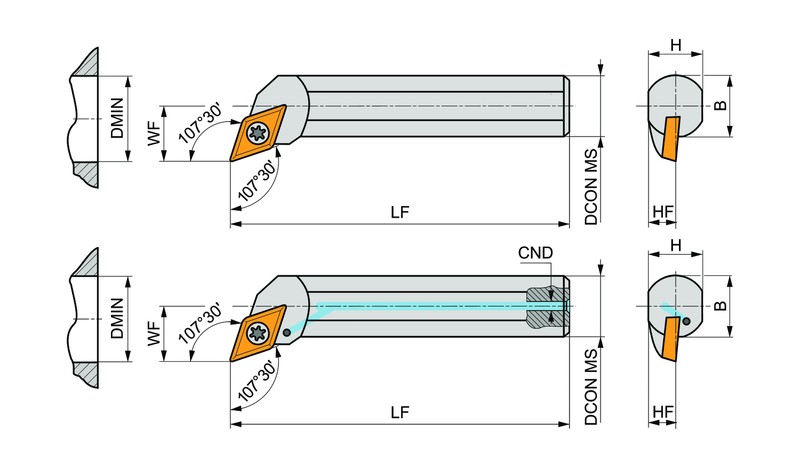

A08M-SDQCL 2 — Line Drawing PDF Download
