A10R-SDQCR 2
A10R-SDQCR 2
A10R-SDQCR 2

A10R-SDQCR 2

UGC DOR6788458
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.00 CAD - $197.00 CAD
$197.00 CAD
$197.00 CAD - $197.00 CAD
$197.00 CAD

Vendu en lots de : 1

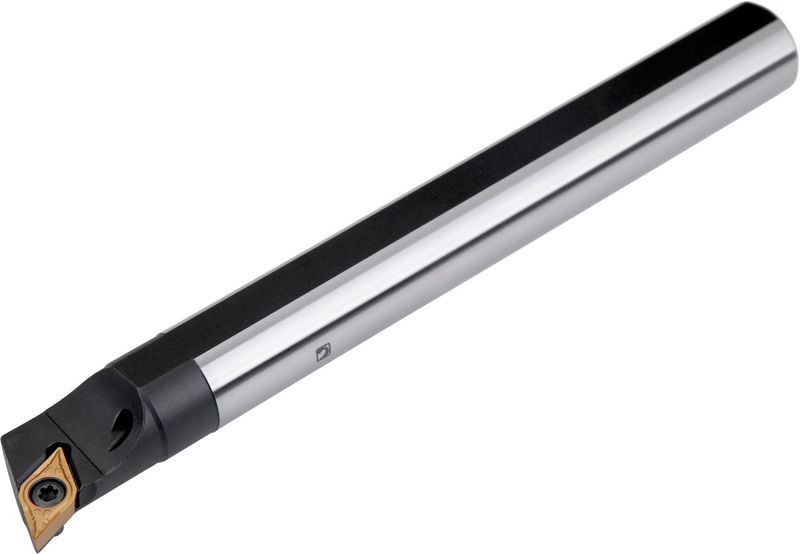

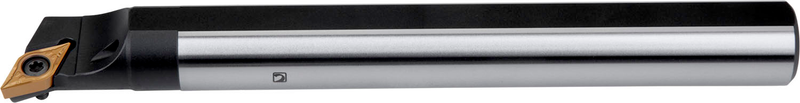

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde de 55° avec un diamètre de cercle inscrit de 1/4'', 3/32'' d'épaisseur (désignation ANSI DC.. 21.5.), droite 107°30' coupe en bout avec queue déportée, acier avec trou d'arrosage, 5/8'' de diamètre x 8'' de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A10R-SDQCR 2
Product Number6788458
Product FamilySDQC(RL) INT

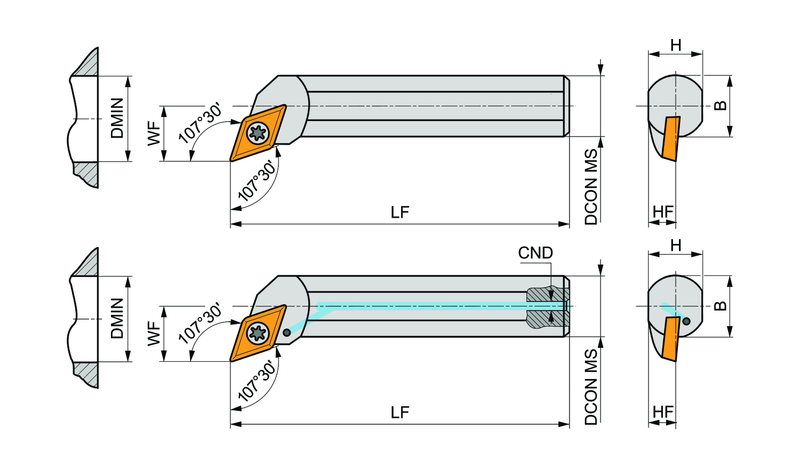

Dimensions
Functional Length — in (LF)8.0"
Functional Length — mm (LF)203.0 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.562 mm
Min. Bore Dia. — in (DMIN)0.85"
Tool Information
Reference Numbers
EDP Number6788458
EAN3603602982209
File Type Download
A10R-SDQCR 2 — Line Drawing PDF Download
