A10R-SVUBL 2
A10R-SVUBL 2
A10R-SVUBL 2

A10R-SVUBL 2

UGC DOR6788463
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$205.00 CAD - $205.00 CAD
$205.00 CAD
$205.00 CAD - $205.00 CAD
$205.00 CAD

Vendu en lots de : 1

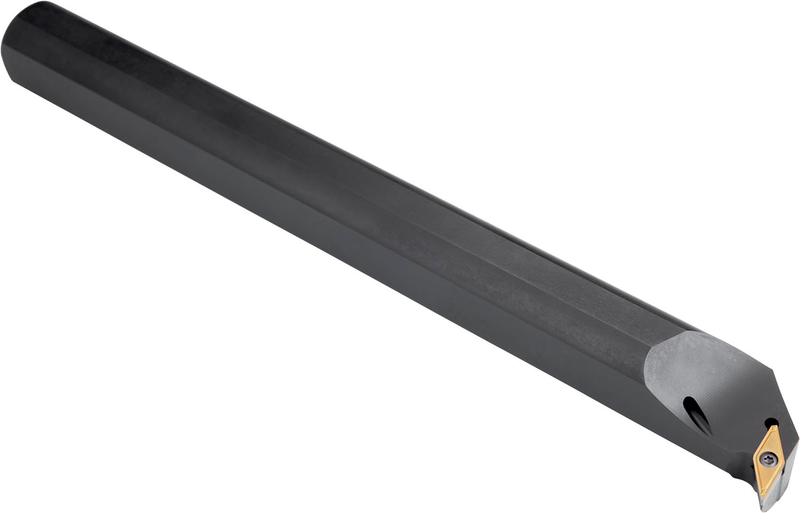

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 35° avec cercle inscrit de 1/4'', épaisseur 1/8'' (désignation ANSI VB.. 22.), coupe à gauche 93° avec queue déportée, en acier avec trou d'arrosage, diamètre 5/8'' x 8'' de long pour alésage de profilage unidirectionnel et multidirectionnel et chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A10R-SVUBL 2
Product Number6788463
Product FamilySVUB(C)(RL) INT

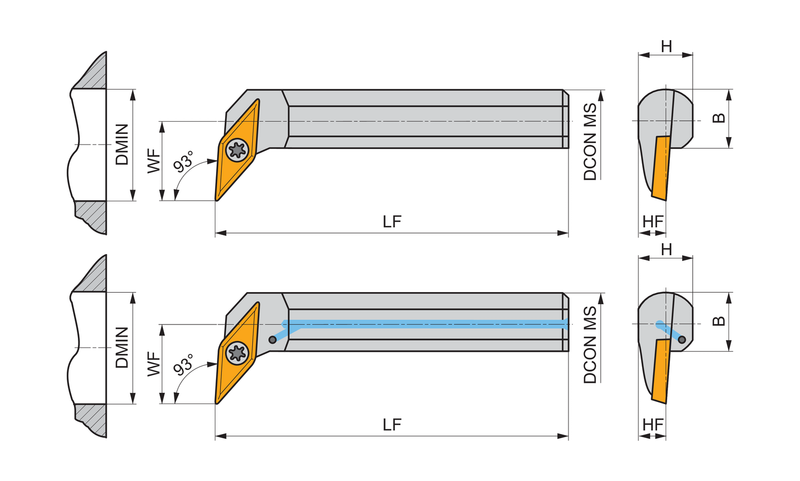

Dimensions
Functional Length — in (LF)8.0"
Functional Length — mm (LF)203.0 mm
Connection Dia. — in (DCON)0.625"
Connection Dia. — mm (DCON)16.0 mm
Shank Height — mm (H)0.56 mm
Min. Bore Dia. — in (DMIN)0.85"
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6788463
EAN3603602982254
File Type Download
A10R-SVUBL 2 — Line Drawing PDF Download
