A12S-DCLNR 3
A12S-DCLNR 3

A12S-DCLNR 3

UGC DOR6788467
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$392.00 CAD - $392.00 CAD
$392.00 CAD
$392.00 CAD - $392.00 CAD
$392.00 CAD

Vendu en lots de : 1

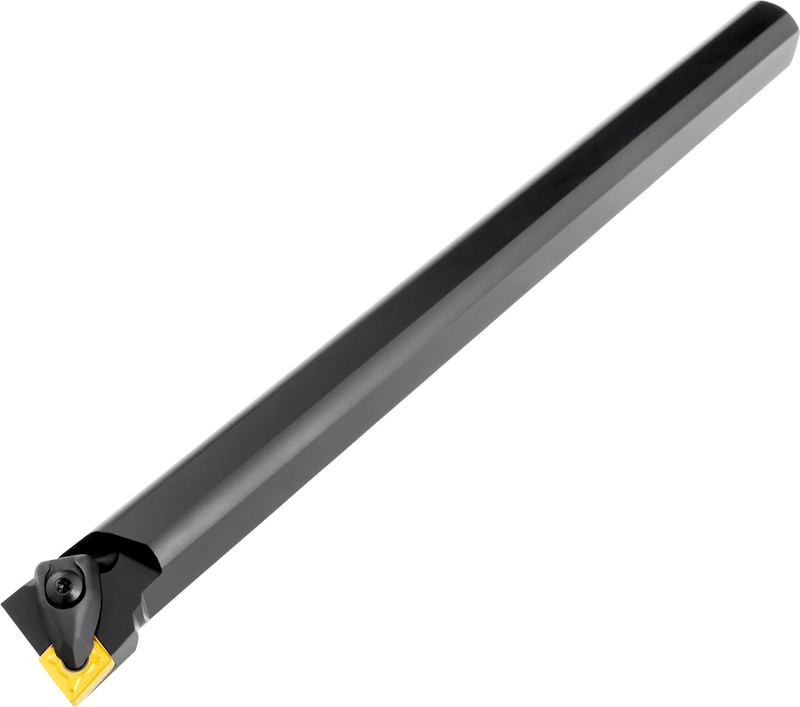

Barre d'alésage à double serrage pour plaquette négative en losange à 80° avec un diamètre de cercle inscrit de 3/8'', 1/8'' d'épaisseur (désignation ANSI CN.. 32. ), coupe latérale et frontale droite à 95° avec corps déporté, en acier avec trou d'arrosage, diamètre 3/4'' x 10'' de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A12S-DCLNR 3
Product Number6788467
Product FamilyDCLN(RL) INT
Dimensions
Functional Length — in (LF)10.0"
Functional Length — mm (LF)254.0 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)1.0"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6788467
EAN3603602982285
File Type Download

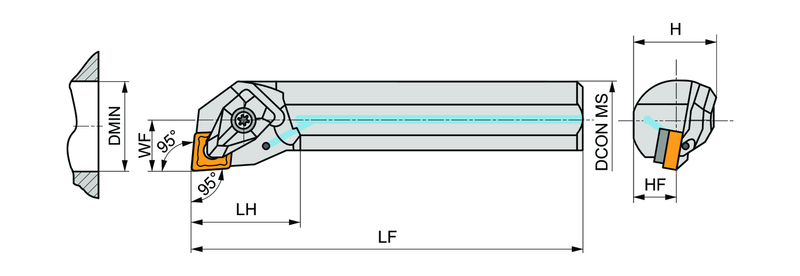

A12S-DCLNR 3 — Line Drawing PDF Download
