A12S-STFCR 2
A12S-STFCR 2
A12S-STFCR 2

A12S-STFCR 2

UGC DOR6788475
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$244.00 CAD - $244.00 CAD
$244.00 CAD
$244.00 CAD - $244.00 CAD
$244.00 CAD

Vendu en lots de : 1

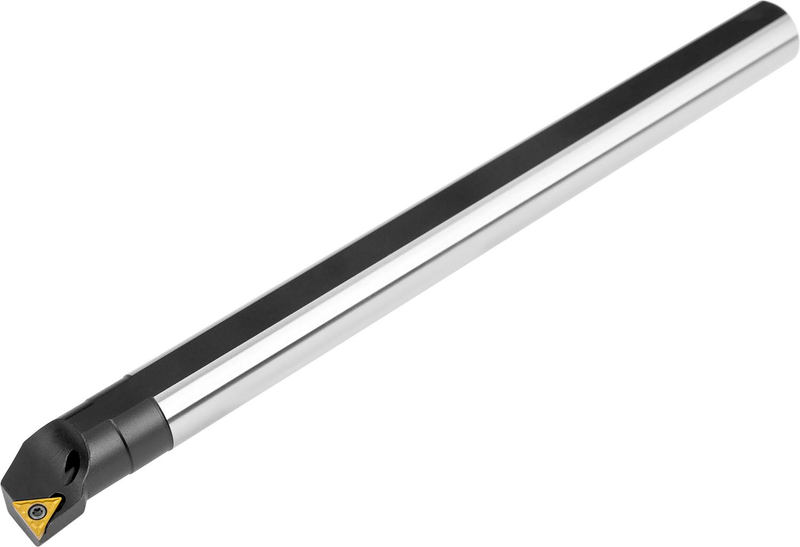

Barre d'alésage à serrage par vis pour plaquette triangulaire positive avec cercle inscrit de 1/4'' de diamètre, 3/32'' d'épaisseur (désignation ANSI TC.. 21.5. ), coupe à droite 90° avec queue déportée, en acier avec trou d'arrosage, 3/4'' de diamètre x 10'' de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A12S-STFCR 2
Product Number6788475
Product FamilySTFC(RL) INT
Dimensions
Functional Length — in (LF)10.0"
Functional Length — mm (LF)254.0 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.0 mm
Shank Height — mm (H)0.709 mm
Min. Bore Dia. — in (DMIN)0.929"
Tool Information
Reference Numbers
EDP Number6788475
EAN3603602982360
File Type Download

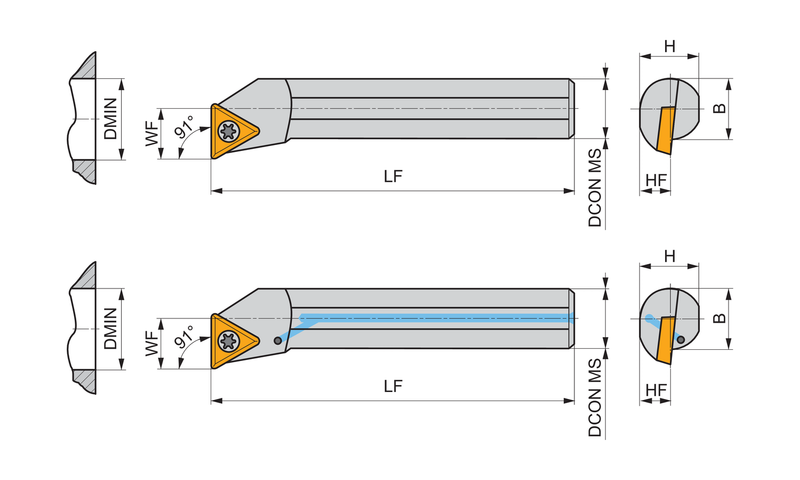

A12S-STFCR 2 — Line Drawing PDF Download
