A16T-DCLNR 4
A16T-DCLNR 4

A16T-DCLNR 4

UGC DOR6788479
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$431.00 CAD - $431.00 CAD
$431.00 CAD
$431.00 CAD - $431.00 CAD
$431.00 CAD

Vendu en lots de : 1

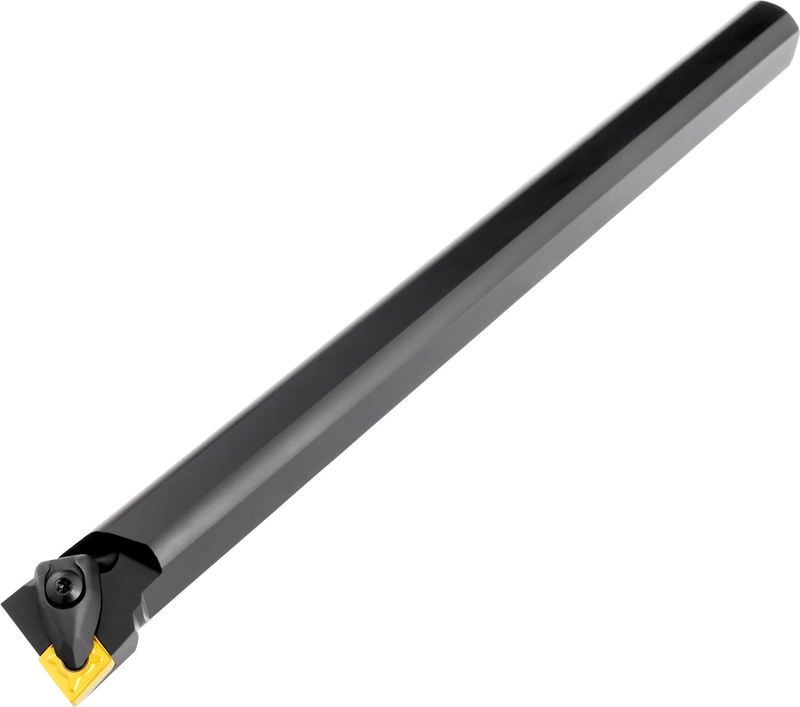

Barre d'alésage à double serrage pour plaquette négative en losange à 80° avec un cercle inscrit de 1/2'' de diamètre, 3/16'' d'épaisseur (désignation ANSI CN.. 43.), coupe à droite latérale et frontale à 95° avec corps déporté, en acier avec trou d'arrosage, 1'' de diamètre x 12'' de long pour alésage conique et alésage longitudinal avec ou sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A16T-DCLNR 4
Product Number6788479
Product FamilyDCLN(RL) INT
Dimensions
Functional Length — in (LF)12.0"
Functional Length — mm (LF)305.0 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.28"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6788479
EAN3603602982407
File Type Download

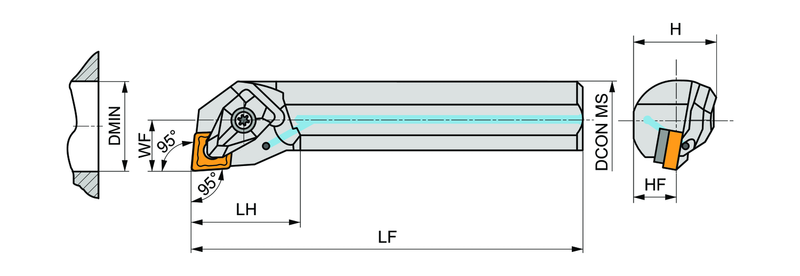

A16T-DCLNR 4 — Line Drawing PDF Download
