A16T-SCLCL 3
A16T-SCLCL 3
A16T-SCLCL 3

A16T-SCLCL 3

UGC DOR6788484
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$279.00 CAD - $279.00 CAD
$279.00 CAD
$279.00 CAD - $279.00 CAD
$279.00 CAD

Vendu en lots de : 1

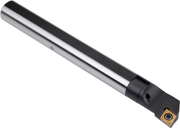

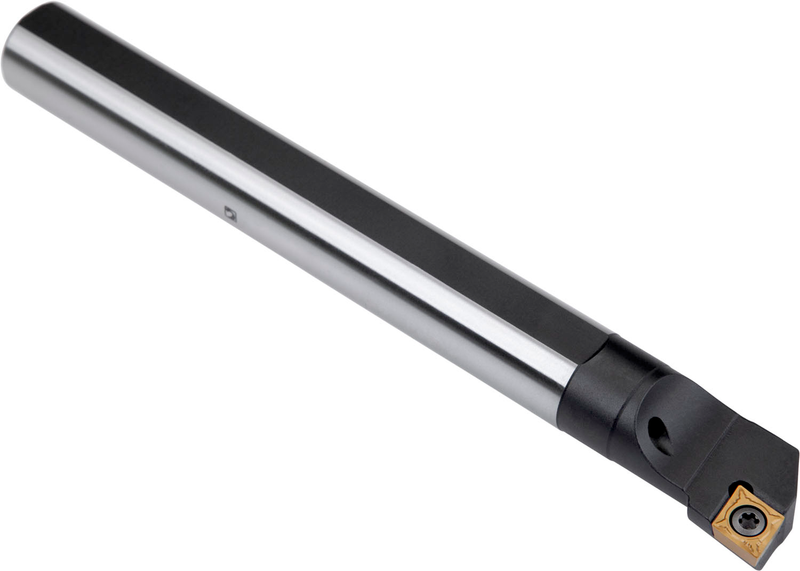

Barre d'alésage à serrage par vis pour plaquette positive rhomboïde de 80° avec un diamètre de cercle inscrit de 3/8'', de 5/32'' d'épaisseur (désignation ANSI CC.. 32.5.), coupe latérale et frontale de 95° à gauche avec queue déportée, en acier avec trou de lubrification, diamètre 1'' x 12'' de long pour l'alésage conique et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A16T-SCLCL 3
Product Number6788484
Product FamilyPCPN(RL) INT

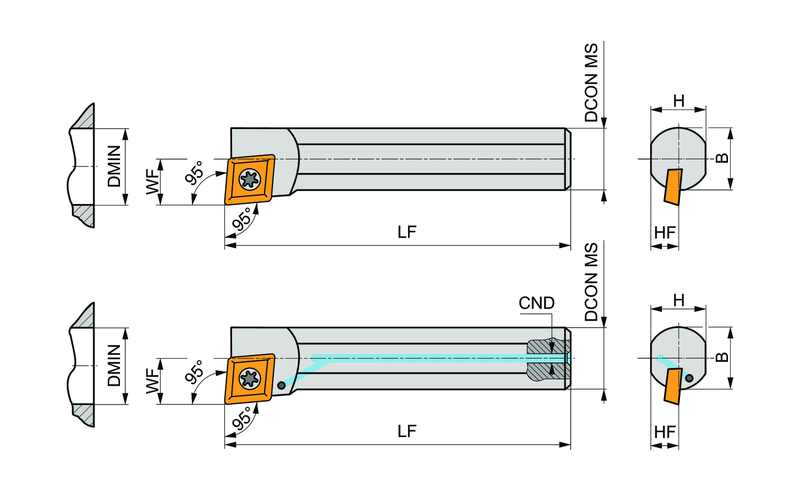

Dimensions
Functional Length — in (LF)12.0"
Functional Length — mm (LF)305.0 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.201"
Tool Information
Reference Numbers
EDP Number6788484
EAN3603602982452
File Type Download
A16T-SCLCL 3 — Line Drawing PDF Download
