UGC DOR6788486
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$279.00 CAD - $279.00 CAD
$279.00 CAD
$279.00 CAD - $279.00 CAD
$279.00 CAD

Vendu en lots de : 1

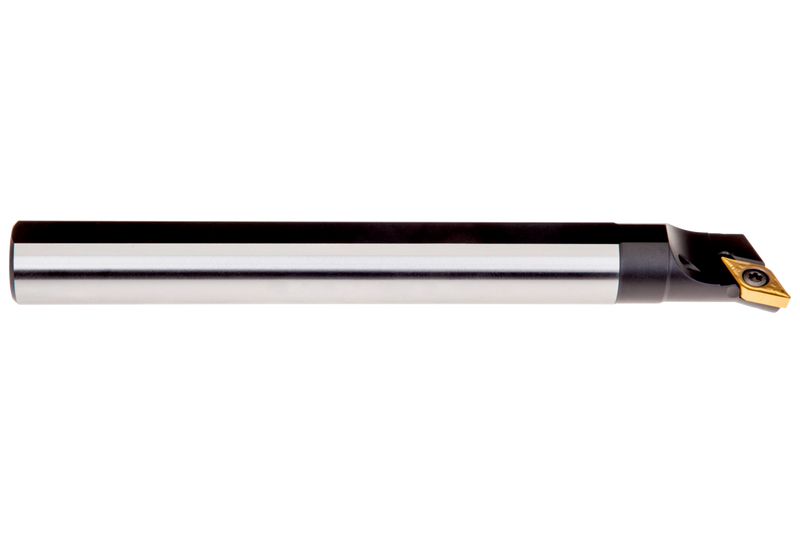

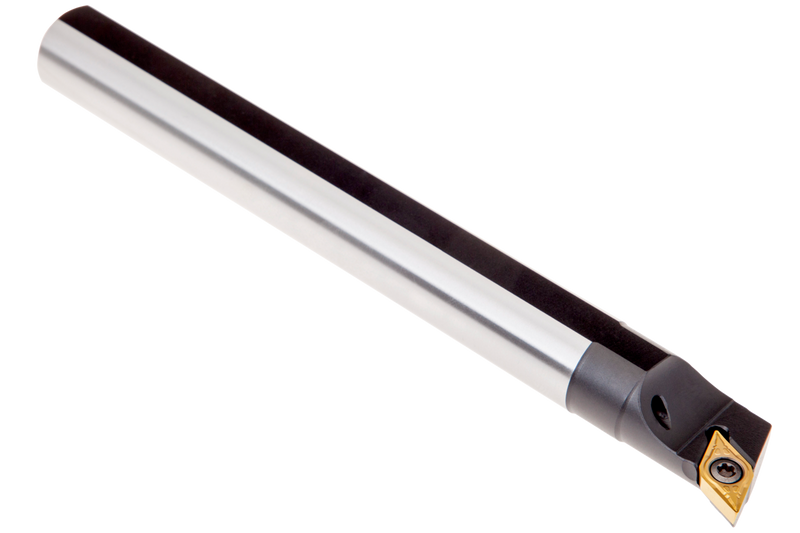

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 55° avec un diamètre de cercle inscrit de 3/8'', 5/32'' d'épaisseur (désignation ANSI DC.. 32.5.), coupe à gauche 107°30' avec queue déportée, acier avec trou d'arrosage, 1'' de diamètre x 12'' de long pour l'alésage conique et l'alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A16T-SDQCL 3
Product Number6788486
Product FamilySDQC(RL) INT
Dimensions
Functional Length — in (LF)12.0"
Functional Length — mm (LF)305.0 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.299"
Tool Information
Reference Numbers
EDP Number6788486
EAN3603602982476
File Type Download

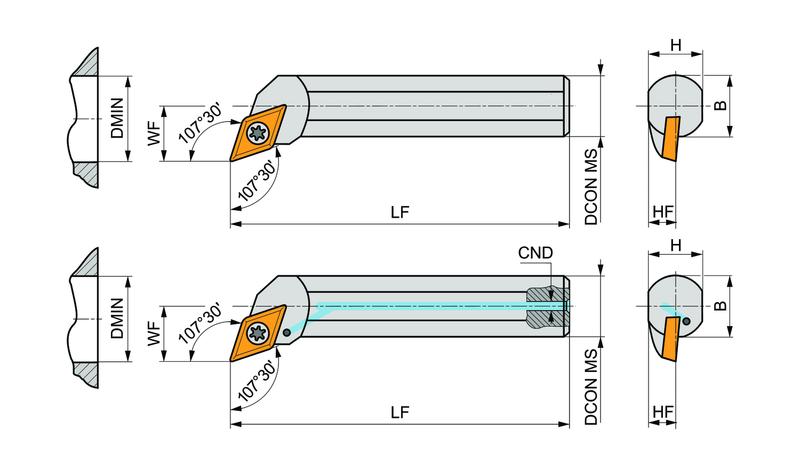

A16T-SDQCL 3 — Line Drawing PDF Download
