A16T-STFCR 3
A16T-STFCR 3
A16T-STFCR 3

A16T-STFCR 3

UGC DOR6788491
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$279.00 CAD - $279.00 CAD
$279.00 CAD
$279.00 CAD - $279.00 CAD
$279.00 CAD

Vendu en lots de : 1

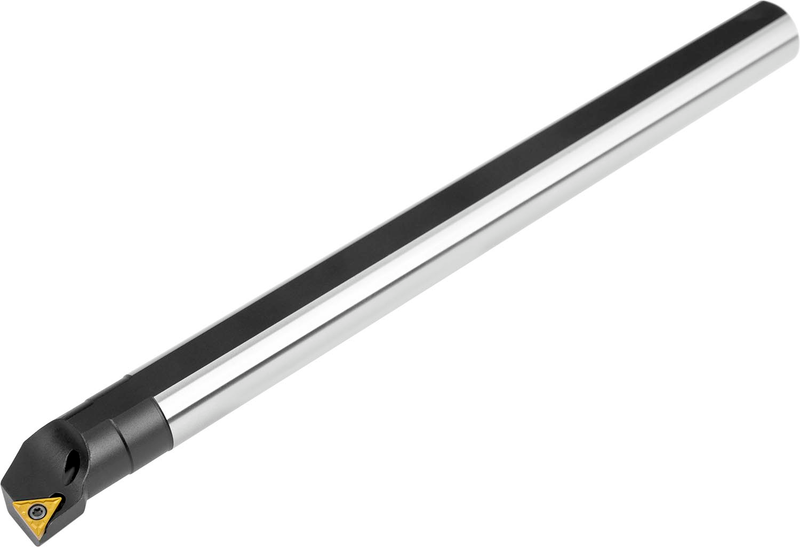

Barre d'alésage à bridage par vis pour plaquette triangulaire positive avec un diamètre de cercle inscrit de 3/8'' et une épaisseur de 5/32'' (désignation ANSI TC.. 32.5.), à droite, coupe frontale à 90° avec queue déportée, en acier avec trou d'arrosage, 1'' de diamètre x 12'' de long pour alésage conique et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A16T-STFCR 3
Product Number6788491
Product FamilySTFC(RL) INT
Dimensions
Functional Length — in (LF)12.0"
Functional Length — mm (LF)305.0 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.201"
Tool Information
Reference Numbers
EDP Number6788491
EAN3603602982520
File Type Download

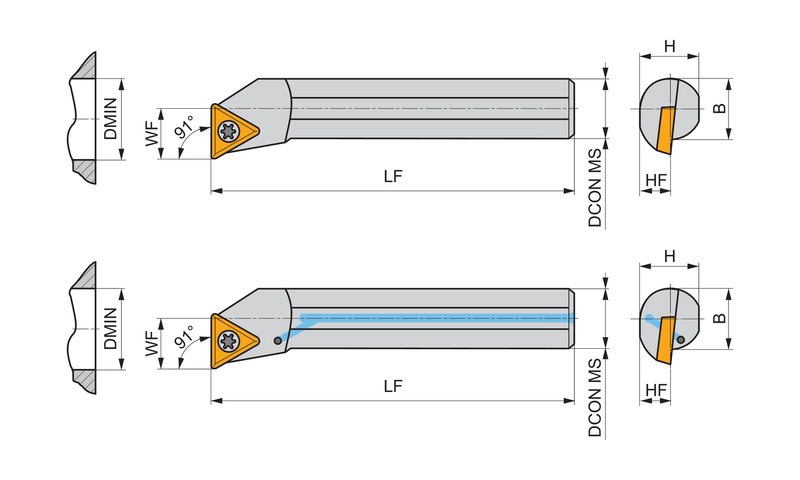

A16T-STFCR 3 — Line Drawing PDF Download
