A20T-DTFNR 3
A20T-DTFNR 3

A20T-DTFNR 3

UGC DOR6788497
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$446.00 CAD - $446.00 CAD
$446.00 CAD
$446.00 CAD - $446.00 CAD
$446.00 CAD

Vendu en lots de : 1

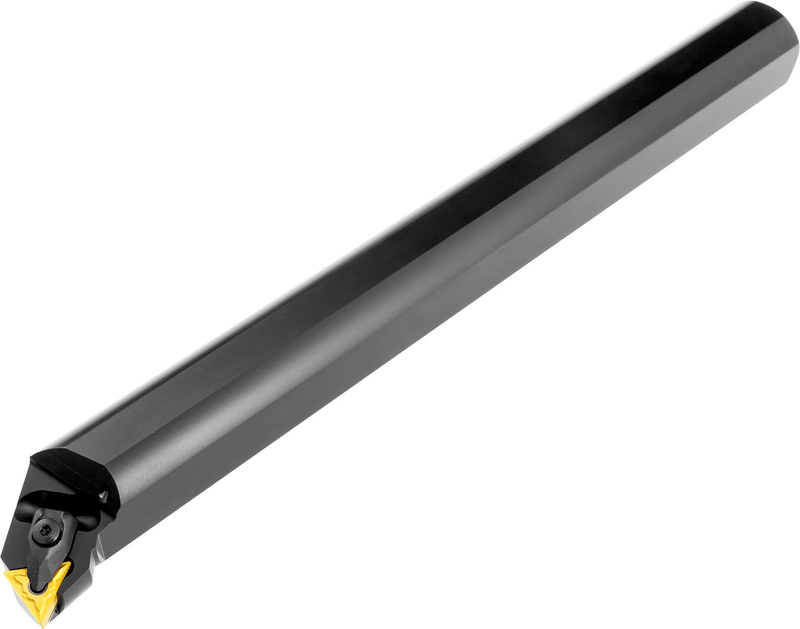

Barre d'alésage à double serrage pour plaquette négative triangulaire d'un diamètre de cercle inscrit de 3/8'', épaisseur de 3/16'' (désignation ANSI TN.. 33.), coupe à droite de 90° avec queue déportée, en acier avec trou d'arrosage, 1.1/4'' de diamètre x 12'' de long pour chanfreinage interne, alésage conique et alésage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20T-DTFNR 3
Product Number6788497
Product FamilyDTFN(RL) INT

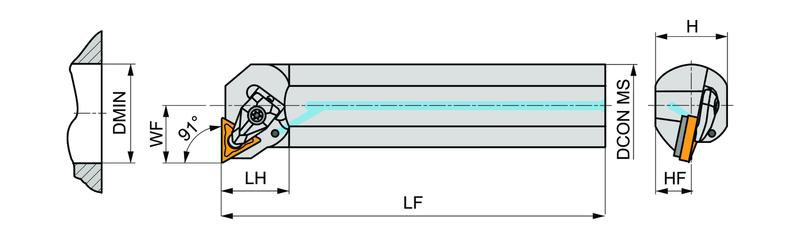

Dimensions
Functional Length — in (LF)12.0"
Functional Length — mm (LF)305.0 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.468"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6788497
EAN3603602982582
File Type Download
A20T-DTFNR 3 — Line Drawing PDF Download
