A24T-DDUNR 4
A24T-DDUNR 4

A24T-DDUNR 4

UGC DOR6788509
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$500.00 CAD - $500.00 CAD
$500.00 CAD
$500.00 CAD - $500.00 CAD
$500.00 CAD

Vendu en lots de : 1

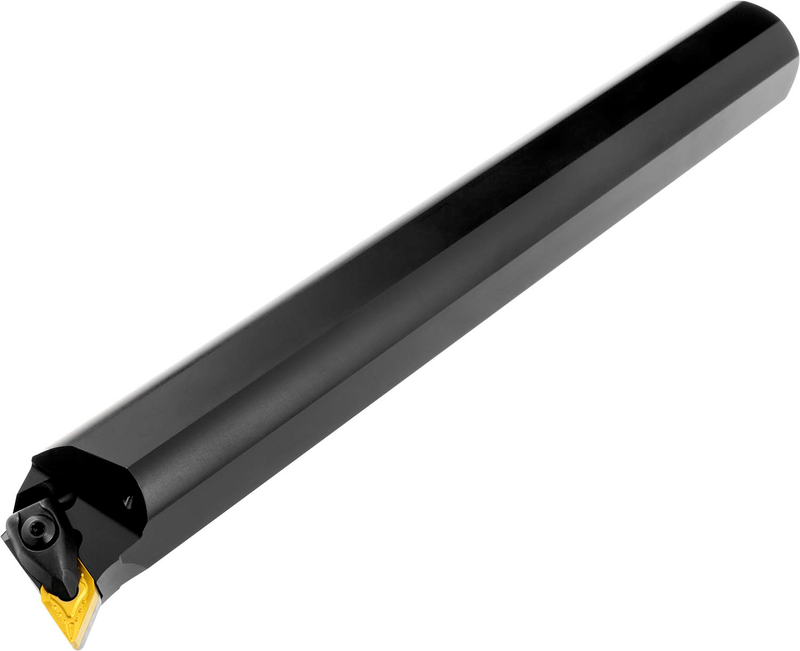

Alésoir double-serrage pour une plaquette négative rhomboïdale à 55° avec un diamètre de cercle inscrit de 1/2'', 1/4'' d'épaisseur (désignation ANSI DN.. 44. ), coupe à droite à 93° avec queue décalée, en acier avec trou de refroidissement, diamètre de 1.1/2'' x 12'' de long pour chanfreinage interne, alésage conique, alésage de copiage unidirectionnel et multidirectionnel et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A24T-DDUNR 4
Product Number6788509
Product FamilyDDUN(RL) INT
Dimensions
Functional Length — in (LF)12.0"
Functional Length — mm (LF)305.0 mm
Connection Dia. — in (DCON)1.5"
Connection Dia. — mm (DCON)38.0 mm
Shank Height — mm (H)1.374 mm
Min. Bore Dia. — in (DMIN)2.0"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6788509
EAN3603602982704
File Type Download

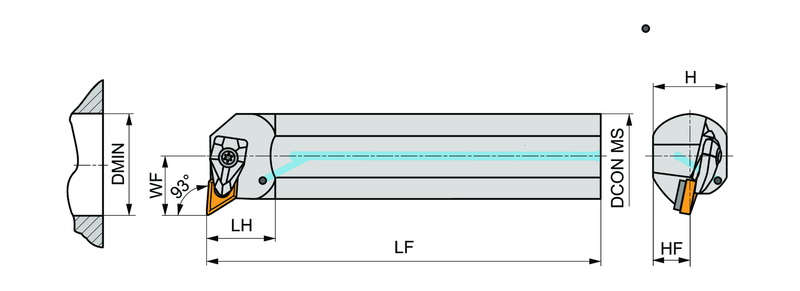

A24T-DDUNR 4 — Line Drawing PDF Download
