A24T-DTFNL 4
A24T-DTFNL 4

A24T-DTFNL 4

UGC DOR6788510
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$500.00 CAD - $500.00 CAD
$500.00 CAD
$500.00 CAD - $500.00 CAD
$500.00 CAD

Vendu en lots de : 1

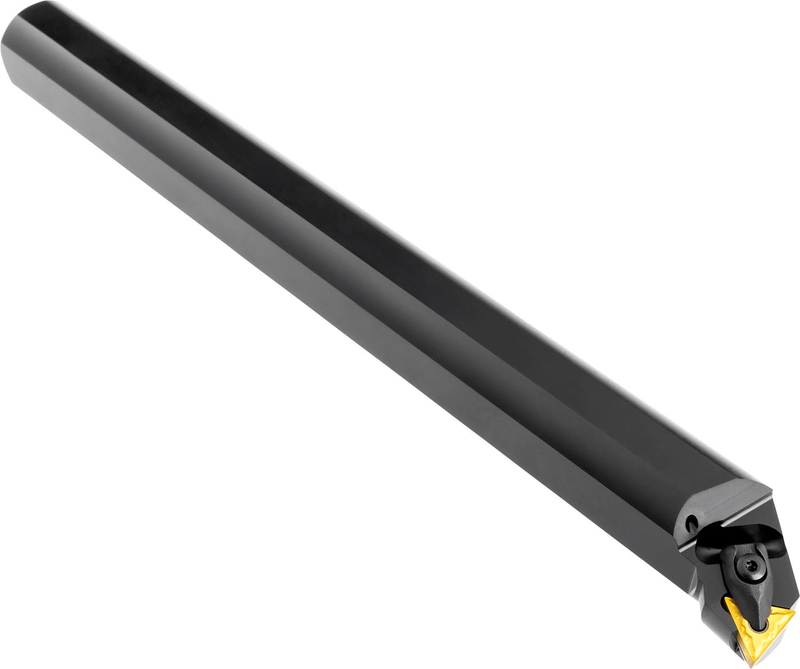

Alésoir à double serrage pour plaquette négative triangulaire de diamètre de cercle inscrit 1/2'', épaisseur 3/16'' (désignation ANSI TN.. 43.), coupe à gauche à 90° avec queue déportée, acier avec trou d'arrosage, diamètre 1.1/2'' x 12'' de long pour chanfreinage interne, alésage conique et alésage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A24T-DTFNL 4
Product Number6788510
Product FamilyDTFN(RL) INT
Dimensions
Functional Length — in (LF)12.0"
Functional Length — mm (LF)305.0 mm
Connection Dia. — in (DCON)1.5"
Connection Dia. — mm (DCON)38.0 mm
Shank Height — mm (H)1.374 mm
Min. Bore Dia. — in (DMIN)1.76"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6788510
EAN3603602982711
File Type Download

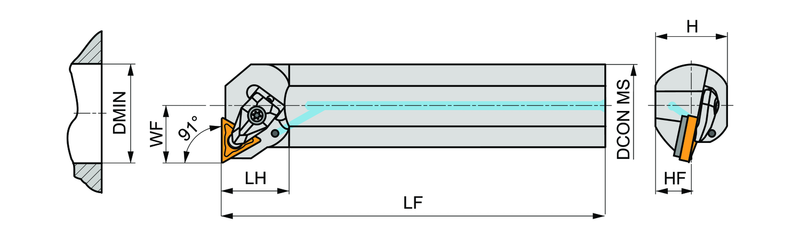

A24T-DTFNL 4 — Line Drawing PDF Download
