A24T-DTFNR 4
A24T-DTFNR 4

A24T-DTFNR 4

UGC DOR6788511
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$500.00 CAD - $500.00 CAD
$500.00 CAD
$500.00 CAD - $500.00 CAD
$500.00 CAD

Vendu en lots de : 1

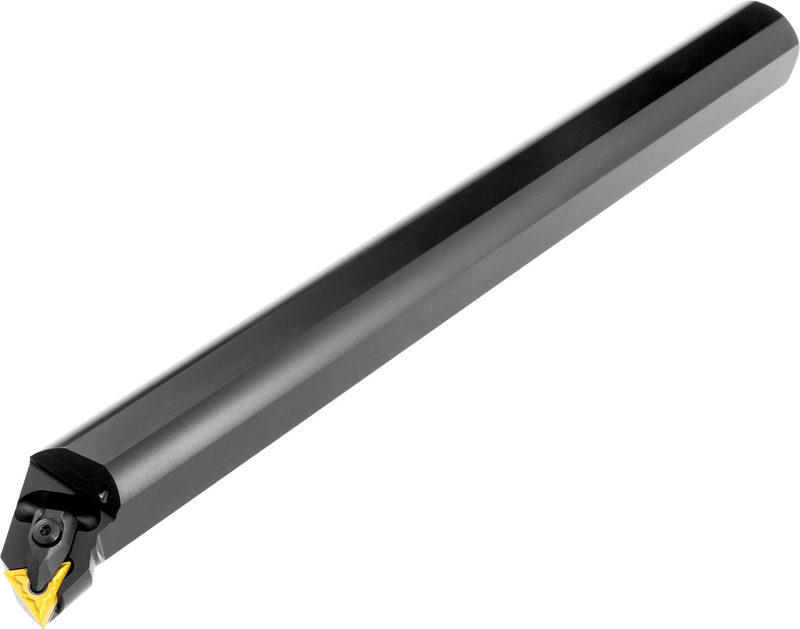

Barre d'alésage à double serrage pour loger un insert triangulaire négatif avec un diamètre de cercle inscrit de 1/2'' et une épaisseur de 3/16'' (désignation ANSI TN.. 43.), coupe à droite à 90° avec queue déportée, en acier avec trou d'arrosage, diamètre 1.1/2'' x 12'' de long pour le chanfreinage interne, l'alésage conique et l'alésage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A24T-DTFNR 4
Product Number6788511
Product FamilyDTFN(RL) INT

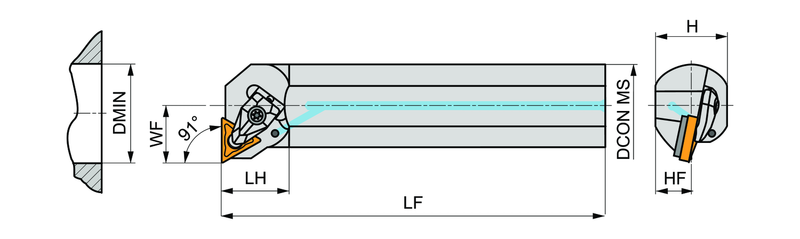

Dimensions
Functional Length — in (LF)12.0"
Functional Length — mm (LF)305.0 mm
Connection Dia. — in (DCON)1.5"
Connection Dia. — mm (DCON)38.0 mm
Shank Height — mm (H)1.374 mm
Min. Bore Dia. — in (DMIN)1.76"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6788511
EAN3603602982728
File Type Download
A24T-DTFNR 4 — Line Drawing PDF Download
