DVJNL 16 3D
DVJNL 16 3D

DVJNL 16 3D

UGC DOR6788527
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

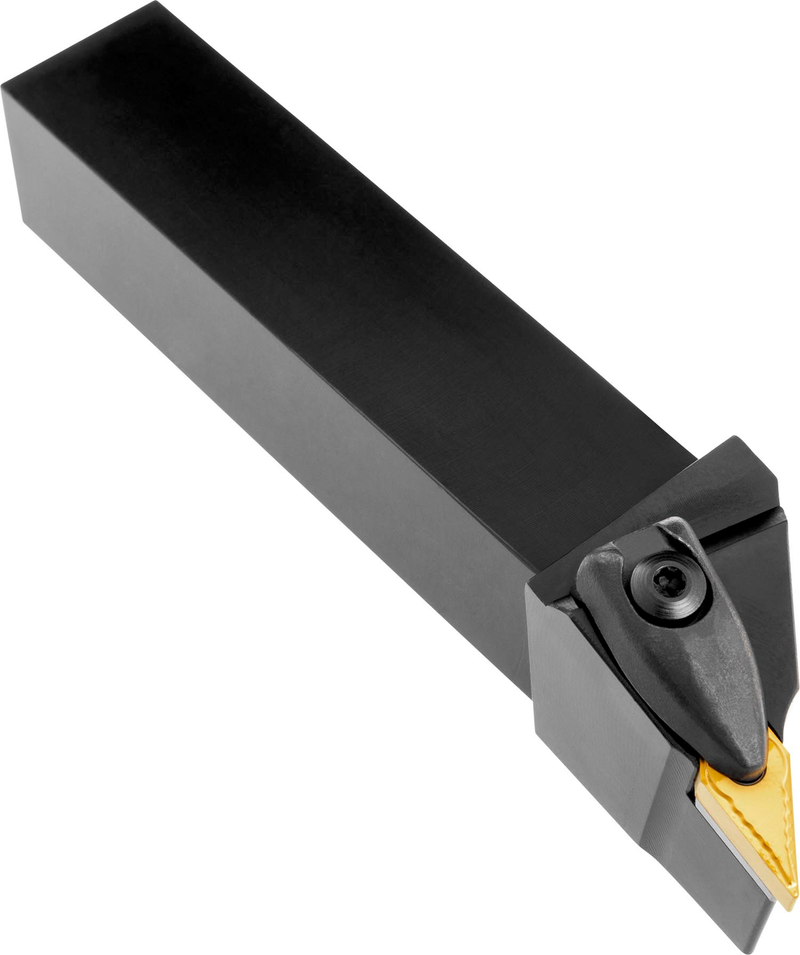

Outil de tournage à double bride pour plaquette négative en losange 35° avec un diamètre de cercle inscrit de 3/8'', épaisseur de 3/16'' (désignation ANSI VN.. 33.), coupe latérale gauche 93° avec corps déporté, hauteur d'outil de 1'' x largeur de 1'' x longueur de 6'' pour le chanfreinage, le tournage conique, le copiage unidirectionnel et multidirectionnel, et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DVJNL 16 3D
Product Number6788527
Product FamilyDVJN(RL) EXT
Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Shank Height — mm (H)1.0 mm
Tool Information
Reference Numbers
EDP Number6788527
EAN3603602982889
File Type Download

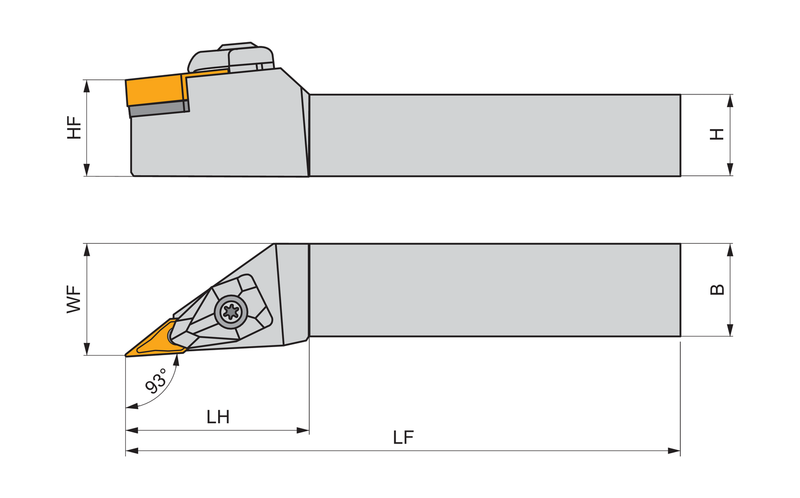

DVJNL 16 3D — Line Drawing PDF Download
