DVJNR 12 3B
DVJNR 12 3B

DVJNR 12 3B

UGC DOR6788529
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$156.00 CAD - $156.00 CAD
$156.00 CAD
$156.00 CAD - $156.00 CAD
$156.00 CAD

Vendu en lots de : 1

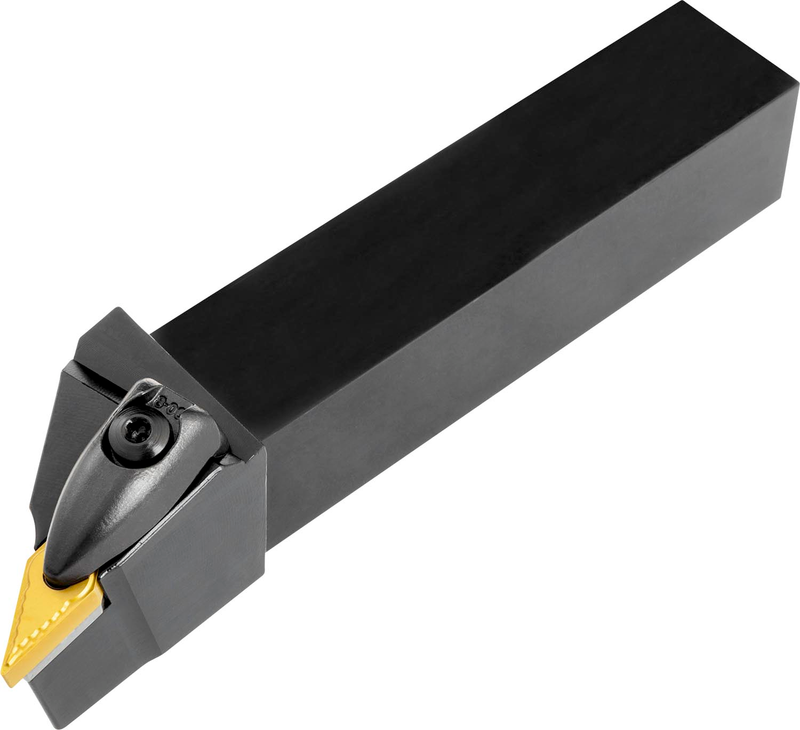

Outil de tournage à double bride pour plaquette négative en losange 35° avec cercle inscrit de 3/8'', épaisseur 3/16'' (désignation ANSI VN.. 33.), coupe latérale droite à 93° avec corps déporté, hauteur d'outil 3/4'' x largeur 3/4'' x longueur 4.1/2'' pour chanfreinage, tournage conique, copiage unidirectionnel et multidirectionnel et tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DVJNR 12 3B
Product Number6788529
Product FamilyDVJN(RL) EXT
Dimensions
Functional Length — in (LF)4.5"
Functional Length — mm (LF)114.0 mm
Shank Height — mm (H)0.75 mm
Tool Information
Reference Numbers
EDP Number6788529
EAN3603602982902
File Type Download

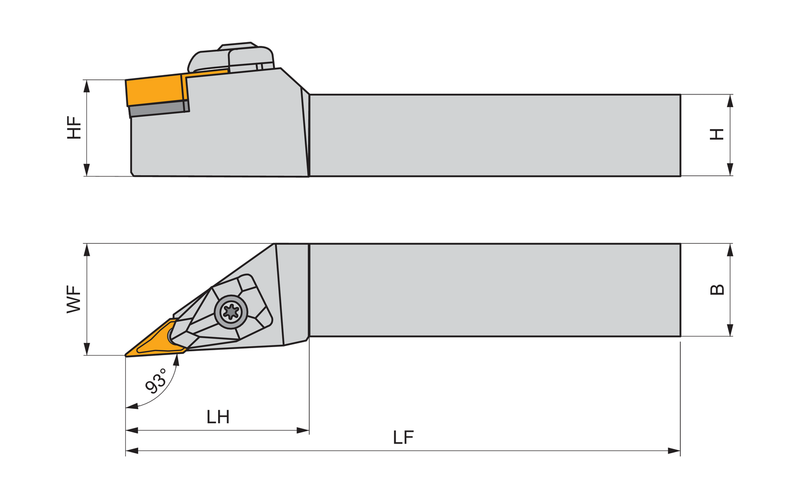

DVJNR 12 3B — Line Drawing PDF Download
