DVJNR 16 3D
DVJNR 16 3D

DVJNR 16 3D

UGC DOR6788530
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

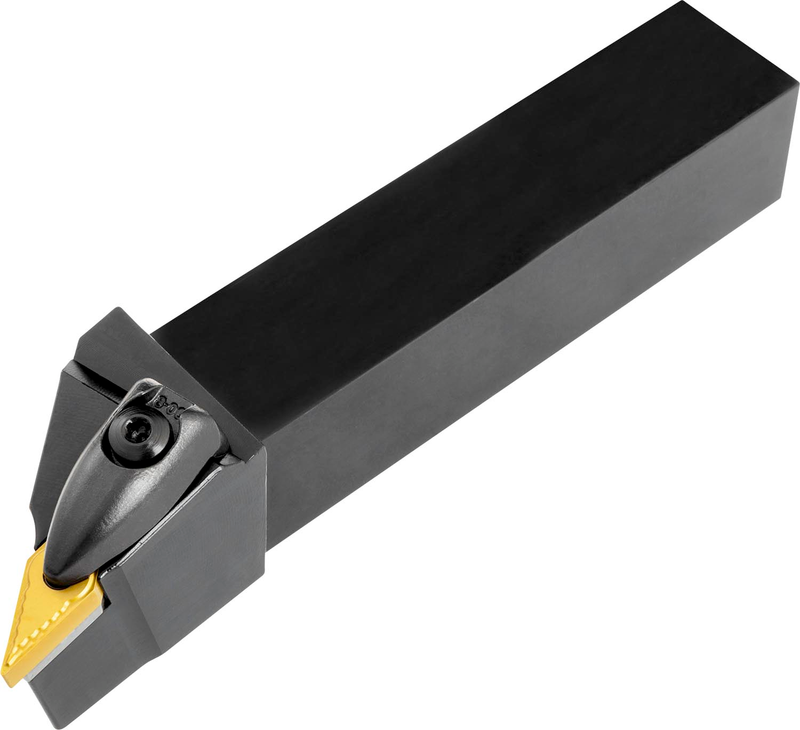

Outil de tournage à double bride pour plaquette négative en losange 35° avec un cercle inscrit de 3/8'' de diamètre, 3/16'' d'épaisseur (désignation ANSI VN.. 33.), coupe latérale droite à 93° avec corps déporté, hauteur d'outil 1'' x largeur 1'' x longueur 6'' pour le chanfreinage, le tournage conique, le tournage de copiage unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DVJNR 16 3D
Product Number6788530
Product FamilyDVJN(RL) EXT

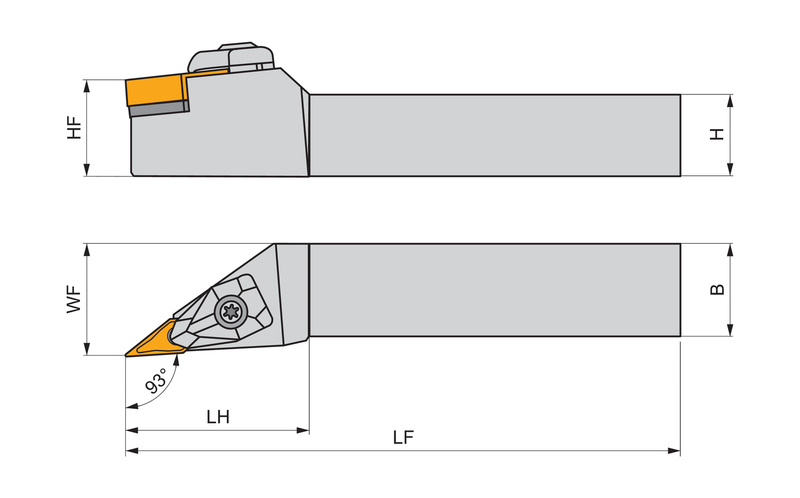

Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Shank Height — mm (H)1.0 mm
Tool Information
Reference Numbers
EDP Number6788530
EAN3603602982919
File Type Download
DVJNR 16 3D — Line Drawing PDF Download
