DCRNR 20 4D
DCRNR 20 4D
DCRNR 20 4D

DCRNR 20 4D

UGC DOR6788540
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.00 CAD - $180.00 CAD
$180.00 CAD
$180.00 CAD - $180.00 CAD
$180.00 CAD

Vendu en lots de : 1

Outil de tournage à double bride pour plaquette négative rhomboïde à 80° avec un diamètre de cercle inscrit de 1/2'', 3/16'' d'épaisseur (désignation ANSI CN.. 43.), coupe à droite à 75° avec corps déporté, 1.1/4'' de hauteur x 1.1/4'' de largeur x 6'' de long pour le chanfreinage, le tournage conique et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DCRNR 20 4D
Product Number6788540
Product FamilyDCRN(RL) EXT
Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Tool Information
Reference Numbers
EDP Number6788540
EAN3603602983015
File Type Download

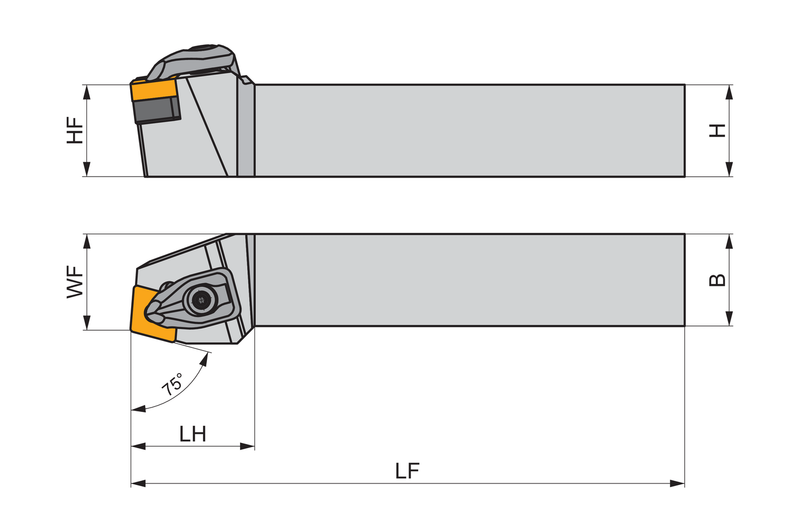

DCRNR 20 4D — Line Drawing PDF Download
