DCKNL 16 4D
DCKNL 16 4D
DCKNL 16 4D

DCKNL 16 4D

UGC DOR6788544
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

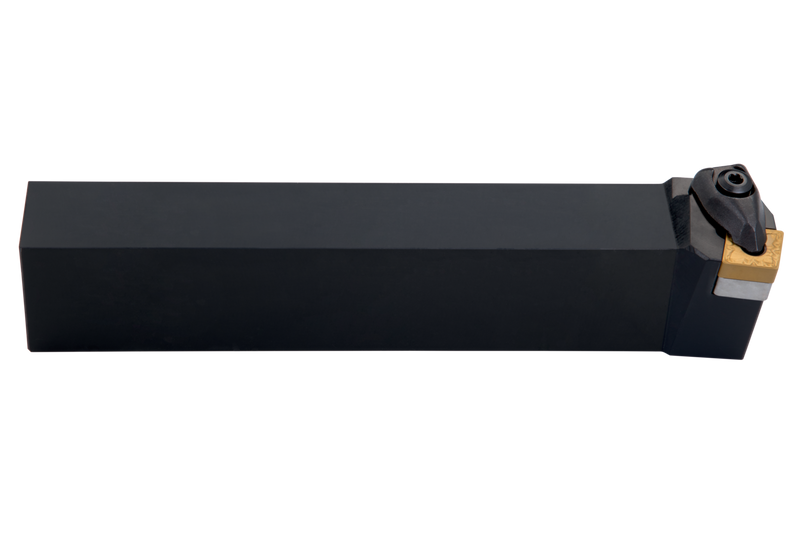

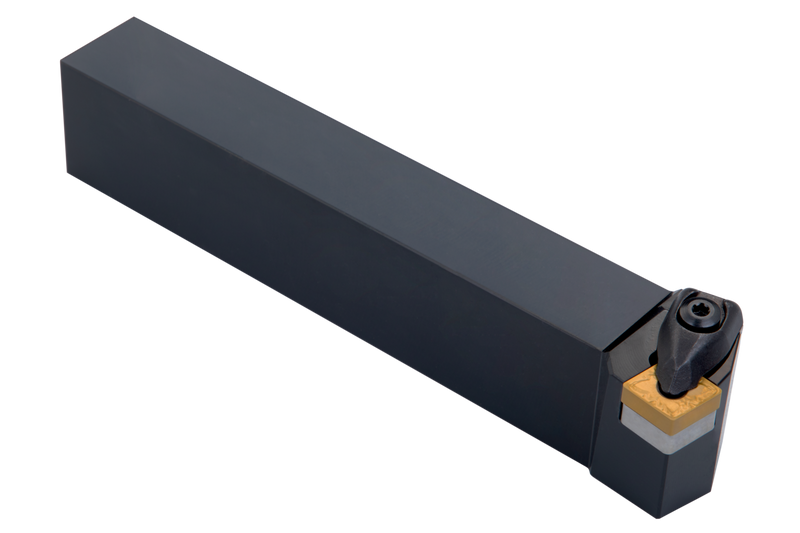

Outil de tournage à double bride pour plaquette négative en losange 80° avec un diamètre de cercle inscrit de 1/2'', une épaisseur de 3/16'' (désignation ANSI CN.. 43. ), coupe à gauche 75° avec queue déportée, hauteur de l'outil 1'' x largeur 1'' x longueur 6'' pour surfaçage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DCKNL 16 4D
Product Number6788544
Product FamilyCCNT(RL) EXT
Dimensions
Functional Length — in (LF)0.236"
Functional Length — mm (LF)152.0 mm
Tool Information
Reference Numbers
EDP Number6788544
EAN3603602983053
File Type Download

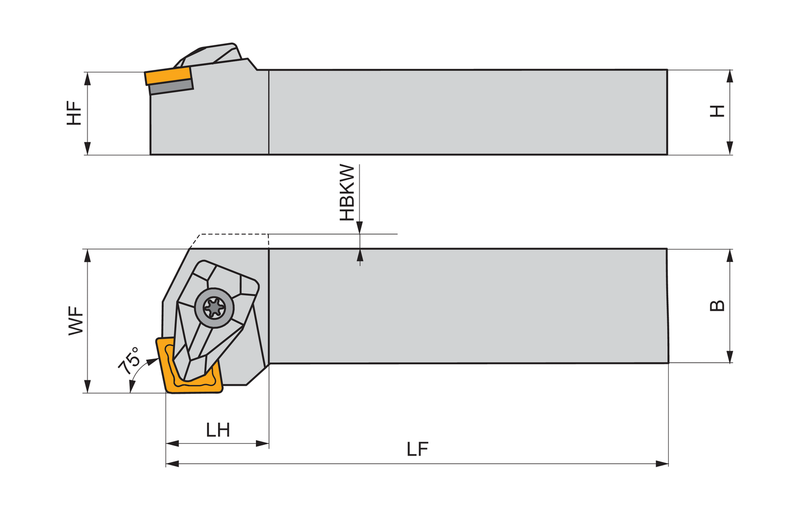

DCKNL 16 4D — Line Drawing PDF Download
