DSRNL 24 6D
DSRNL 24 6D
DSRNL 24 6D

DSRNL 24 6D

UGC DOR6788582
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$295.00 CAD - $295.00 CAD
$295.00 CAD
$295.00 CAD - $295.00 CAD
$295.00 CAD

Vendu en lots de : 1

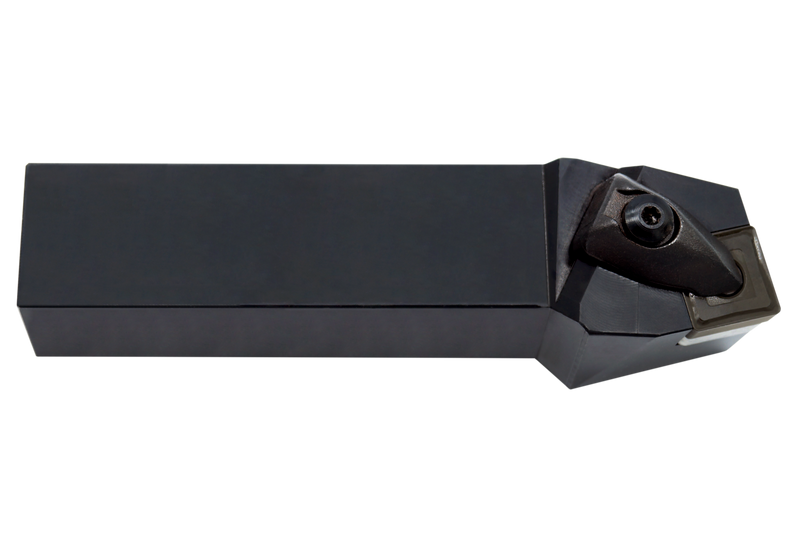

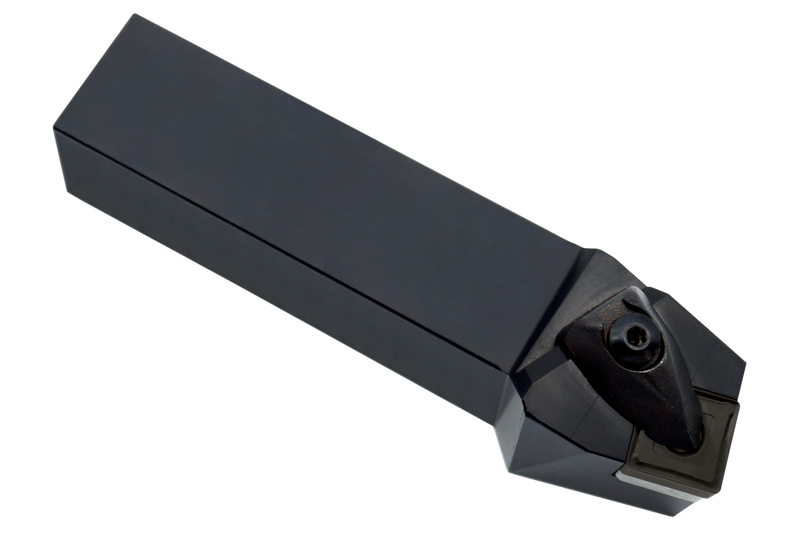

Outil de tournage à double bridage pour plaquette carrée négative, diamètre du cercle inscrit de 3/4'', épaisseur de 1/4'' (désignation ANSI SN.. 64. ), coupe latérale à gauche à 75° avec queue déportée, hauteur d'outil 1,1/2'' x largeur 1,1/2'' x longueur 6'' pour le tournage conique et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI)DSRNL 24 6D
Product Name (ISO)DSRNL 24 6J
Product Number6788582
Product FamilyDSRN(RL) EXT
Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Tool Information
Reference Numbers
EDP Number6788582
EAN3603602983435
File Type Download

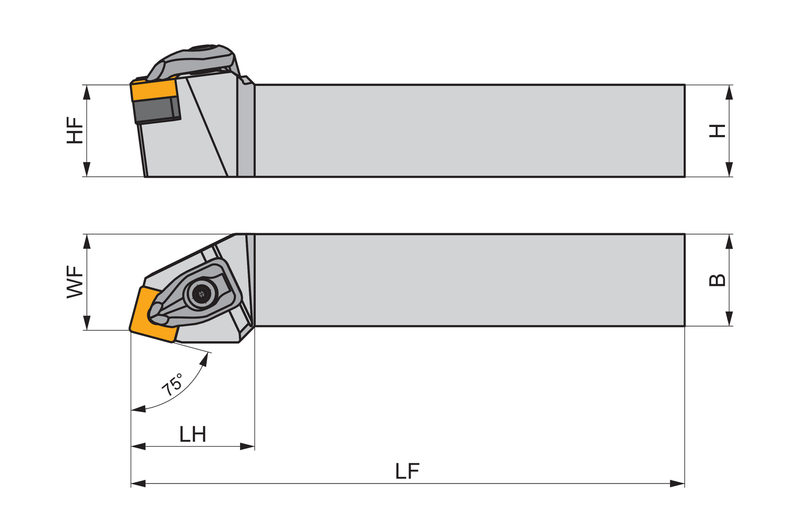

DSRNL 24 6D — Line Drawing PDF Download
