DSRNR 20 5D
DSRNR 20 5D
DSRNR 20 5D

DSRNR 20 5D

UGC DOR6788586
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.00 CAD - $180.00 CAD
$180.00 CAD
$180.00 CAD - $180.00 CAD
$180.00 CAD

Vendu en lots de : 1

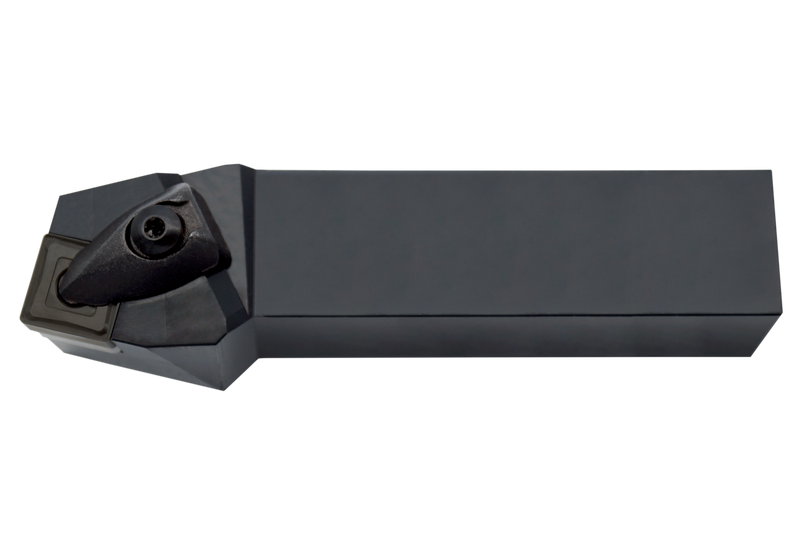

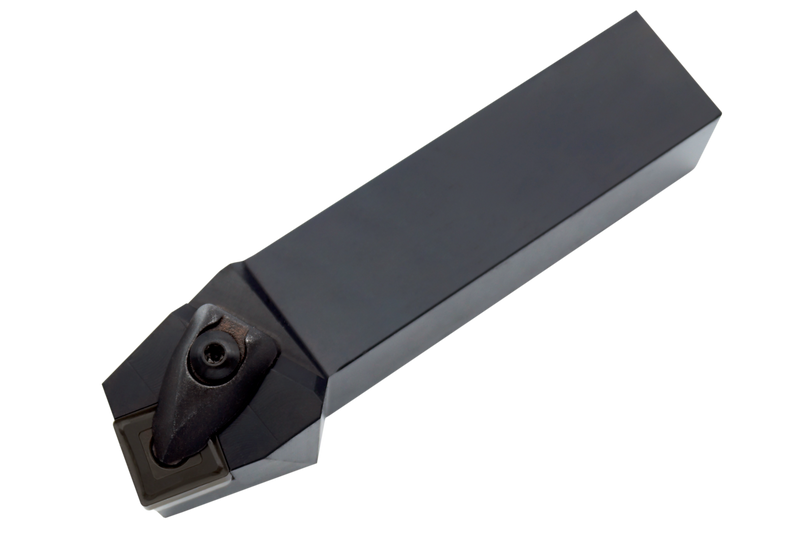

Outil de tournage à double bride pour plaquette carrée négative avec un diamètre de cercle inscrit de 5/8'', épaisseur de 1/4'' (désignation ANSI SN.. 54.), coupe à droite de 75° avec corps déporté, hauteur d'outil de 1,1/4'' x largeur de 1,1/4'' x longueur de 6'' pour le chariotage conique et longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI)DSRNR 20 5J
Product Name (ISO)DSRNR 20 5D
Product Number6788586
Product FamilyDSRN(RL) EXT
Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Tool Information
Reference Numbers
EDP Number6788586
EAN3603602983473
File Type Download

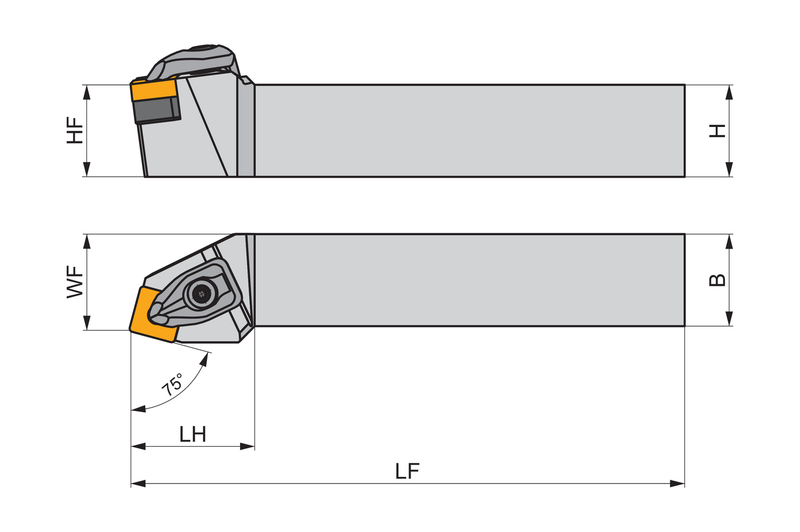

DSRNR 20 5D — Line Drawing PDF Download
