DDSRN 16 4D
DDSRN 16 4D

DDSRN 16 4D

UGC DOR6788591
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

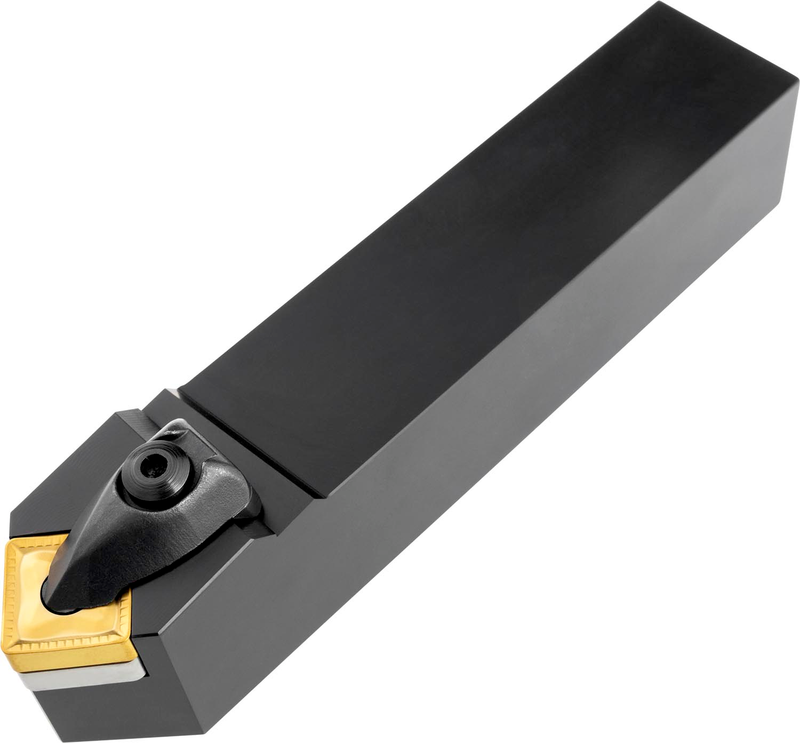

Outil de tournage à double bride pour plaquette négative carrée avec un diamètre de cercle inscrit de 1/2'', épaisseur de 3/16'' (désignation ANSI SN.. 43.), main neutre, coupe latérale à 45° avec queue droite, hauteur d'outil de 1'' x largeur de 1'' x longueur de 6'' pour le chanfreinage, le tournage conique, le tournage de copiage unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSDNN 16 4D
Product Number6788591
Product FamilyDSDNN EXT
Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number6788591
EAN3603602983527
File Type Download

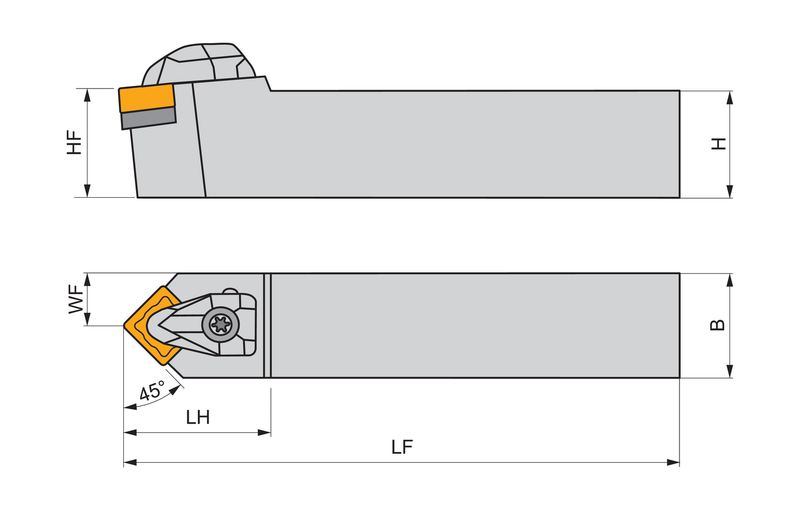

DDSRN 16 4D — Line Drawing PDF Download
