DSDNN 20 6J
DSDNN 20 6J

DSDNN 20 6J

UGC DOR6788593
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$180.00 CAD - $180.00 CAD
$180.00 CAD
$180.00 CAD - $180.00 CAD
$180.00 CAD

Vendu en lots de : 1

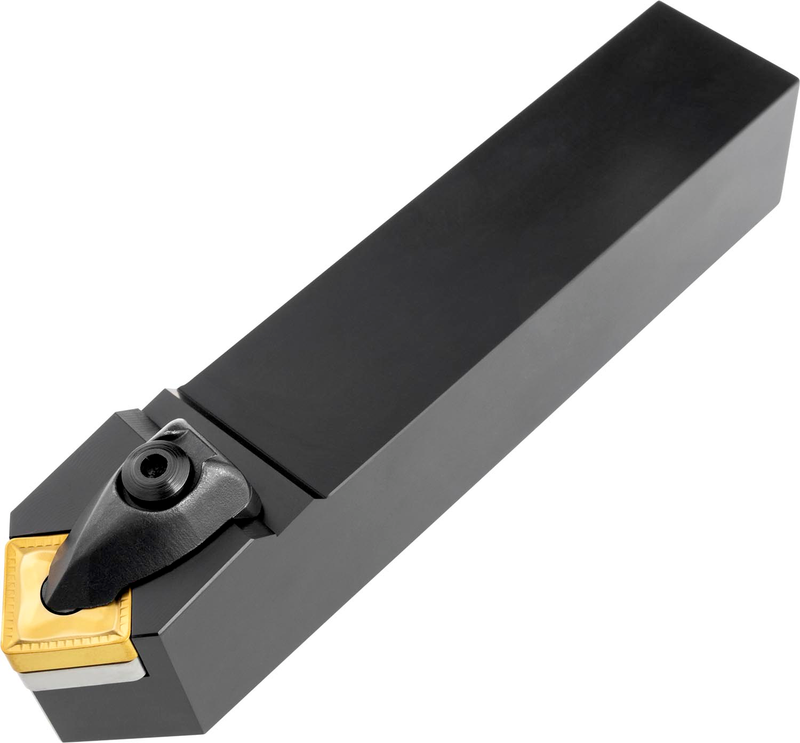

Outil de tournage à double bride pour plaquette carrée négative avec un diamètre de cercle inscrit de 3/4'', épaisseur de 1/4'' (désignation ANSI SN.. 64.), main neutre, angle de coupe de 45° avec queue droite, hauteur d'outil de 1.1/4'' x largeur de 1.1/4'' x longueur de 6'' pour le chanfreinage, le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI)DSDNN 20 6D
Product Name (ISO)DSDNN 20 6J
Product Number6788593
Product FamilyDSDNN EXT
Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Tool Information
Direction of ToolNeutre
Reference Numbers
EDP Number6788593
EAN3603602983541
File Type Download

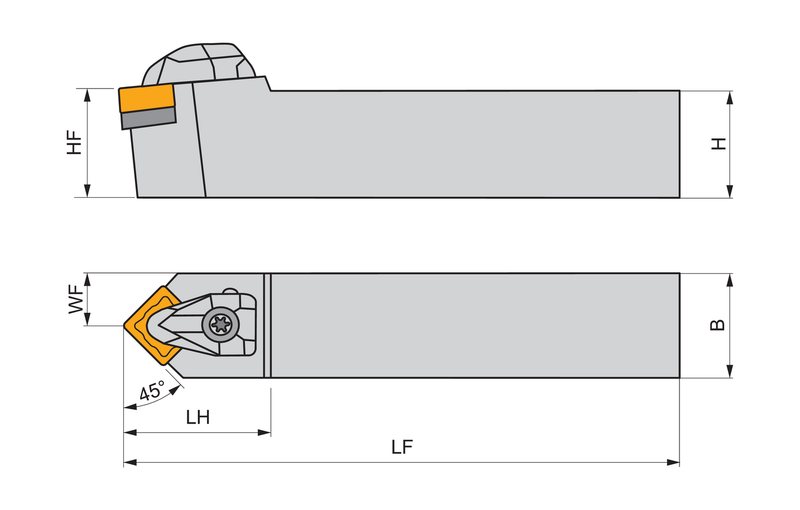

DSDNN 20 6J — Line Drawing PDF Download
