DSKNR 16 4D
DSKNR 16 4D

DSKNR 16 4D

UGC DOR6788597
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

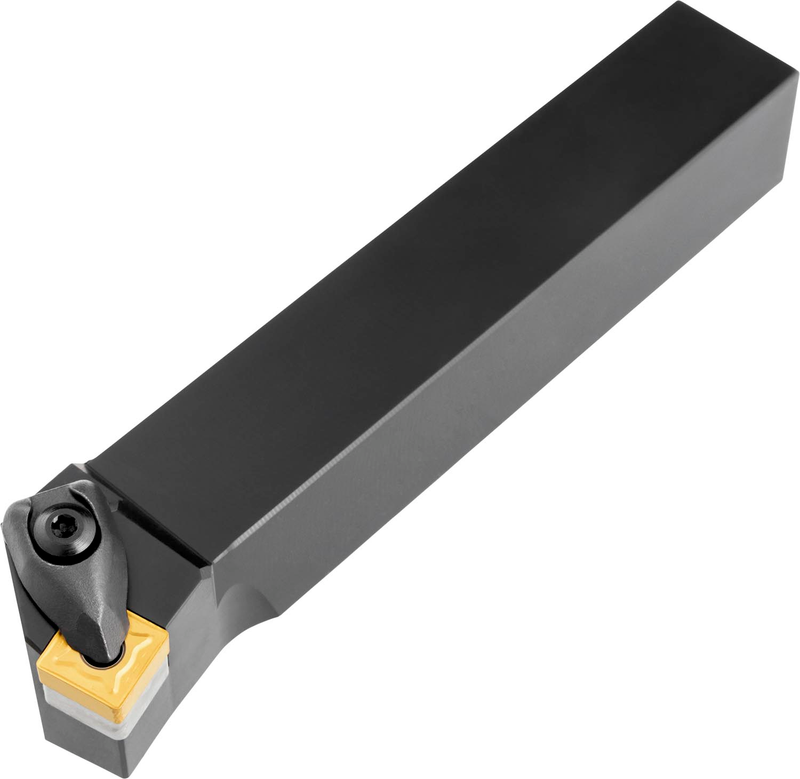

Outil de tournage à double bride pour plaquette négative carrée avec un diamètre de cercle inscrit de 12,7 mm (1/2''), 4,76 mm (3/16'') d'épaisseur (désignation ANSI SN.. 43.), coupe à droite de 75° avec tige déportée, hauteur d'outil de 25,4 mm (1'') x largeur de 25,4 mm (1'') x 152,4 mm (6'') de long pour le surfaçage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSKNR 16 4D
Product Number6788597
Product FamilyDSKN(RL) EXT
Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Tool Information
Reference Numbers
EDP Number6788597
EAN3603602983589
File Type Download

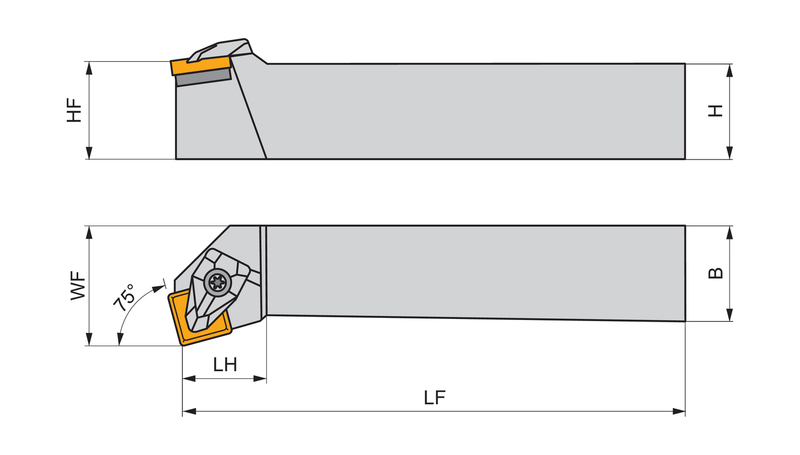

DSKNR 16 4D — Line Drawing PDF Download
