DSSNL 16 4D
DSSNL 16 4D

DSSNL 16 4D

UGC DOR6788600
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

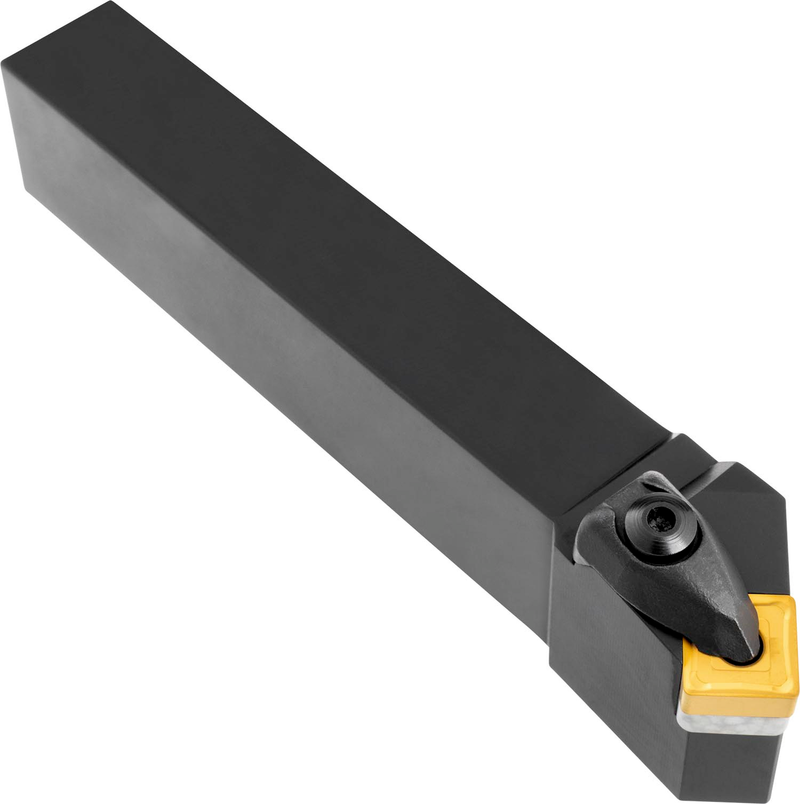

Outil de tournage à double bride pour insert carré négatif avec un diamètre de cercle inscrit de 1/2'', 3/16'' d'épaisseur (désignation ANSI SN.. 43), coupe latérale à gauche de 45° avec corps déporté, hauteur d'outil 1'' x largeur 1'' x longueur 6'' pour chanfreinage, tournage conique, copiage unidirectionnel et multidirectionnel, surfaçage sans épaulement et tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSSNL 16 4D
Product Number6788600
Product FamilyDSSN(RL) EXT
Dimensions
Overall Length — in (OAL)6.327"
Overall Length — mm (OAL)161.0 mm
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Shank Height — mm (H)1.0 mm
Tool Information
Reference Numbers
EDP Number6788600
EAN3603602983619
File Type Download

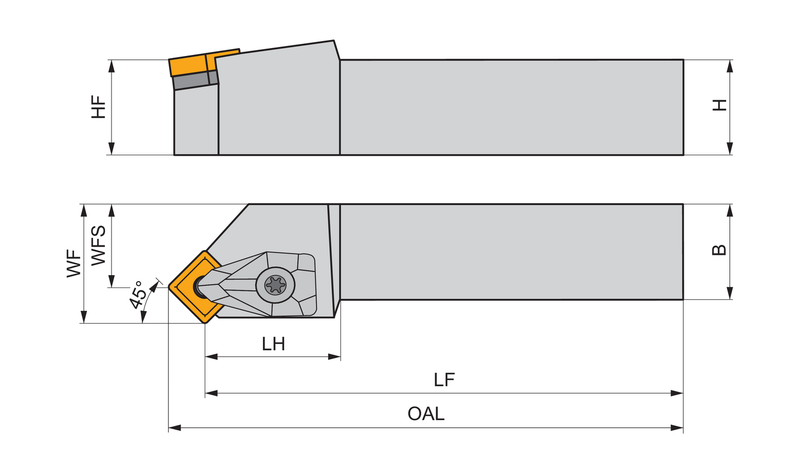

DSSNL 16 4D — Line Drawing PDF Download
