DSSNR 12 4B
DSSNR 12 4B

DSSNR 12 4B

UGC DOR6788604
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$156.00 CAD - $156.00 CAD
$156.00 CAD
$156.00 CAD - $156.00 CAD
$156.00 CAD

Vendu en lots de : 1

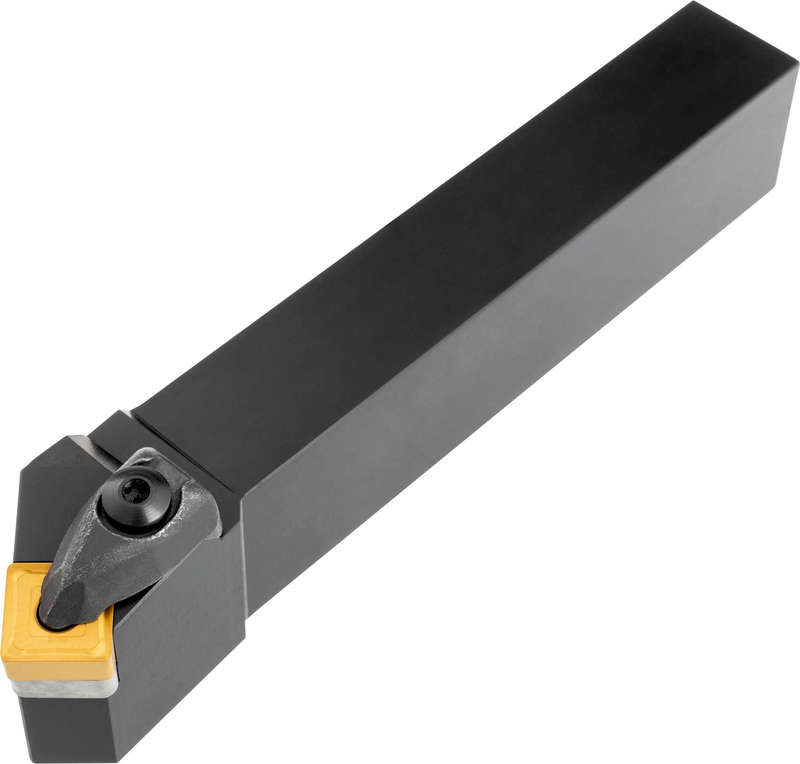

Outil de tournage à double bridage pour plaquette carrée négative, diamètre de cercle inscrit de 1/2'', épaisseur de 3/16'' (désignation ANSI SN.. 43.), coupe à droite à 45° avec corps déporté, hauteur d'outil de 3/4'' x largeur de 3/4'' x longueur de 4.1/2'' pour le chanfreinage, le tournage conique, le tournage de copiage unidirectionnel et multidirectionnel, le dressage sans épaulement et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSSNR 12 4B
Product Number6788604
Product FamilyDSSN(RL) EXT
Dimensions
Overall Length — in (OAL)4.88"
Overall Length — mm (OAL)124.0 mm
Functional Length — in (LF)4.5"
Functional Length — mm (LF)114.0 mm
Shank Height — mm (H)0.75 mm
Tool Information
Reference Numbers
EDP Number6788604
EAN3603602983657
File Type Download

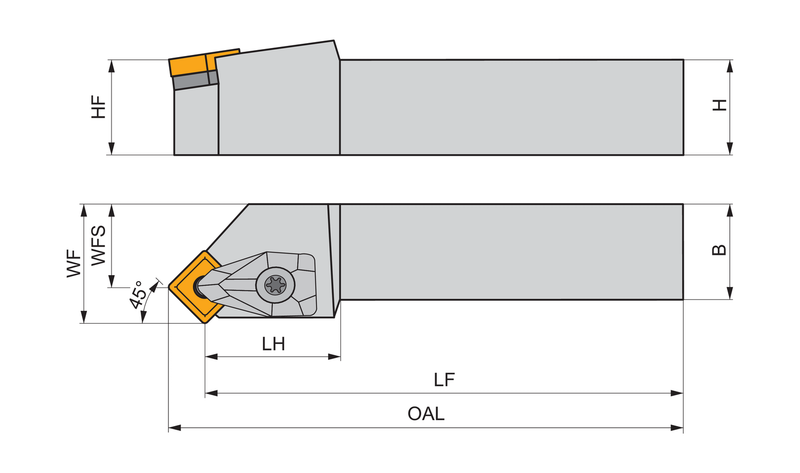

DSSNR 12 4B — Line Drawing PDF Download
