DSSNR 16 4D
DSSNR 16 4D

DSSNR 16 4D

UGC DOR6788605
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

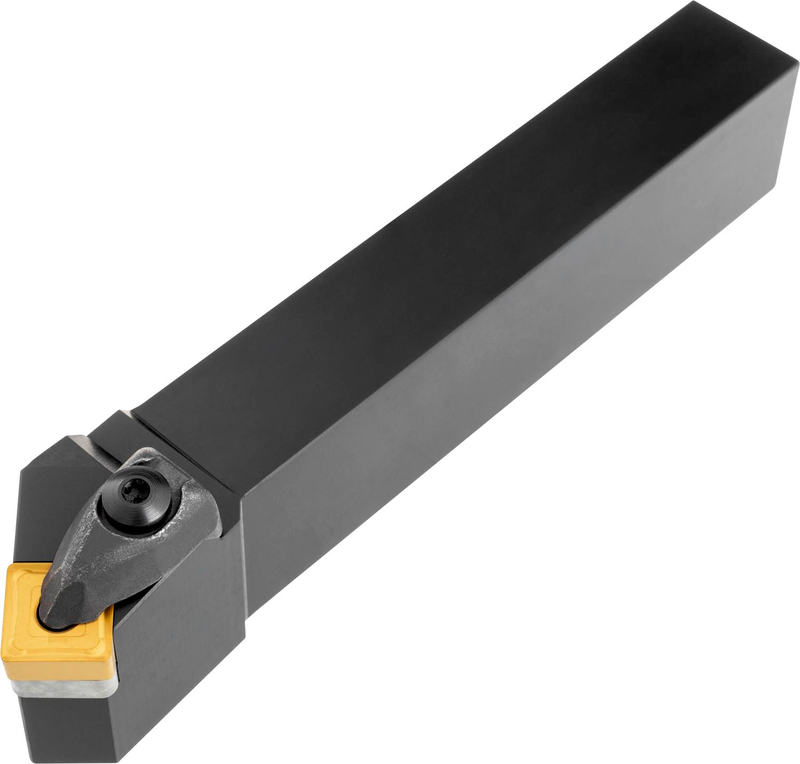

Outil de tournage à double bride pour plaquette carrée négative d'un diamètre de cercle inscrit de 1/2'', d'une épaisseur de 3/16'' (désignation ANSI SN.. 43.), à droite, de coupe latérale à 45° avec queue déportée, hauteur d'outil 1'' x largeur 1'' x longueur 6'' pour le chanfreinage, le tournage conique, le copiage monodirectionnel et multidirectionnel, le surfaçage sans épaulement et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)DSSNR 16 4D
Product Number6788605
Product FamilyDSSN(RL) EXT

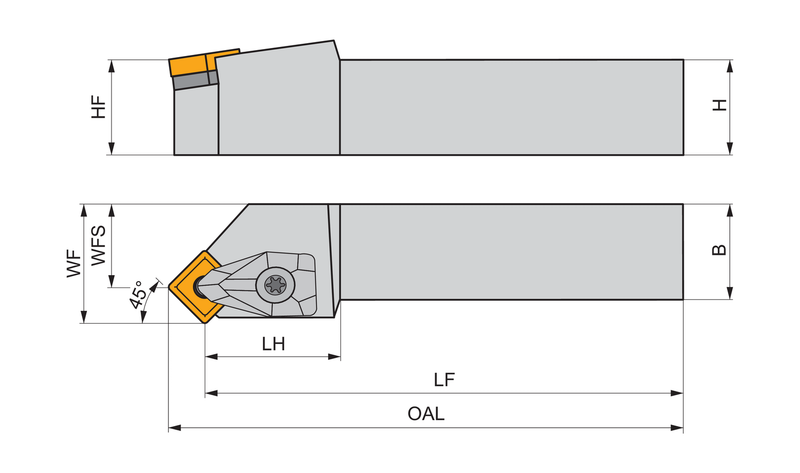

Dimensions
Overall Length — in (OAL)6.327"
Overall Length — mm (OAL)161.0 mm
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Shank Height — mm (H)1.0 mm
Tool Information
Reference Numbers
EDP Number6788605
EAN3603602983664
File Type Download
DSSNR 16 4D — Line Drawing PDF Download
