DTTNL 16 4D
DTTNL 16 4D
DTTNL 16 4D

DTTNL 16 4D

UGC DOR6788620
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$165.00 CAD - $165.00 CAD
$165.00 CAD
$165.00 CAD - $165.00 CAD
$165.00 CAD

Vendu en lots de : 1

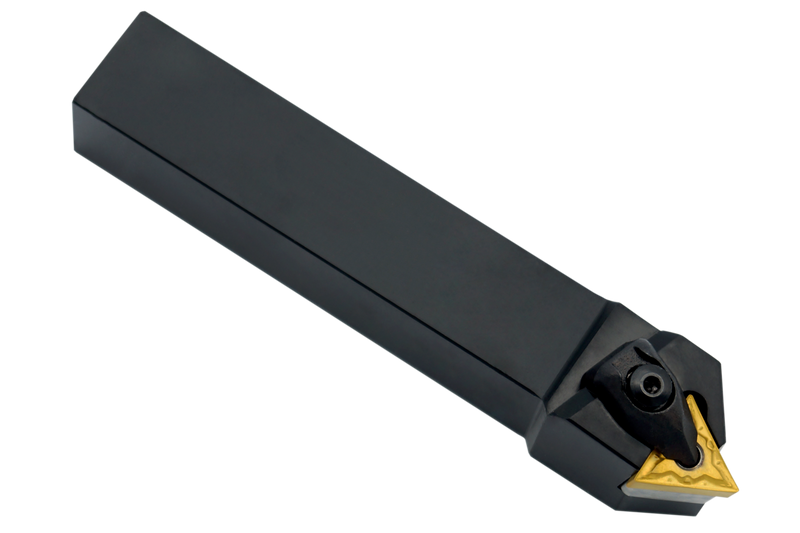

Outil de tournage à double bride pour plaquette négative triangulaire avec un diamètre de cercle inscrit de 1/2'', une épaisseur de 3/16'' (désignation ANSI TN.. 43.), coupe latérale gauche à 60° avec queue déportée, hauteur d'outil de 1'' x largeur de 1'' x longueur de 6'' pour le tournage conique et le copiage unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI)TTNL 16 4D
Product Name (ISO)DTTNL 16 4D
Product Number6788620
Product FamilyDTTN(RL) EXT
Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Tool Information
Reference Numbers
EDP Number6788620
EAN3603602983817
File Type Download

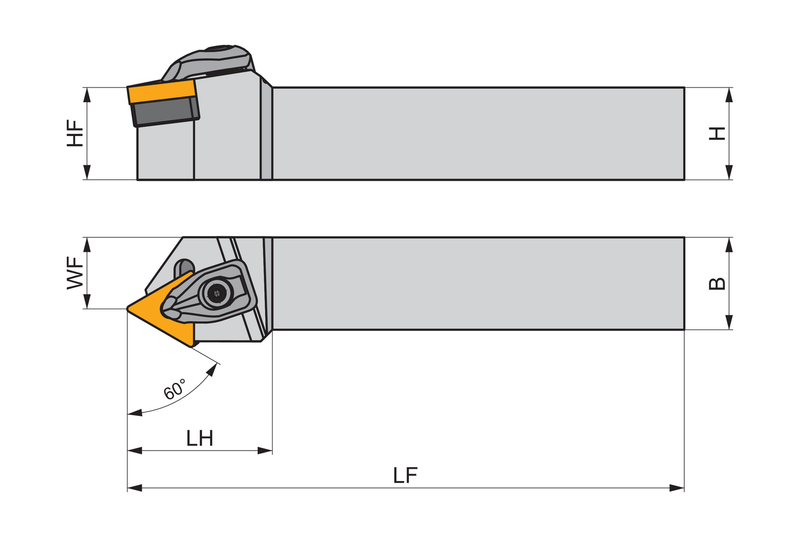

DTTNL 16 4D — Line Drawing PDF Download
