A16T-DDUNL 3
A16T-DDUNL 3

A16T-DDUNL 3

UGC DOR6788635
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$423.00 CAD - $423.00 CAD
$423.00 CAD
$423.00 CAD - $423.00 CAD
$423.00 CAD

Vendu en lots de : 1

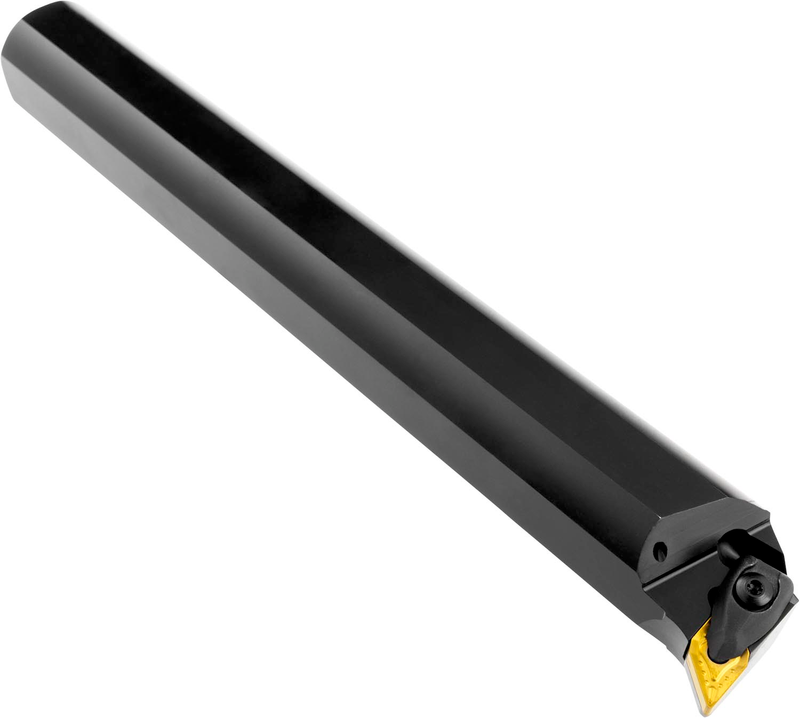

Barre d'alésage à double serrage pour plaquette négative en losange 55° avec un diamètre de cercle inscrit de 3/8'', épaisseur de 3/16'' (désignation ANSI DN.. 33.), coupe à gauche 93° avec queue déportée, acier avec trou d'arrosage, 1'' de diamètre x 12'' de long pour chanfreinage interne, alésage conique, alésage de copie unidirectionnel et multidirectionnel et alésage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A16T-DDUNL 3
Product Number6788635
Product FamilyDDUN(RL) INT

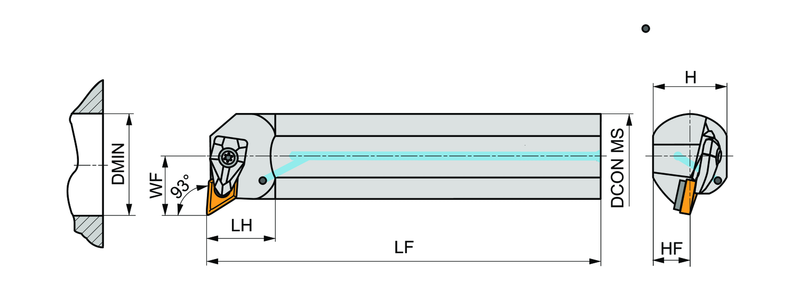

Dimensions
Functional Length — in (LF)12.0"
Functional Length — mm (LF)305.0 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.299"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number6788635
EAN3603602983961
File Type Download
A16T-DDUNL 3 — Line Drawing PDF Download
