A16T-SVQBR 3
A16T-SVQBR 3
A16T-SVQBR 3

A16T-SVQBR 3

UGC DOR6788638
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$293.00 CAD - $293.00 CAD
$293.00 CAD
$293.00 CAD - $293.00 CAD
$293.00 CAD

Vendu en lots de : 1

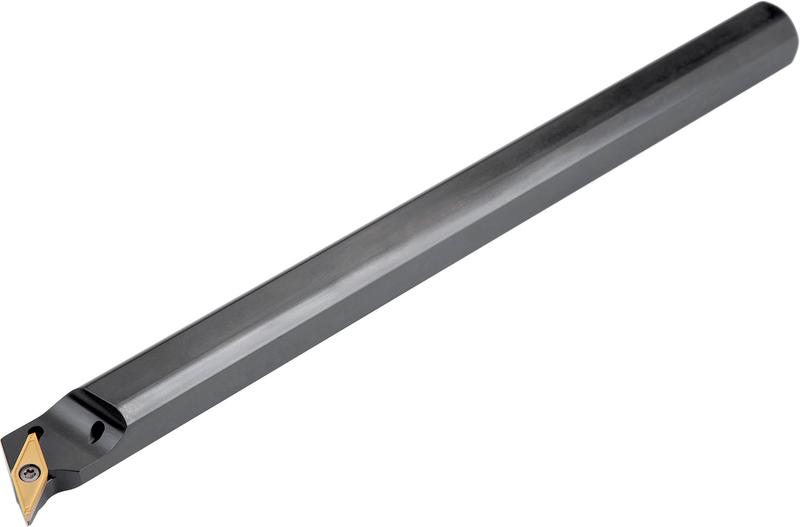

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde de 35° avec cercle inscrit de 3/8'', 3/16'' d'épaisseur (désignation ANSI VB.. 33.), à droite 107°30' coupe en bout avec queue déportée, acier avec trou d'arrosage, 1'' de diamètre x 12'' de long pour alésage de copiage unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A16T-SVQBR 3
Product Number6788638
Product FamilySVQB(C)(RL) INT

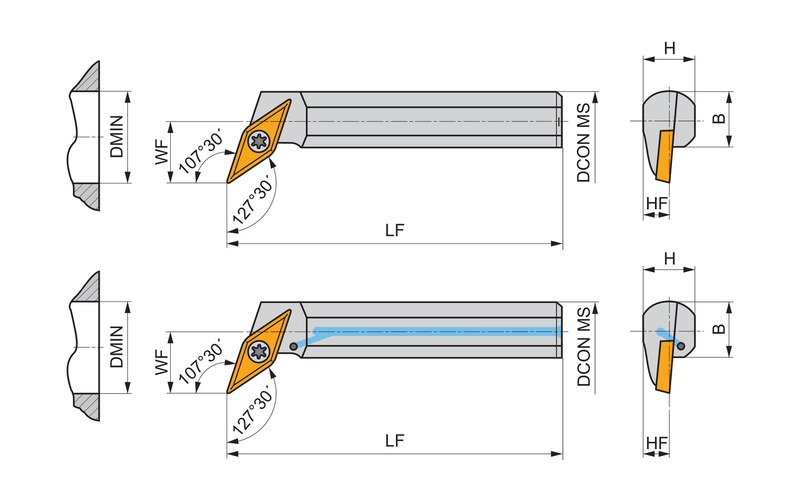

Dimensions
Functional Length — in (LF)12.0"
Functional Length — mm (LF)305.0 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.0 mm
Shank Height — mm (H)0.906 mm
Min. Bore Dia. — in (DMIN)1.299"
Tool Information
Reference Numbers
EDP Number6788638
EAN3603602983992
File Type Download
A16T-SVQBR 3 — Line Drawing PDF Download
