A20T-SDZCL 3-93
A20T-SDZCL 3-93
A20T-SDZCL 3-93

A20T-SDZCL 3-93

UGC DOR6788639
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$385.00 CAD - $385.00 CAD
$385.00 CAD
$385.00 CAD - $385.00 CAD
$385.00 CAD

Vendu en lots de : 1

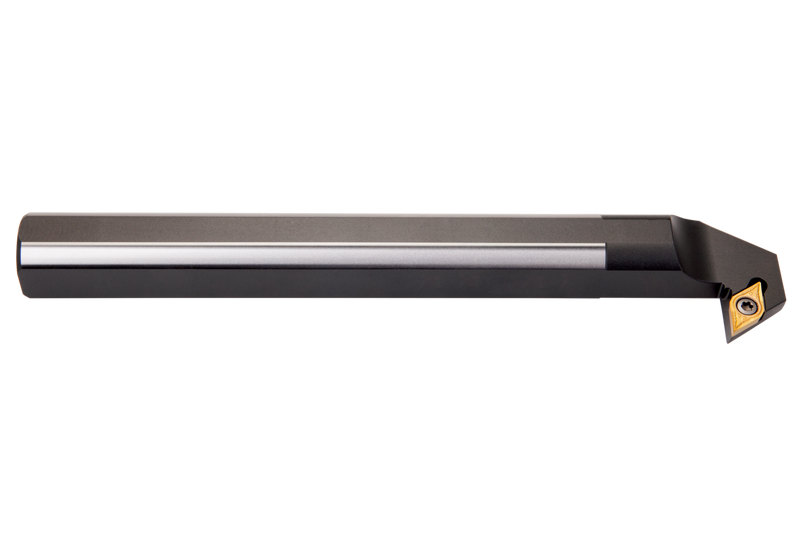

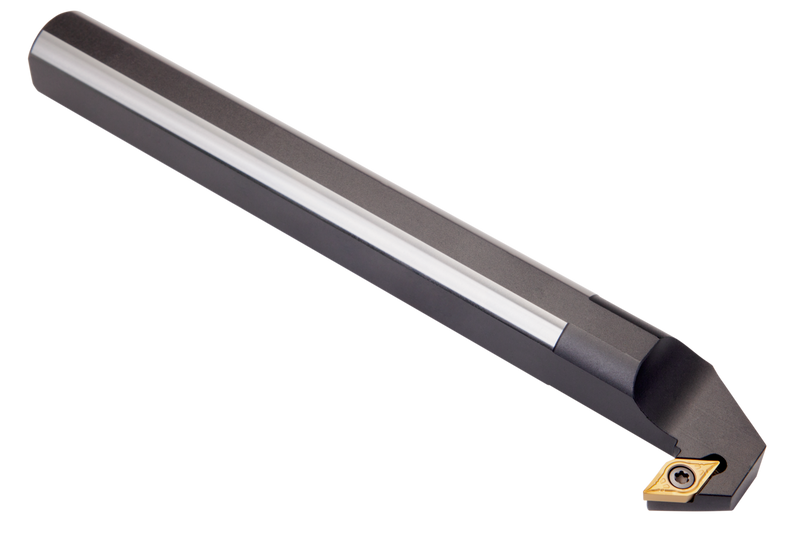

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 55° avec cercle inscrit de 3/8'', épaisseur 5/32'' (désignation ANSI DC.. 32.5.), pour usinage arrière à gauche, queue déportée, acier avec trou d'arrosage, diamètre 1.1/4'' x 12'' de long pour chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20T-SDZCL 3-93
Product Number6788639
Product FamilySDZC(RL) INT

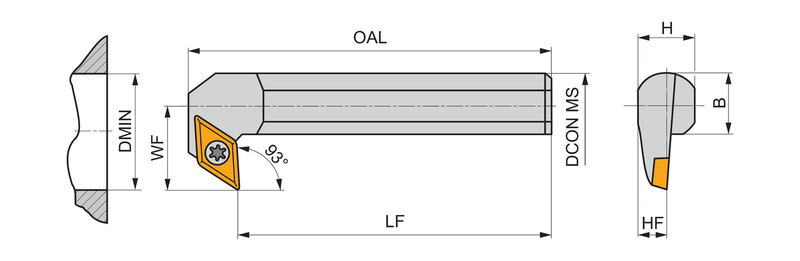

Dimensions
Overall Length — in (OAL)12.658"
Overall Length — mm (OAL)322.0 mm
Functional Length — in (LF)12.0"
Functional Length — mm (LF)305.0 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.182 mm
Min. Bore Dia. — in (DMIN)1.579"
Tool Information
Reference Numbers
EDP Number6788639
EAN3603602984005
File Type Download
A20T-SDZCL 3-93 — Line Drawing PDF Download
