A20T-SVQBL 3
A20T-SVQBL 3
A20T-SVQBL 3

A20T-SVQBL 3

UGC DOR6788643
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$407.00 CAD - $407.00 CAD
$407.00 CAD
$407.00 CAD - $407.00 CAD
$407.00 CAD

Vendu en lots de : 1

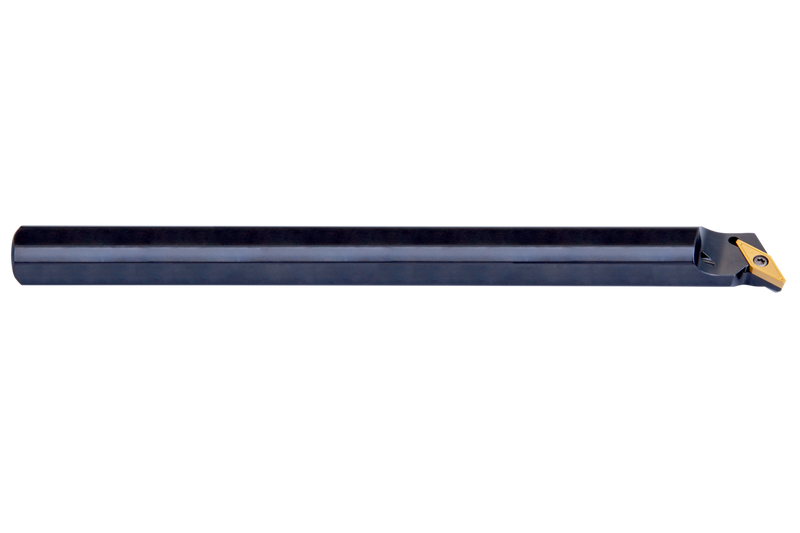

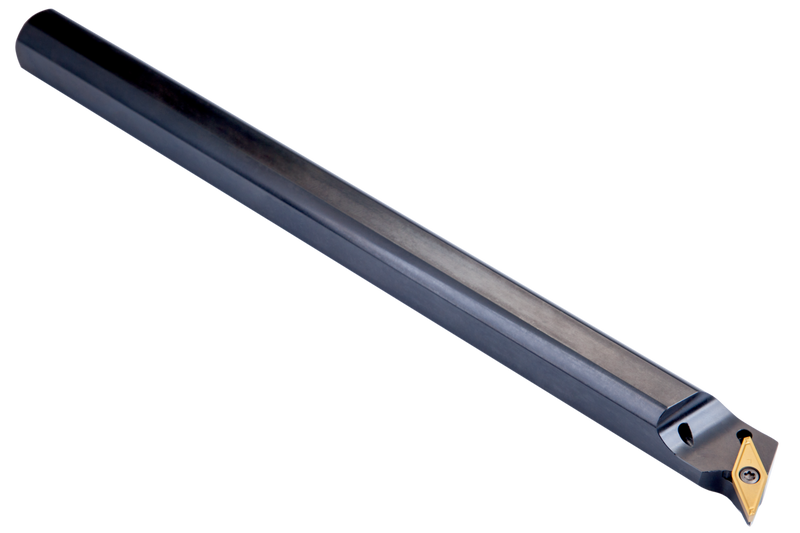

Barre d'alésage à bridage par vis pour plaquette positive rhomboïde 35° avec un diamètre de cercle inscrit de 3/8'', 3/16'' d'épaisseur (désignation ANSI VB.. 33.), coupe à gauche 107°30' avec queue déportée, en acier avec trou d'arrosage, 1.1/4'' de diamètre x 12'' de long pour alésage de reproduction unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20T-SVQBL 3
Product Number6788643
Product FamilySVQB(C)(RL) INT

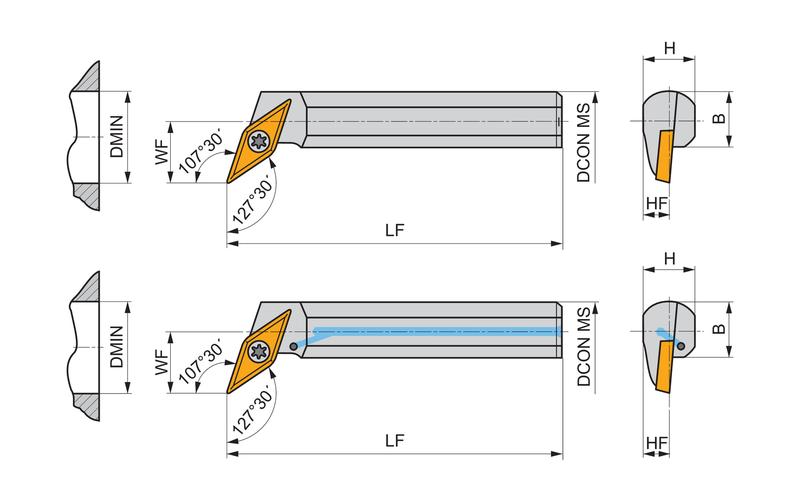

Dimensions
Functional Length — in (LF)12.0"
Functional Length — mm (LF)305.0 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.579"
Tool Information
Reference Numbers
EDP Number6788643
EAN3603602984043
File Type Download
A20T-SVQBL 3 — Line Drawing PDF Download
