A20T-SVUBL 3
A20T-SVUBL 3
A20T-SVUBL 3

A20T-SVUBL 3

UGC DOR6788645
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$407.00 CAD - $407.00 CAD
$407.00 CAD
$407.00 CAD - $407.00 CAD
$407.00 CAD

Vendu en lots de : 1

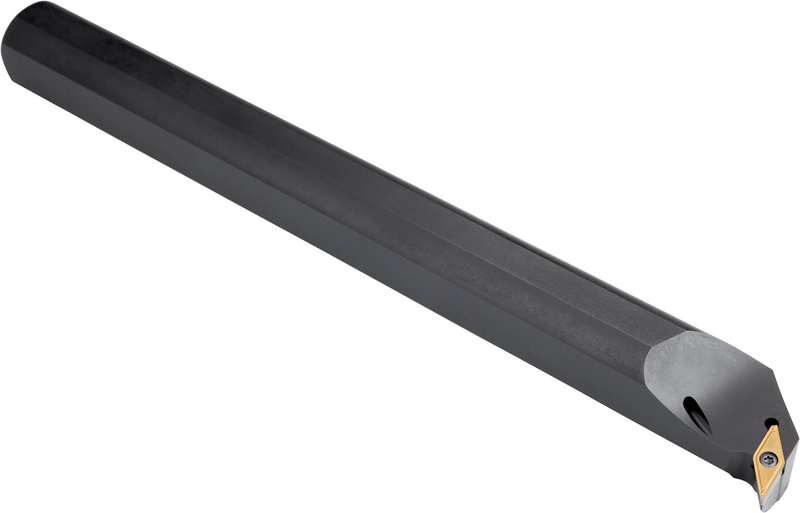

Barre d'alésage à mors pour plaquette positive en forme de losange à 35° avec un diamètre de cercle inscrit de 3/8'' (9,52 mm), épaisseur de 3/16'' (4,76 mm) (désignation ANSI VB.. 33.), coupe à gauche à 93° avec queue déportée, en acier avec trou d'arrosage, 1,1/4'' (31,75 mm) de diamètre x 12'' (304,8 mm) de long pour l'alésage par copiage unidirectionnel et multidirectionnel et le chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20T-SVUBL 3
Product Number6788645
Product FamilySVUB(C)(RL) INT
Dimensions
Functional Length — in (LF)12.0"
Functional Length — mm (LF)305.0 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.705"
Tool Information
Direction of ToolGauche
Reference Numbers
EDP Number6788645
EAN3603602984067
File Type Download

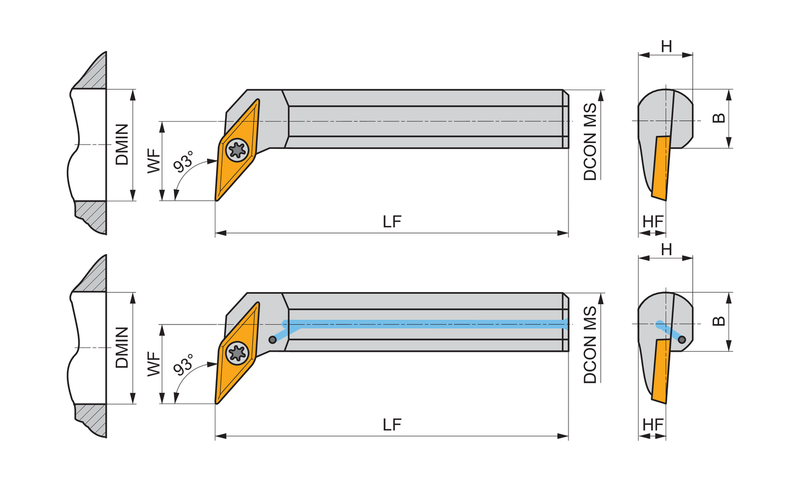

A20T-SVUBL 3 — Line Drawing PDF Download
