UGC DOR6788646
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$407.00 CAD - $407.00 CAD
$407.00 CAD
$407.00 CAD - $407.00 CAD
$407.00 CAD

Vendu en lots de : 1

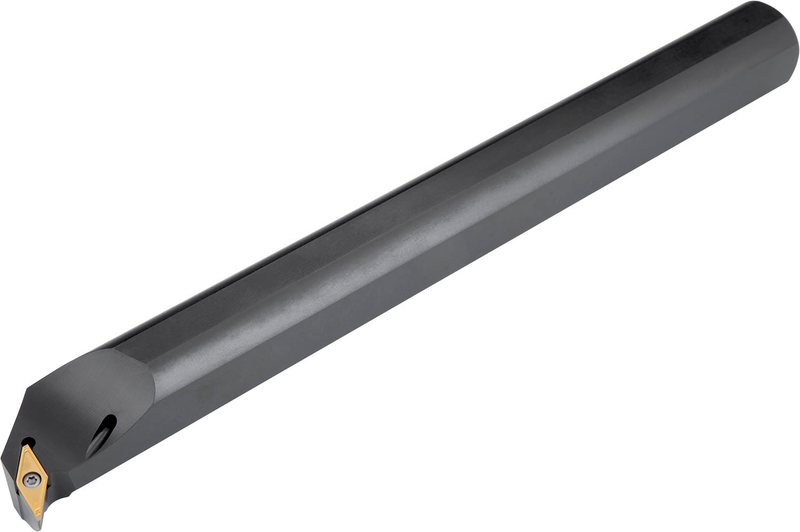

Barre d'alésage à serrage par vis pour plaquette positive rhomboïde 35° avec un diamètre de cercle inscrit de 3/8'', 3/16'' d'épaisseur (désignation ANSI VB.. 33. ), à coupe axiale de 93° à droite avec queue déportée, en acier avec trou d'arrosage, diamètre 1.1/4'' x 12'' de long pour l'alésage de copiage unidirectionnel et multidirectionnel et le chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A20T-SVUBR 3
Product Number6788646
Product FamilySVUB(C)(RL) INT

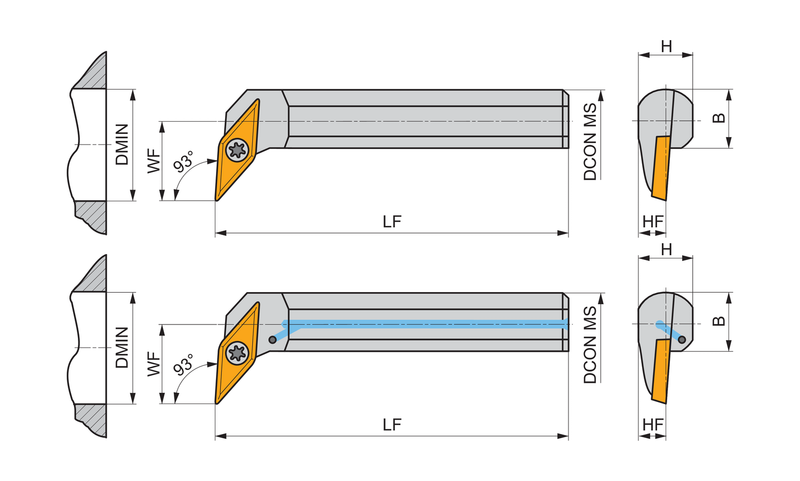

Dimensions
Functional Length — in (LF)12.0"
Functional Length — mm (LF)305.0 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.705"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6788646
EAN3603602984074
File Type Download
A20T-SVUBR 3 — Line Drawing PDF Download
