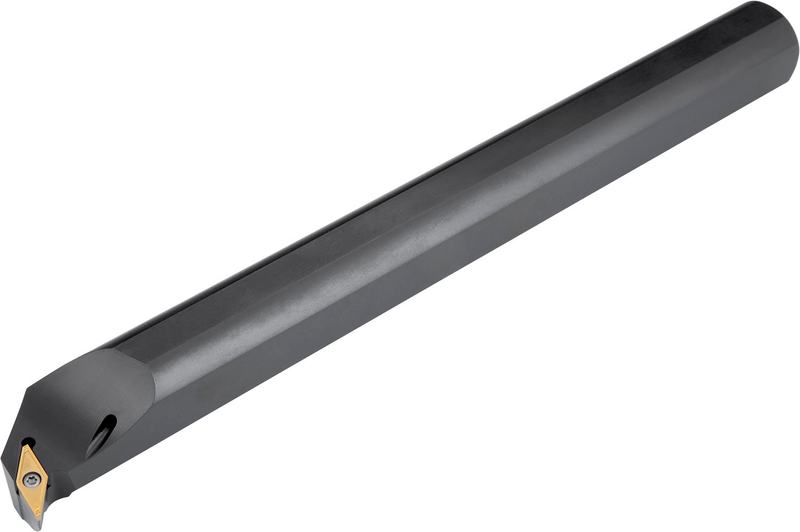

Alésoir à barres à serrage par vis pour plaquette positive rhomboïde 35° avec un diamètre de cercle inscrit de 3/8'' et une épaisseur de 3/16'' (désignation ANSI VB.. 33.), coupe à droite 93° avec queue déportée, en acier avec trou d'arrosage, diamètre 1.1/2'' x 12'' de long pour l'alésage de copiage uni et multi-directionnel et le chanfreinage arrière

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A24T-SVUBR 3
Product Number6788650
Product FamilySVUB(C)(RL) INT

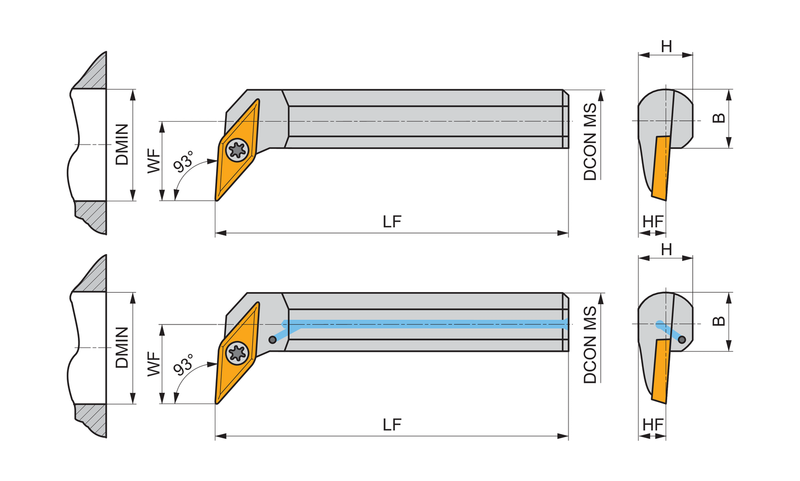

Dimensions
Functional Length — in (LF)12.0"
Functional Length — mm (LF)305.0 mm
Connection Dia. — in (DCON)1.5"
Connection Dia. — mm (DCON)38.0 mm
Shank Height — mm (H)1.374 mm
Min. Bore Dia. — in (DMIN)2.126"
Tool Information
Direction of ToolD'accord
Reference Numbers
EDP Number6788650
EAN3603602984111
File Type Download
A24T-SVUBR 3 — Line Drawing PDF Download
