SDJCL 12 3B
SDJCL 12 3B
SDJCL 12 3B

SDJCL 12 3B

UGC DOR6788663
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$168.00 CAD - $168.00 CAD
$168.00 CAD
$168.00 CAD - $168.00 CAD
$168.00 CAD

Vendu en lots de : 1

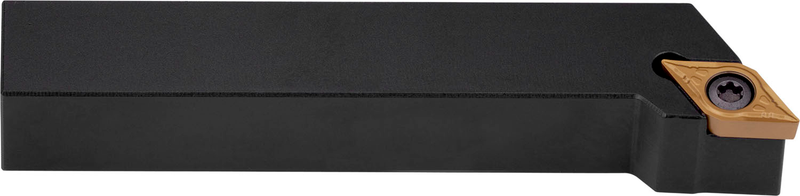

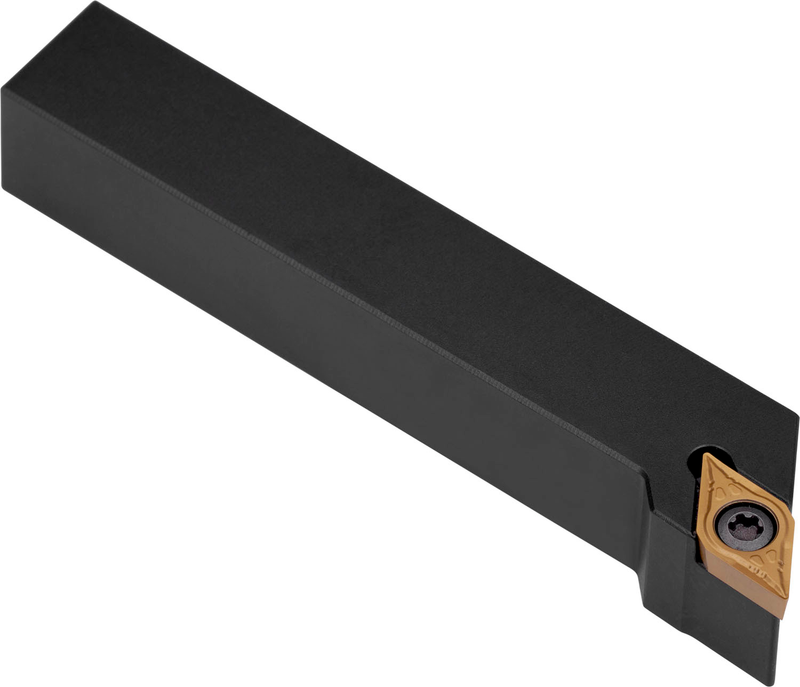

Outil de tournage à fixation par vis pour plaquette positive en losange 55° avec cercle inscrit de 3/8'', épaisseur 5/32'' (désignation ANSI DC.. 32.5.), coupe à gauche à 93° avec corps déporté, hauteur d'outil 3/4'' x largeur 3/4'' x longueur 4.1/2'' pour chanfreinage, tournage conique, copiage unidirectionnel et multidirectionnel, et tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDJCL 12 3B
Product Number6788663
Product FamilySDJC(RL) EXT
Dimensions
Functional Length — in (LF)4.5"
Functional Length — mm (LF)114.0 mm
Shank Height — mm (H)0.75 mm
Tool Information
Reference Numbers
EDP Number6788663
EAN3603602984241
File Type Download

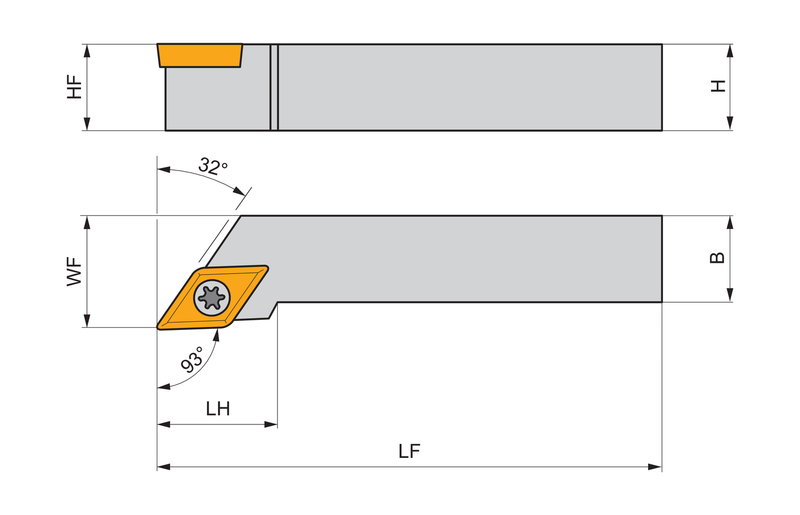

SDJCL 12 3B — Line Drawing PDF Download
