SDPCN 16 3C
SDPCN 16 3C
SDPCN 16 3C

SDPCN 16 3C

UGC DOR6788673
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$175.00 CAD - $175.00 CAD
$175.00 CAD
$175.00 CAD - $175.00 CAD
$175.00 CAD

Vendu en lots de : 1

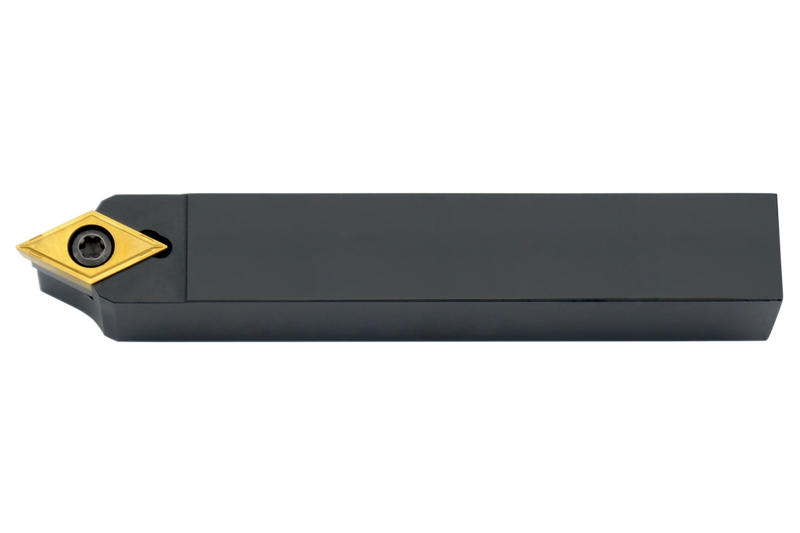

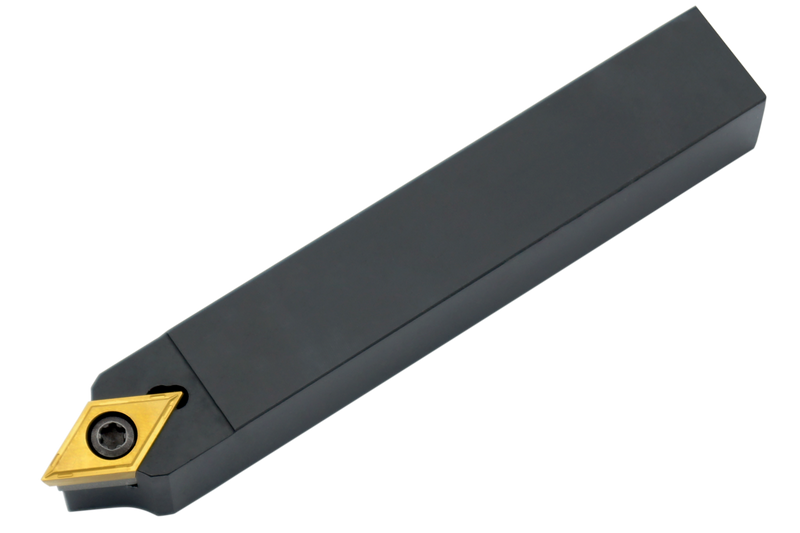

Outil de tournage à plaquette vissée pour plaquette positive en forme de losange de 55° avec un diamètre de cercle inscrit de 3/8'', 5/32'' d'épaisseur (désignation ANSI DC.. 32.5. ), main neutre 62.5°, coupe latérale gauche et droite, hauteur d'outil 1'' x largeur 1'' x longueur 5'' pour le copiage de tournage unidirectionnel et multidirectionnel

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDPCN 16 3C
Product Number6788673
Product FamilySDPCN EXT
Dimensions
Functional Length — in (LF)5.0"
Functional Length — mm (LF)127.0 mm
Tool Information
Reference Numbers
EDP Number6788673
EAN3603602984340
File Type Download

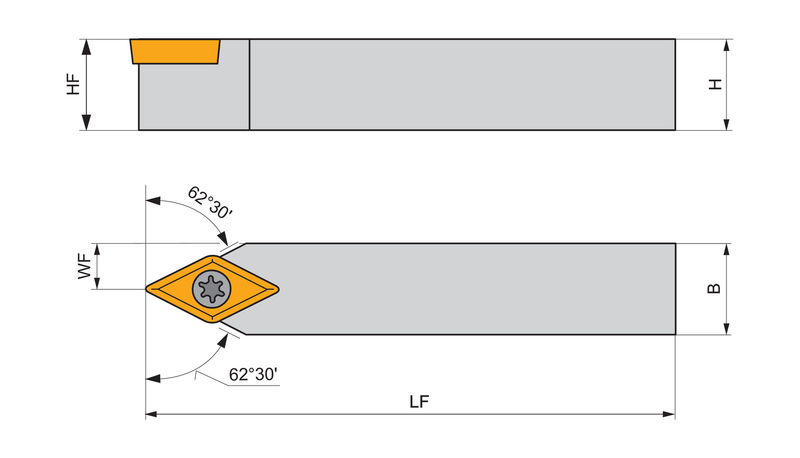

SDPCN 16 3C — Line Drawing PDF Download
