STGCL 16 3D
STGCL 16 3D
STGCL 16 3D

STGCL 16 3D

UGC DOR6788678
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$175.00 CAD - $175.00 CAD
$175.00 CAD
$175.00 CAD - $175.00 CAD
$175.00 CAD

Vendu en lots de : 1

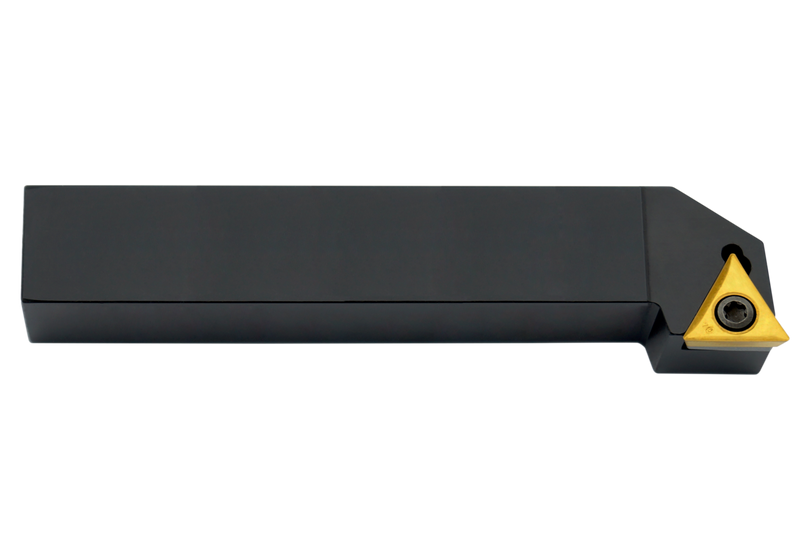

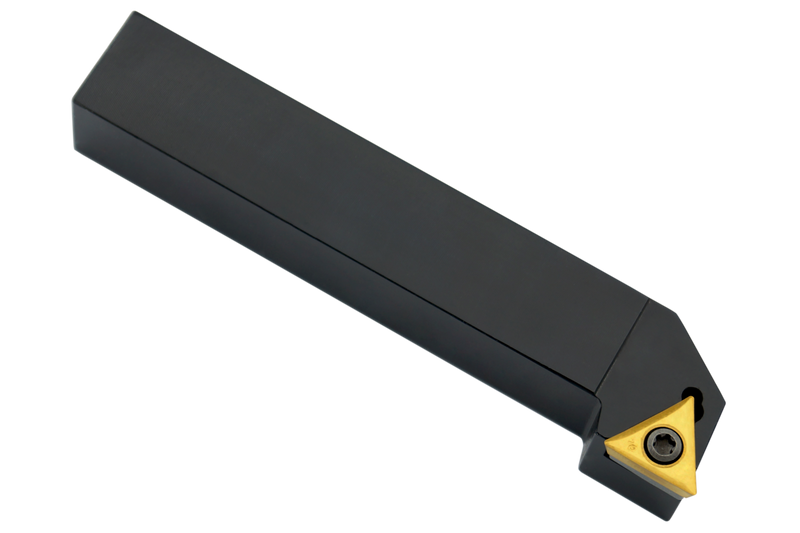

Outil de tournage à bride par vis pour plaquette triangulaire positive avec un cercle inscrit de 3/8'', 5/32'' d'épaisseur (désignation ANSI TC.. 32.5. ), coupe à gauche à 90° avec un corps déporté, hauteur d'outil de 1'' x 1'' de largeur x 6'' de longueur pour le tournage conique et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)STGCL 16 3D
Product Number6788678
Product FamilySTGC(RL) EXT

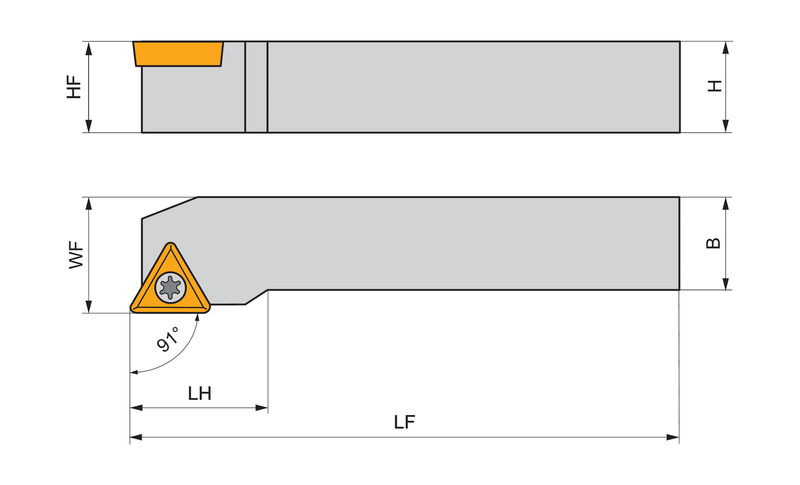

Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Tool Information
Reference Numbers
EDP Number6788678
EAN3603602984395
File Type Download
STGCL 16 3D — Line Drawing PDF Download
