STGCR 08 2
STGCR 08 2
STGCR 08 2

STGCR 08 2

UGC DOR6788679
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.00 CAD - $151.00 CAD
$151.00 CAD
$151.00 CAD - $151.00 CAD
$151.00 CAD

Vendu en lots de : 1

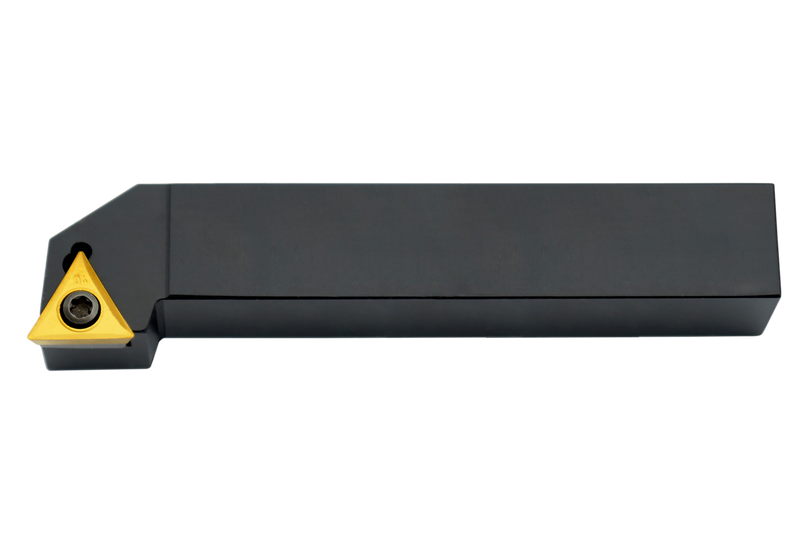

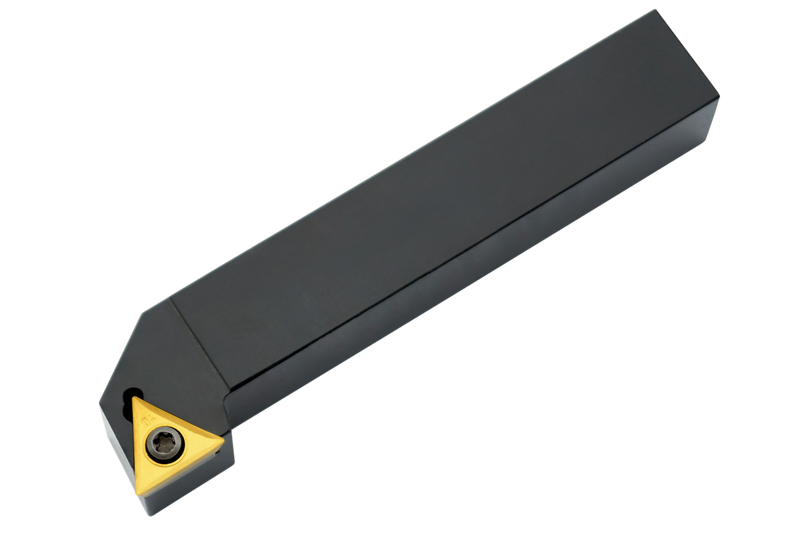

Outil de tournage à levier pour plaquette triangulaire positive avec un diamètre de cercle inscrit de 1/4'', 3/32'' d'épaisseur (désignation ANSI TC.. 21.5. ), 90° à droite avec corps déporté, hauteur d'outil de 1/2'' x largeur de 1/2'' x longueur de 3.1/2'' pour le chariotage de cônes et le chariotage sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)STGCR 08 2
Product Number6788679
Product FamilySTGC(RL) EXT
Dimensions
Functional Length — in (LF)3.5"
Functional Length — mm (LF)89.0 mm
Tool Information
Reference Numbers
EDP Number6788679
EAN3603602984401
File Type Download

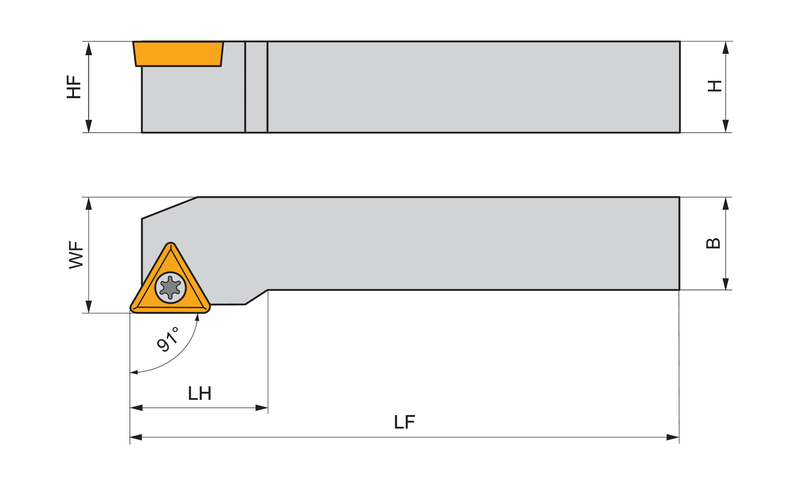

STGCR 08 2 — Line Drawing PDF Download
