SVJBL 12 2B
SVJBL 12 2B
SVJBL 12 2B

SVJBL 12 2B

UGC DOR6788686
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$186.00 CAD - $186.00 CAD
$186.00 CAD
$186.00 CAD - $186.00 CAD
$186.00 CAD

Vendu en lots de : 1

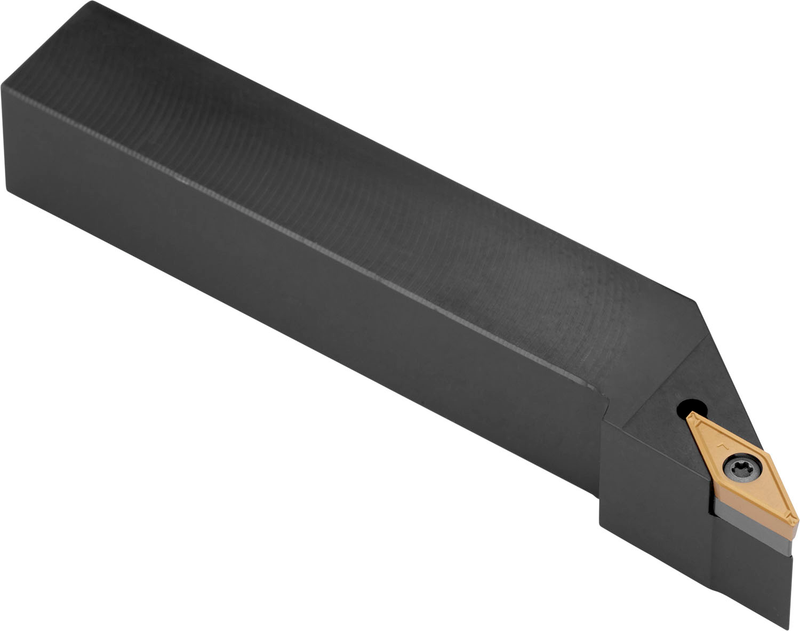

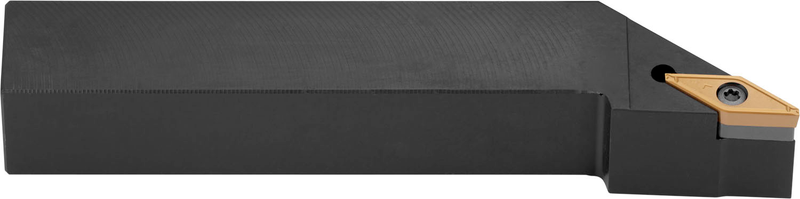

Outil de chariotage à bride pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 1/4'', 1/8'' d'épaisseur (désignation ANSI VB.. 22. ), coupe latérale à gauche à 93° avec corps déporté, hauteur d'outil de 3/4'' x 3/4'' de largeur x 4.1/2'' de longueur pour chariotage conique, chariotage de reproduction unidirectionnel et multidirectionnel et chariotage longitudinal avec ou sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVJBL 12 2B
Product Number6788686
Product FamilySVJB(C)(RL) EXT

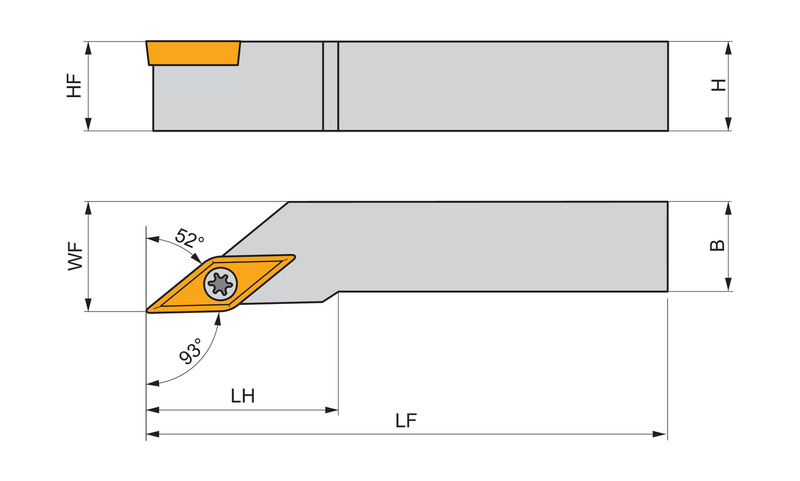

Dimensions
Functional Length — in (LF)4.5"
Functional Length — mm (LF)114.0 mm
Shank Height — mm (H)0.75 mm
Tool Information
Reference Numbers
EDP Number6788686
EAN3603602984470
File Type Download
SVJBL 12 2B — Line Drawing PDF Download
