SVJBR 16 3D
SVJBR 16 3D
SVJBR 16 3D

SVJBR 16 3D

UGC DOR6788694
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$208.00 CAD - $208.00 CAD
$208.00 CAD
$208.00 CAD - $208.00 CAD
$208.00 CAD

Vendu en lots de : 1

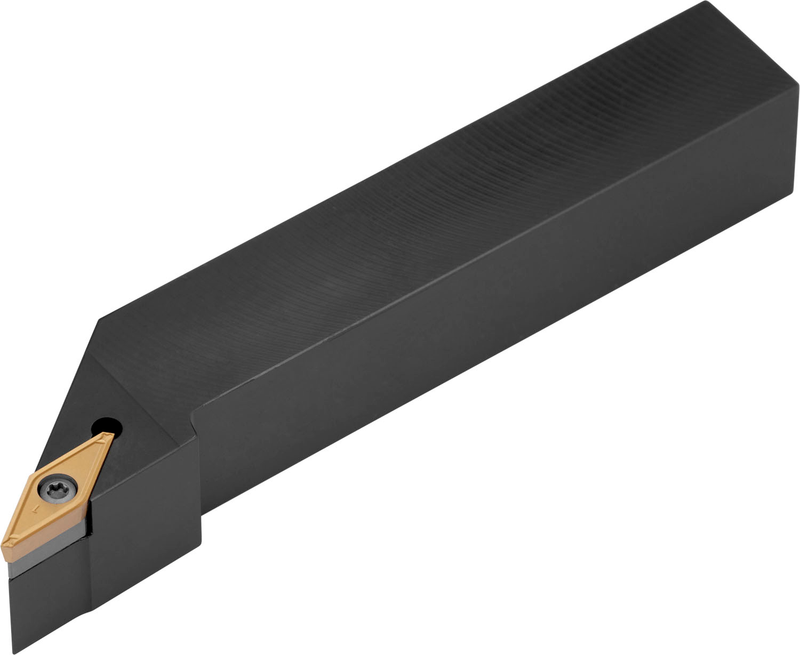

Outil de tournage à levier pour plaquette positive rhomboïde à 35° avec un diamètre de cercle inscrit de 3/8'' et 3/16'' d'épaisseur (désignation ANSI VB.. 33.), à droite, coupe latérale à 93° avec un corps déporté, hauteur de l'outil 1'' x largeur 1'' x longueur 6'' pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal avec et sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVJBR 16 3D
Product Number6788694
Product FamilySVJB(C)(RL) EXT
Dimensions
Functional Length — in (LF)6.0"
Functional Length — mm (LF)152.0 mm
Shank Height — mm (H)1.0 mm
Tool Information
Reference Numbers
EDP Number6788694
EAN3603602984555
File Type Download

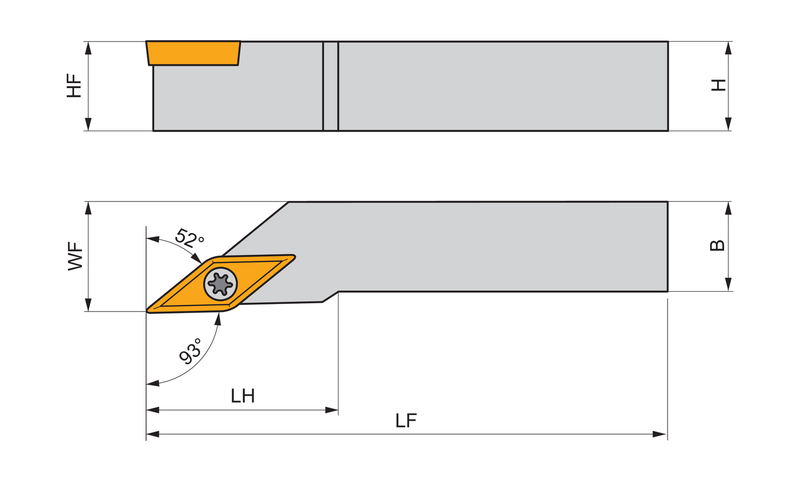

SVJBR 16 3D — Line Drawing PDF Download
