SVVBN 12 2B
SVVBN 12 2B
SVVBN 12 2B

SVVBN 12 2B

UGC DOR6788697
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$204.00 CAD - $204.00 CAD
$204.00 CAD
$204.00 CAD - $204.00 CAD
$204.00 CAD

Vendu en lots de : 1

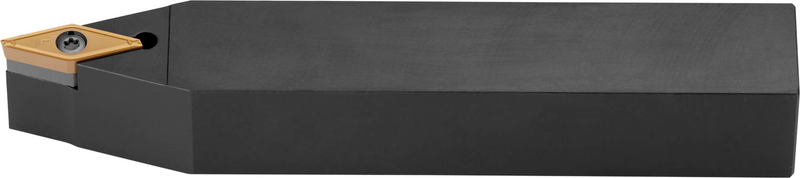

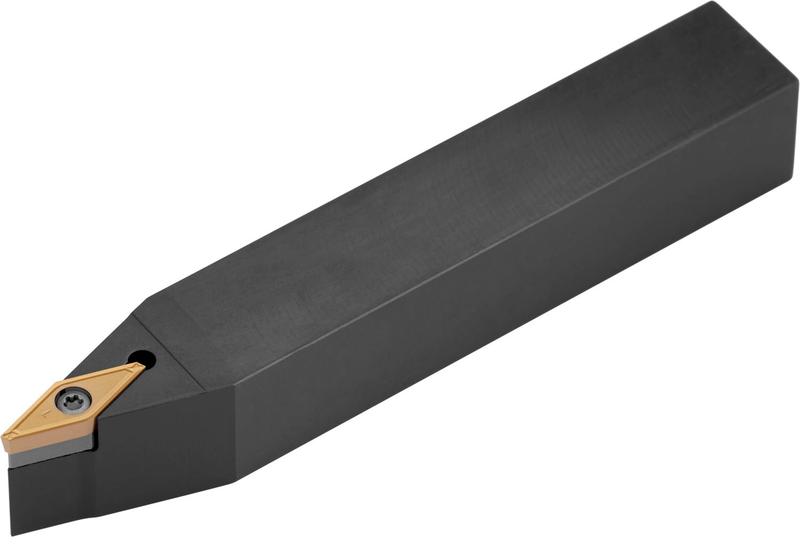

Outil de tournage à levier pour plaquette positive rhomboïde à 35°, diamètre du cercle inscrit de 1/4'', épaisseur de 1/8'' (désignation ANSI VB.. 22. ), main neutre à 72°30' d'angle d'attaque latéral avec queue droite, hauteur de l'outil de 3/4'' x largeur de 3/4'' x longueur de 4.1/2'' pour le tournage conique, le tournage de reproduction unidirectionnel et multidirectionnel et le tournage longitudinal sans épaulement

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SVVBN 12 2B
Product Number6788697
Product FamilySVVB(C)N EXT
Dimensions
Functional Length — in (LF)4.5"
Functional Length — mm (LF)114.0 mm
Shank Height — mm (H)0.75 mm
Tool Information
Reference Numbers
EDP Number6788697
EAN3603602984586
File Type Download

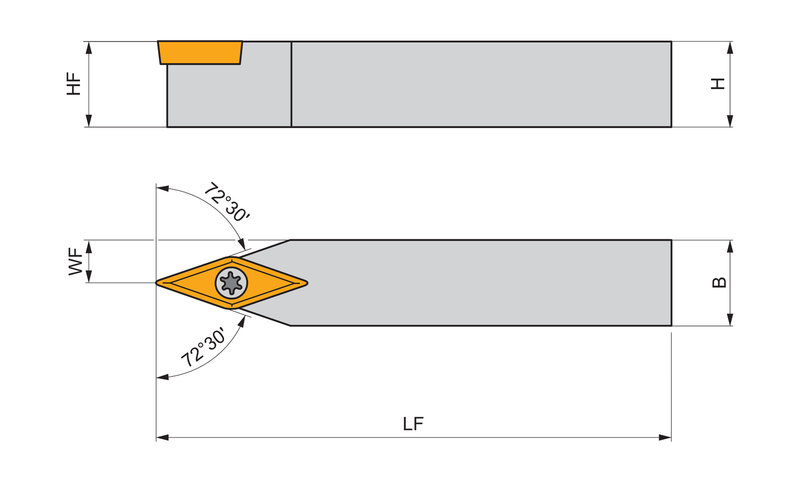

SVVBN 12 2B — Line Drawing PDF Download
